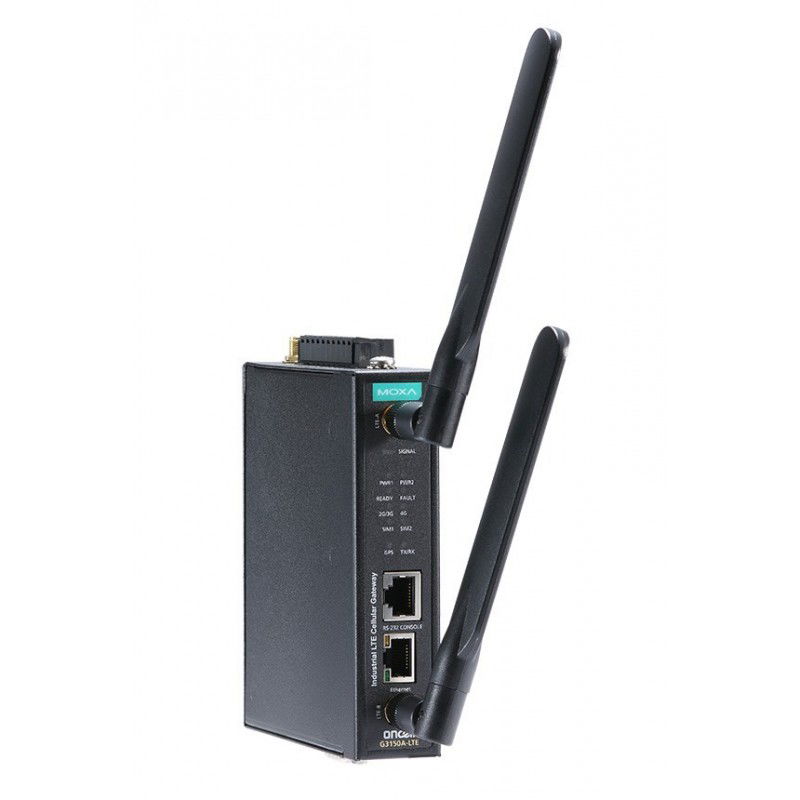

1 port industrial LTE Gateway, RS232 / 422/485, -30-70 ° C, MOXA OnCell G3150A-LTE-T

1 port LTE serial to Ethernet gateway / modem, RS232 / 422/485

GSM / GPRS / EDGE / UMTS / HSPA / LTE
Supports VPN and virtual comport
Operating temperature -30 -70 ° C
IP30
Supplied via the 12-48 VDC
DIN rail mounting (bracket supplied)

ETH1SER-GSM+LTE+
9,222.40 SEK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

1 ports LTE seriel til ethernet gateway/ modem, RS232/422/485

Andet
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, GND RS-422 Tx+, Tx-, Rx+, Rx-, GND RS-485-4w Tx+, Tx-, Rx+, Rx-, GND RS-485-2w Data+, Data-, GND
Baudrate
75 bps to 921.6 kbps
Dimensioner
126 x 30 x 107.5 mm
Driftstemperatur
-30 to 70°C
Firewall
NAT, port forwarding, IP/MAC/Port filtering
Forsyning
12 to 48 VDC
I/O
I/O interface Alarm Contact 1 relay output with current carrying capacity of 1 A @ 24 VDC Digital Inputs 2 electrically isolated inputs• +13 to +30 V for state “1” • +3 to -30 V for state “0”
Interface
Antenna Connectors: 2 SMA female, MIMO for LTE GNSS: 1 SMA (female), GPS (1575.42 MHz), GLONASS (1602 MHz) Console Port: RS-232 (RJ45). Ground Screw: M5. Reset Button: Power Reset
Materiale
Housing Metal, providing IP30 protection
Netværk
LAN: Number of Ports 1 Speed 10/100 Mbps, auto MDI/MDIX Connector 8-pin RJ45
Protokol
ICMP, DDNS, TCP/IP, UDP, DHCP, Telnet, DNS, SNMP, HTTP, HTTPS, SMTP, SNTP, ARP
Standarder
GSM/GPRS/EDGE/UMTS/HSPA/LTE
Stik
Number of Ports 1 Serial Standards RS-232/422/485, software selectable Connector DB9 male
VPN
Encryption: DES, 3DES, AES, MD5, SHA-1, DH2, DH5 Authentication: PSK/X.509/RSA OpenVPN: OpenVPN (Server / Client)Tunnel mode (routing) and TAP mode (bridge) Encryption: Blowfish CBC, DES CBC, DES-EDE3 CBC, AES-128/192/256 CBC NAT-T, PFS, DPD
Weight
492 g
