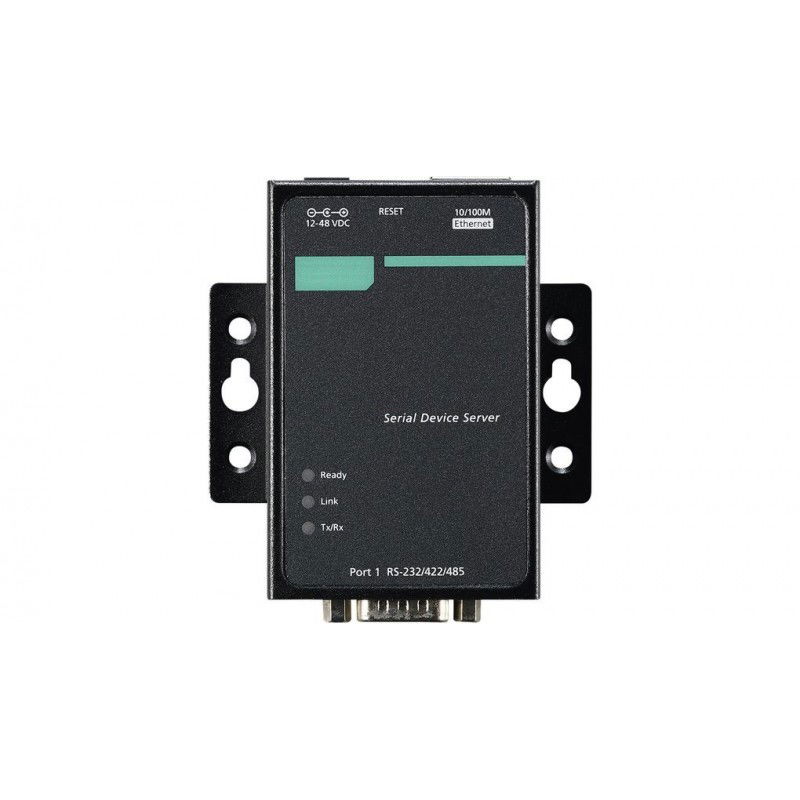

1 serial port server with RS232 or 422 or 485. Serial Device Server. Virtual COM port. Pair connection

External COM port via Ethernet and Internet
Can also provide Pair connection (back-to-back)
Small size for easy installation
Genuine COM / TTY drivers for Windows and Linux
Standard TCP/IP interface and versatile operating modes
Easy-to-use Windows multi-device server configuration tool
Built-in 15 KV ESD protection for all serial signals
SNMP MIB-II for network management
Configure via Telnet or web browser
Power supply included

2,658.15 NOK
Ekskl. moms
Quantity
Physically in stock
LÆG I KURV
Product number ETH1SER5150
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål



Ethernet Interface:
Number of Ports: 1
Speed: 10/100 Mbps, auto MDI/MDIX
Connector: 8-pin RJ45
Magnetic Isolation Protection: 1.5 KV built-in

Serial Interface:
Number of Ports: 1
Serial Standards: RS-232/422/485
Connector: DB9 male
Serial Line Protection: 15 KV ESD protection for all signals
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485: 1 KΩ, 150 KΩ

Serial Communication Parameters:
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Baud rate: 50 bps to 921.6 Kbps

Serial Signals:
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND

Software:
Network Protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP
Configuration Options: Web Console, Serial Console, Telnet Console, Windows Utility
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 x86/x64, R2/2012/2012/R2/2016/2019 ( x64)
Windows Server 2022
Embedded CE 5.0/6.0, XP Embedded
Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i
Linux Real TTY Drivers: Linux kernel 2.4.x, 2.6.x

Physical Characteristics:
Housing Metal
Weight 340 g
Dimensions Without ears: 52 x 80 x 22 mm
With ears: 75.2 x 80 x 22 mm

Environmental Limits:
Operating Temperature: 0 to 55°C
Storage Temperature: -40 to 85°C
Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements:
Input Voltage: 12 to 48 VDC
Power Consumption: 200 mA @ 12 V, 106 mA @ 24 V

Andre produkter i samme kategori:

2 port serial port server - RS232 / RS422 / RS485 over Ethernet
2 Port serial port server - Serial Device Server, RS232 / RS422 / RS485 Port over Ethernet. 2 x RJ45, 2 x DB9 male, 12 - 48VDC

2 COM ports over Ethernet, Internet
Each COM port can be RS232 or RS422 or RS485
RS232 Pin 1 - 8: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS
RS422 / RS485 4-W: Pin 1 - 5: TXD +, TXD, RXD +, RXD, GND
RS485 2-W: Pin 3 - 5: Data, Data +, GND
Baud Rate: 50 bps - 921Kbps
Data Bits: 5, 6, 7, 8
Parity: 1, 1.5, 2
Stop Bit: Odd, Even, None, Space, Mark
2 x RJ45 10 / 100mbit
Alarm: Relay output
Supply voltage: 12 - 48VDC 6.5WATT
Web Management
IP Version: IPv4 / IPv6. TCP Server, TCP Client, UDP Client
Virtual Com
Pair Connection
Supporter: XP to Win10, Server 2003, 2008, 2012
Size: 135 x 88 x 32 mm
DIN bracket

4,880.76 NOK
Item Number: ETH2SER-IC
On the way in
ADD TO CART
Quick view
Seriel portserver til EthernetforDevice servere
Seriel portserver til Ethernet

External COM port over Ethernet and Internet.
RS232 seriesport via DB9 Han, or
RS422 / 485 port via screw terminal block
Power supplied from 12 - 48VDC. Has redundant DC input.
DIN mounting

2,118.77 NOK
Item Number: ETH1SER-P
Physically in stock
ADD TO CART
Quick view

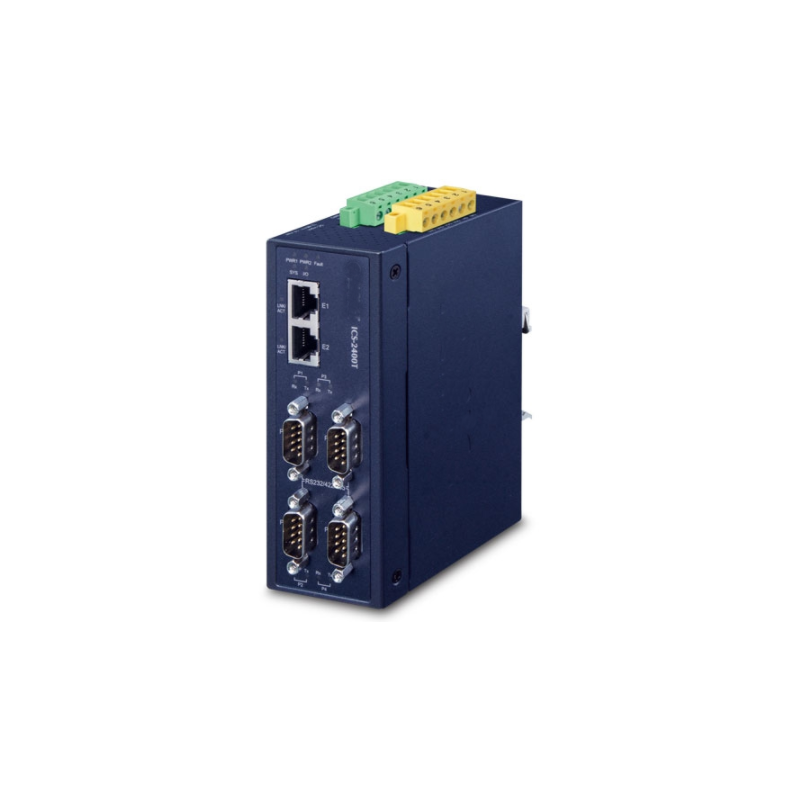

4 Port Serial Port Server - Serial Device Server, RS232 / RS422 / RS485 Port over Ethernet.
