8 ports 10/100/1000Mbps Fast Ethernet switch + 4 x 100/1000Mbps SFP slot
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
24Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input – 12~48VDC
1 Relay Output til Port Break Alarm
IP30 Aluminum kabinet
DIN-Rail og Wall Mount
Udvidet temperaturområde: -40° til 75°C

8 ports 10/100/1000Mbps Fast Ethernet switch + 4 x 100/1000Mbps SFP slot
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
24Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input – 12~48VDC
1 Relay Output til Port Break Alarm
IP30 Aluminum kabinet
DIN-Rail og Wall Mount
Temperaturområde: -10° til 70°C

10 ports 10/100/1000Mbps Fast Ethernet switch + 2 100/1000Mbps SFP slot
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
24Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input – 12~48VDC
1 Relay Output til Port Break Alarm
IP30 Aluminum kabinet
DIN-Rail og Wall Mount
Temperaturområde: -10° til 70°C

8 & nbsp; ports 10/100 / 1000Mbps Fast Ethernet switch + 2 100 / 1000Mbps SFP slot
Auto MDI / MDI-X Function
Store and Forward Switching Architecture
20Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum housing
DIN-Rail and Wall Mount
Temperature range: -40 ° to 75 ° C

8 ports 10/100 / 1000Mbps Fast Ethernet switch + 2 100 / 1000Mbps SFP slot
Auto MDI / MDI-X Function
Store and Forward Switching Architecture
20Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum housing
DIN-Rail and Wall Mount
Temperature range: -10 ° to & nbsp; 70 ° C

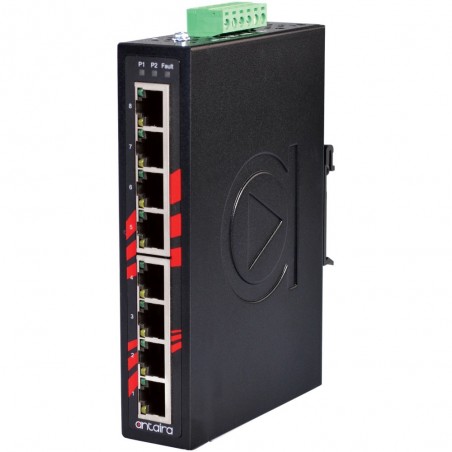

8 ports 10/100/1000Mbps Fast Ethernet switch
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
16Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input – 12~48VDC
1 Relay Output til Port Break Alarm
IP30 Aluminum kabinet
DIN-Rail og Wall Mount
Temperaturområde: -40° til 75°C

8 ports 10/100/1000Mbps Fast Ethernet switch
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
16Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input – 12~48VDC
1 Relay Output til Port Break Alarm
IP30 Aluminum kabinet
DIN-Rail og Wall Mount
Temperaturområde: -10° to 70°C

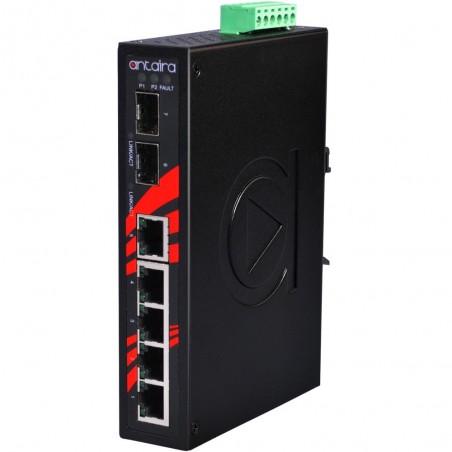

5 x 10/100 / 1000Mbps Ethernet ports + 2 x 100 / 1000Mbps SFP Slot
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane ( Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3kV
ESD Protection: 6kV
Redundant Power Input Design - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum Cabinet
DIN-Rail and Wall Mount
Temperature Range: -40 to 75 ° C

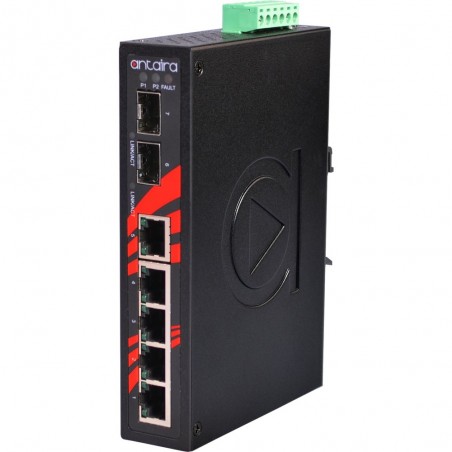

5 x 10/100 / 1000Mbps Ethernet ports + 2 x 100 / 1000Mbps SFP Slot
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane ( Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3kV
ESD Protection: 6kV
Redundant Power Input Design - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum Cabinet
DIN-Rail and Wall Mount
Temperature Range: -10 - 70 ° C

5 x 10 / 100Mbps Ethernet ports + 2 x 100 / 1000Mbps SFP Slot
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric )
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3kV
ESD Protection: 6kV
Redundant Power Input Design - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum Cabinet
DIN-Rail and Wall Mount
Temperature Range: -40 - 70 ° C

5 x 10 / 100Mbps Ethernet ports + 2 & nbsp; x 100 / 1000Mbps SFP Slot
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric )
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3kV
ESD Protection: 6kV
Redundant Power Input Design - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum Cabinet
DIN-Rail and Wall Mount
Temperature Range: 0 - 70 ° C

5 x 10/100 / 1000Mbps Ethernet ports + 1 x 100 / 1000Mbps SFP Slot
Auto MDI / MDI-X Function
Store and Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3kV
ESD Protection: 6kV
Redundant Power Input Design - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum Cabinet
DIN-Rail and Wall Mount
Temperature range: -40 ° to 75 ° C

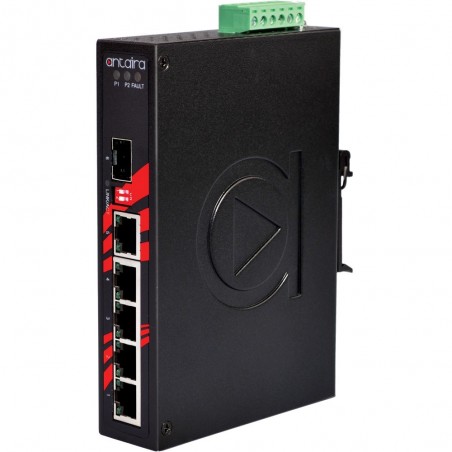

5 x 10/100 / 1000Mbps Ethernet ports + 1 x 100 / 1000Mbps SFP Slot
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3kV
ESD Protection: 6kV
Redundant Power Input Design - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum Cabinet
DIN-Rail and Wall Mount
Temperature range: -10 ° to 70 ° C

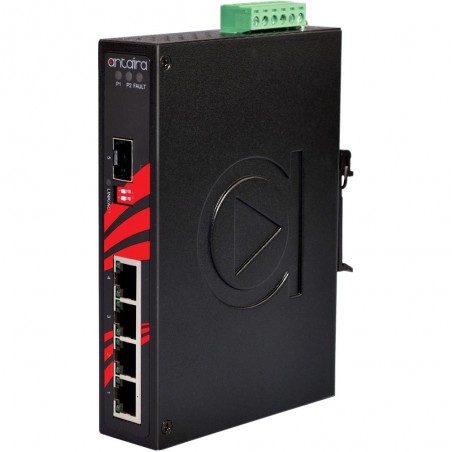

4 x 10/100 / 1000Mbps Ethernet ports + 1 x 100 / 1000Mbps SFP slot
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric )
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3kV
ESD Protection: 6kV
Redundant Power Input Design - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum Cabinet
DIN-Rail and Wall Mount
Temperature range: -40 ° to 75 ° C

4 x 10/100 / 1000Mbps Ethernet ports + 1 x 100 / 1000Mbps SFP Slot
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric )
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3kV
ESD Protection: 6kV
Redundant Power Input Design - 12 ~ 48VDC
1 Relay Output to Port Break Alarm
IP30 Aluminum Cabinet
DIN-Rail and Wall Mount
Temperature range: -10 ° to 70 ° C

5 ports 10/100/1000Mbps Fast Ethernet switch
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input – 12~48VDC
1 Relay Output til Port Break Alarm
IP30 Aluminum kabinet
DIN-Rail og Wall Mount
Udvidet temperaturområde: -40° to +80°C

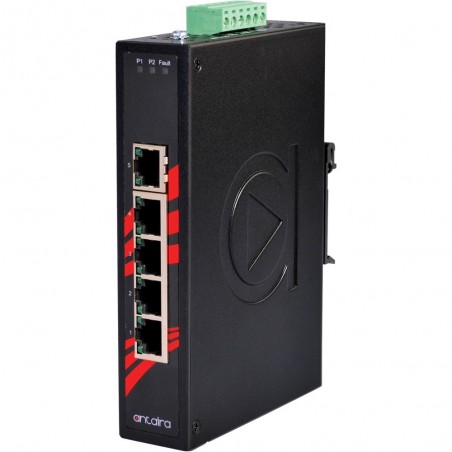

5 ports 10/100/1000Mbps Fast Ethernet switch
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input – 12~48VDC
1 Relay Output til Port Break Alarm
IP30 Aluminum kabinet
DIN-Rail og Wall Mount
Temperaturområde: -10° to 70°C

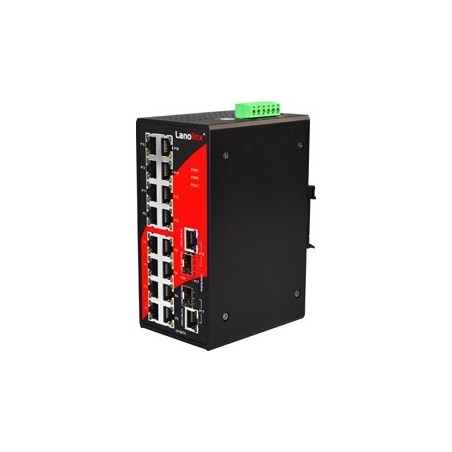

16 ports 10/100Mbit + 2 ports 10/100/1000Mbit/mini-GBIC Combo
7.2 Gbps Back-Plane (Switching Fabric)
Store-and-Forward Switching Architecture
1 Mbits Packet Buffer
8K MAC Address Table
Wide-Range Redundant Power Design 12 - 48VDC
Transientbeskyttelse 3.000 VDC på Power Line
6.000 VDC Ethernet ESD Protection
IP30 rpbust aluminum kabinet
DIN-Rail eller Panel monterbar
