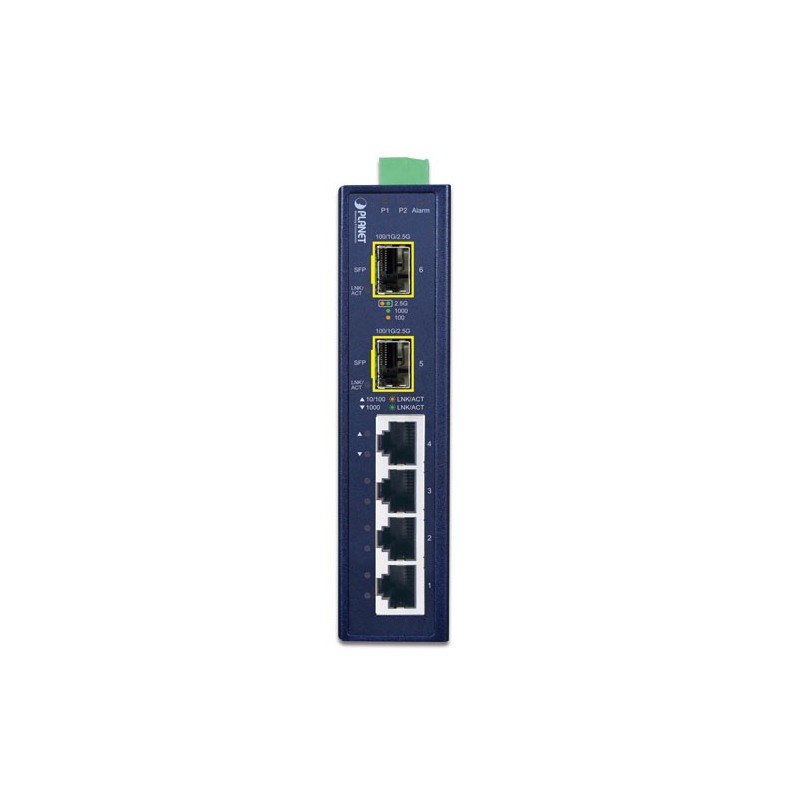

6 port 10/100/1000Mbit switch 4 x RJ45 + 2 x SFP, DIN, Unmanaged, 12-48VDC

Unmanaged Gigabit industriswitch med 4 x RJ45 10/100/1000
2 x SFP - 100/1000Mbit
12 - 48VDC, 7,2Watt

ESW6G2F
1,900.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

En høj ydeevne sikres af de understøttede netværksteknologier, der er beregnet til at sikre en stabil drift af netværkstrafik (broadcast storm filtering og flow control). Switchen er beregnet til industri. Den er bygget i aluminiumskabinet, indeholder en backup strømindgang, har et stort driftstemperaturområde og en relæudgang til alarmering skulle der opstå fejl. Beregnet til montering på DIN skinne.

1000 MAC adresser, 1 Mbit buffer

Dimensioner
32 x 135 x 97 mm (H x B x D)
Driftstemperatur
-40° til +75° C
Fiber
2 x 100 eller 1000 Mbit SFP lyslederporte
LED
Indikation af on/off, link og aktivitet med lysdioder
Porte
4 x 10/100/1000 Mbit porte med RJ45-stik der har automatisk detektering af lige/krydset kabel

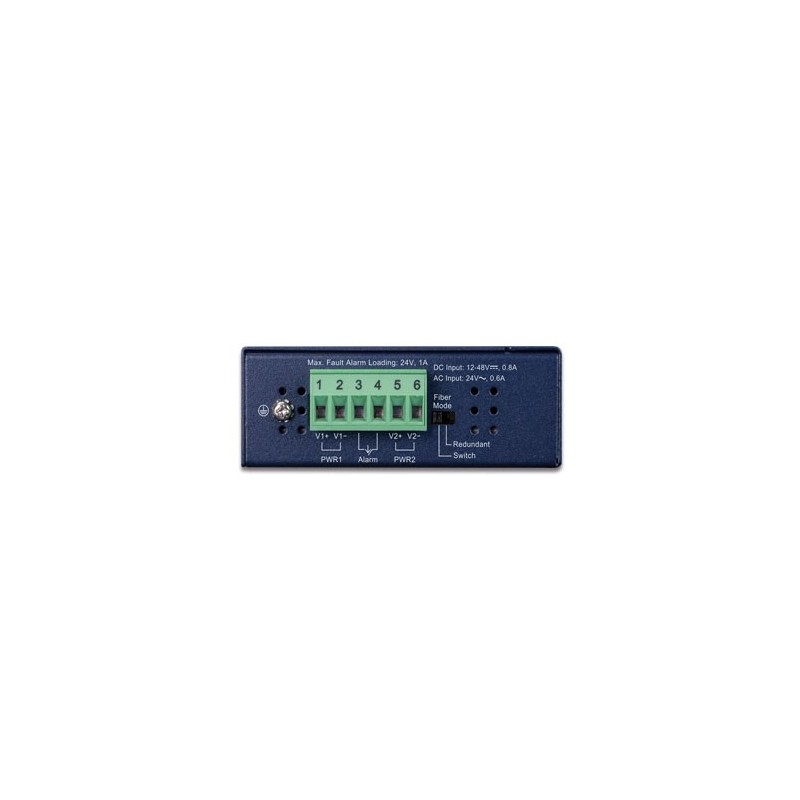

Strømforsyning
Redundant indgang til strømforsyning; 2 x terminalblok til 12 ~ 48 VDC med polaritetsbeskyttelse. Bruger maks. 7,2 Watt
Tilbehør
Leveres med DIN skinnebeslag, vægbeslag, manual på CD og quickguide
