6 ports Gbit switch 4 x RJ45 + 2 x SFP, DIN - Unmanaged, 12-48VDC
Unmanaged Gigabit industriswitch med 4 x RJ45 10/100/1000
2 x SFP - 100/1000Mbit
12 - 48VDC, 7,2Watt

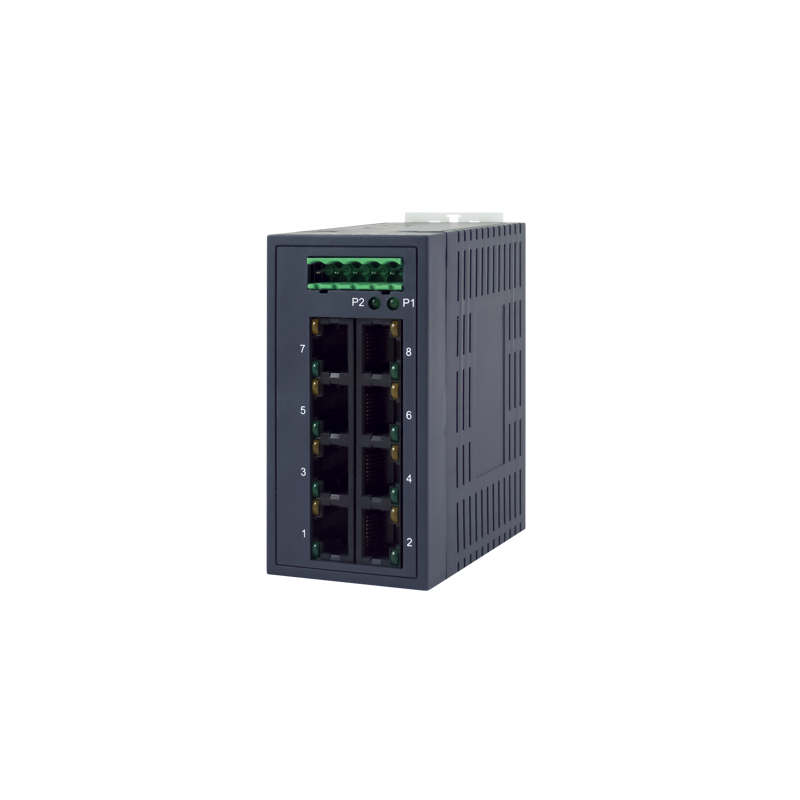

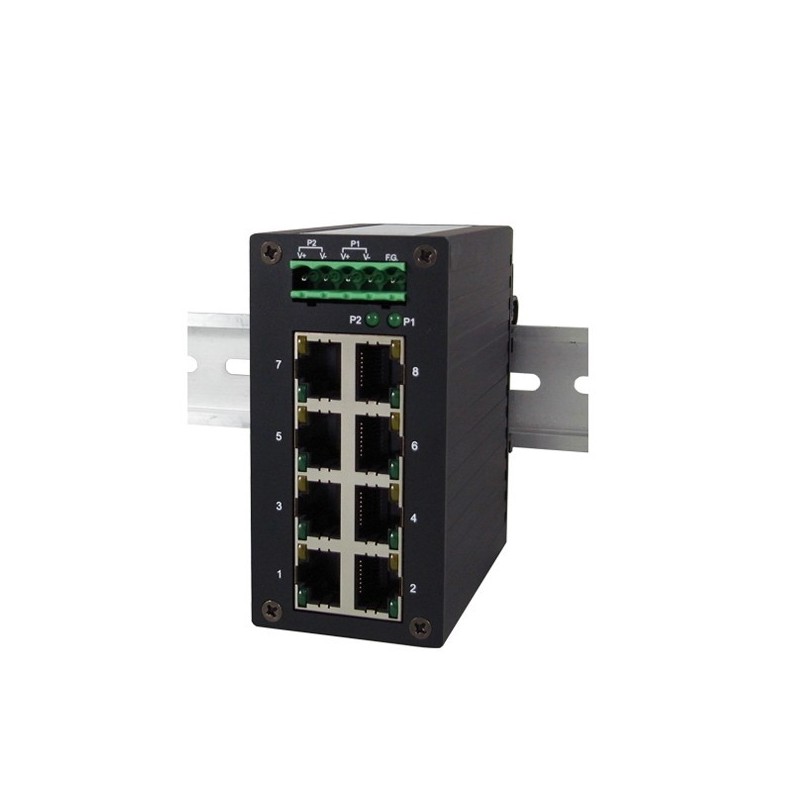

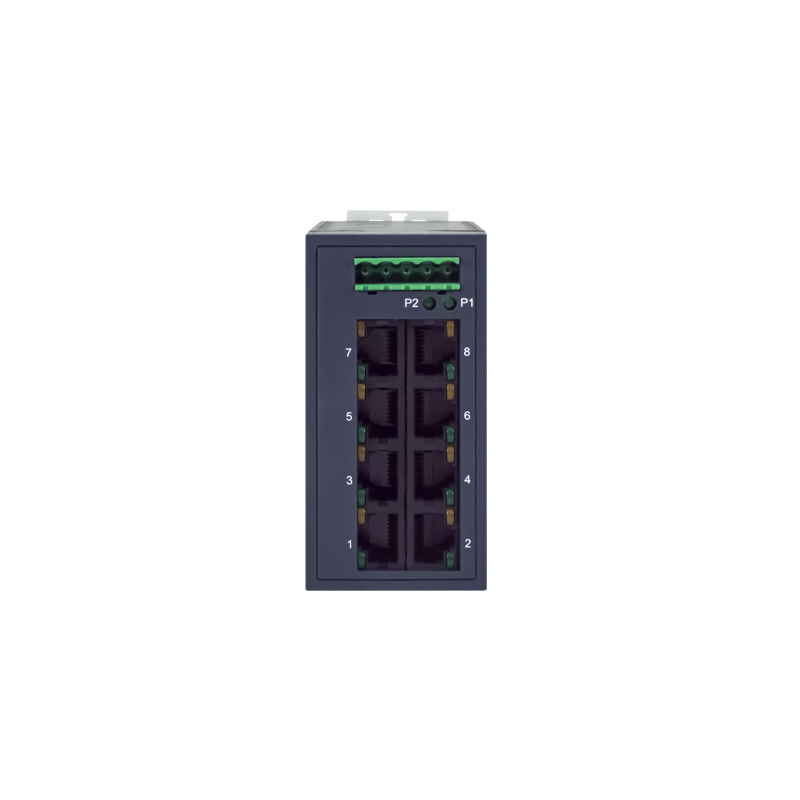

Unmanaged 8 ports industry switch & nbsp;
8 x 10/100 / 1000Mbit with RJ45
IP30 -Set metal housing
9 - 48VDC, 4Watt - Redundancy PSU input
8 ports industri Ethernet switch til DIN-skinne montering. Switchen er beskyttet mod støv, har stort temperaturområde og redundant strømforsyningsindgang. Det er derfor ideel til anvendelse i barske produktionsmiljøer, hvor nettets driftssikkerhed er vigtig.
Unmanaged Gigabit industriswitch med 4 x RJ45 10/100/1000
2 x SFP - 100/1000Mbit
12 - 48VDC, 7,2Watt
Managed switch with Gigabit ports
8 x 10/100 / 1000BASE-T RJ45 ports with PoE +
Up to 36 watts for each PoE port
Total PoE power is 240Watt
2 x 100 / 1000BASE-X mini-GBIC / SFP
IGMP Snooping (Multicast)
Operating temperature: -20°C to 70°C
Can be wall mounted, magnetic wall mounted or DIN rail mounted
Supply voltage: 48-58DCV 5.7A max input (PSU not included)
Dimensions: 180 x 140 x 24.4mm
Weight: 686 grams
Managed 8 + 2 Ports Gigabit PoE+ Switch
4 x RJ45 ports are up to 2.5Gbps with PoE++ (95W)
4 x RJ45 ports are up to 1Gbps with PoE+ (36W)
PoE Power Budget Is 240 Watts
with PoE insulation
2 x SFP slot for 1G, 2.5G and 10Gbit SFP module
RJ45 type RS232 console interface for switch control
up to 95W to 802.3BT / POH units
Detects automatic PoE Suitable devices (PD)
IGMP Snooping
Link Aggregation
Cyper Security
PoE Up to 100 meters
Dim: 330 x 200 x 45 mm
Supply voltage: 100 - 240vac
Managed 10/100/1000Mbit Robust Industrial Switch
Vibration Safe and dust proof
M12 5 Pin Coded connector
with automatic Bypass for next switch if failure
IEEE 1588v2 Precision Time Protocol (PTP)
PTP is time synchronization in infrastructure
Modbus TCP/IP to SCADA
SMTP / SNMP Trap - generates Email Alarm
IGMP and MLD Snooping for Multicast
VLAN Routing (Layer 3)
CyperSecurity Minimizes safety risk / attacks
Redundant Ring, Fast Recovery
Supply voltage: 9 - 48VDC Redundant Input
Dim: 245 x 140 x 25 mm
Operating temperature: -40 - +75°C
DIN bracket , wall bracket
Weight: 1kg
