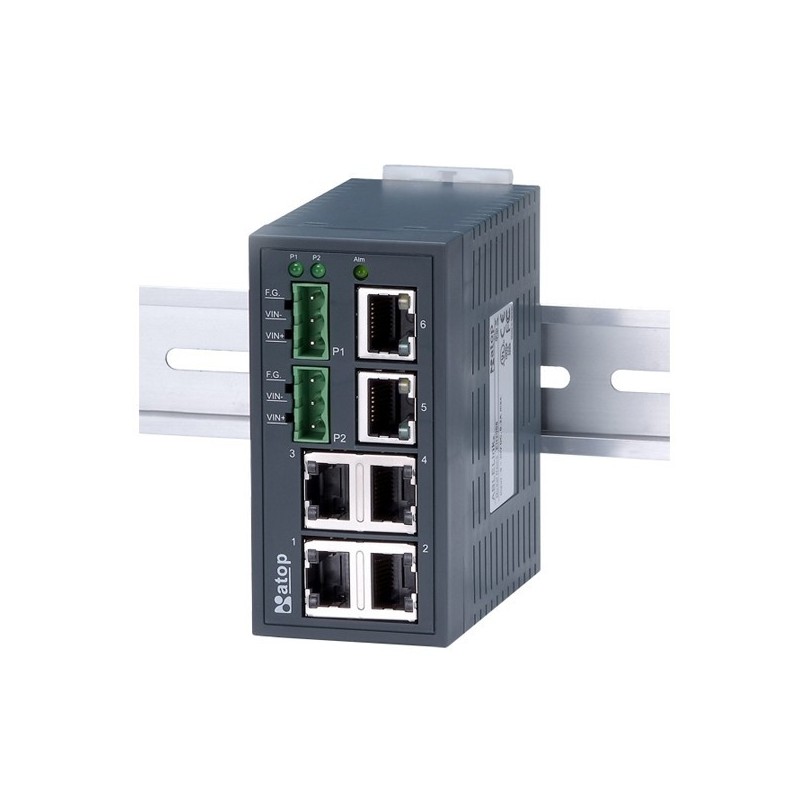

6 port 10 / 100Mbit switch RJ45, unmanaged, 9-30VDC redundant
Unmanaged 6 port industrial switch
6 x RJ45 10 / 100Mbit
Redundant PSU input
$123.42
Excl. VAT
Quantity
Physically in stock
Product number ESW6I-A
Specifications
Andet | Broadcast storm filter, automatisk detektering af lige/krydset kabel |
---|---|
Dimensioner | 90 x 45 x 80 mm (H x B x D) |
Hastighed | 10/100 Mbps |
Indikatorer og kontakter | On/off, link og aktivitet |
IP-Tæthed | IP30 |
Miljø | 0 – 60°C |
Montering | DIN-skinne |
Porte | 6 x RJ45 |
6 ports industri Ethernet switch til DIN-skinne montering. Switchen er beskyttet mod støv, har stort temperaturområde og redundant strømforsyningsindgang. Det er derfor ideel til anvendelse i barske produktionsmiljøer, hvor nettets driftssikkerhed er vigtig.
