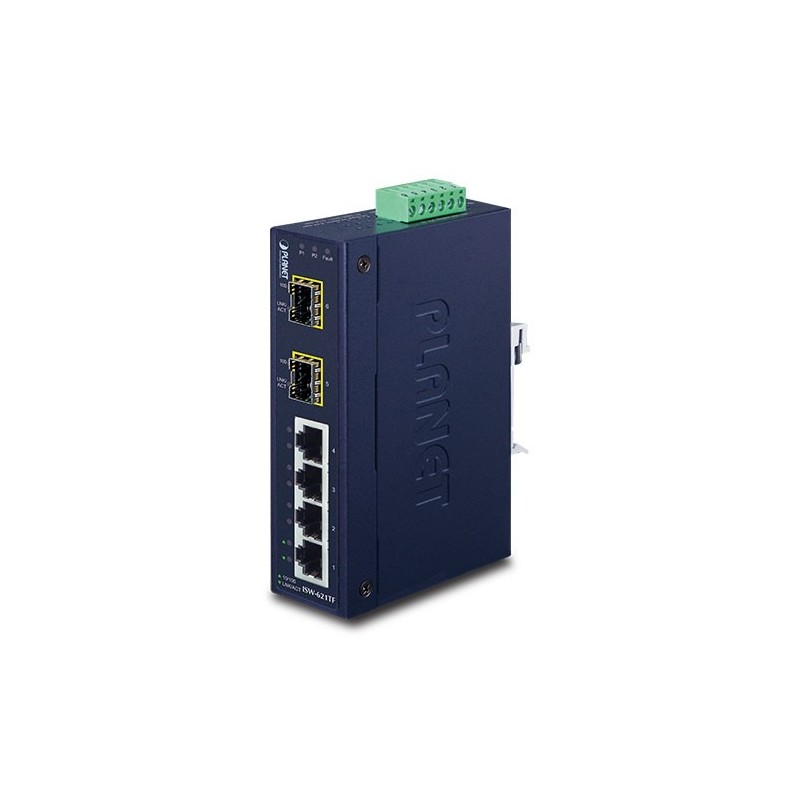

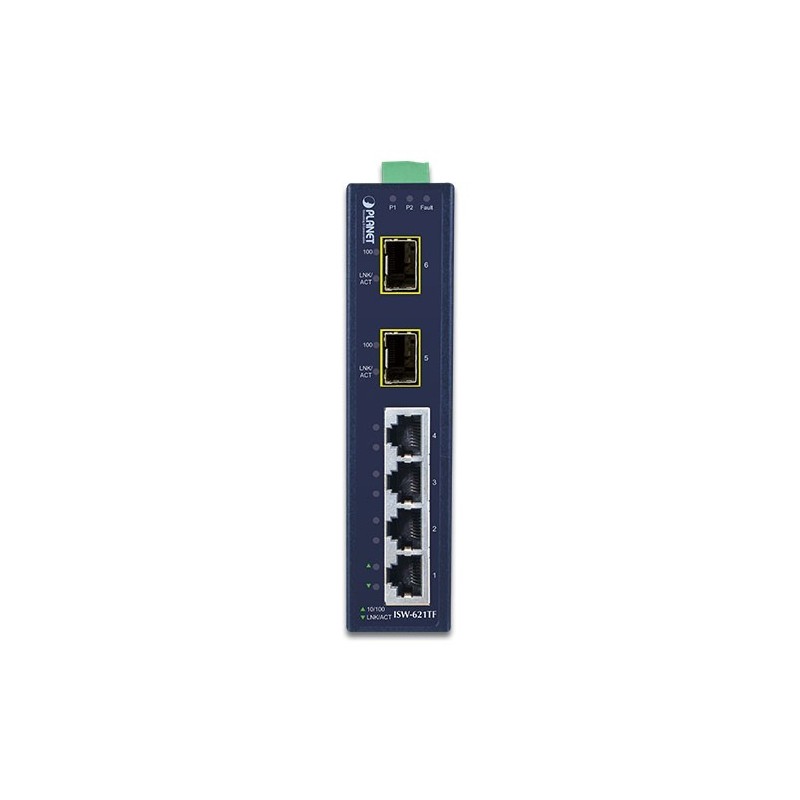

6 ports switch 4 x 10/100, 2 x 100base SFP - Unmanaged, 12-48VDC

Unmanaged Industriswitch med 4 x RJ45 10/100Mbit
2 x SFP - 100Mbit
12 - 48VDC, 16Watt

772.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number ESW6SFP2
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -40° til +75° C
Fiber 2 x 100 Mbit SFP
LED Indikation af on/off, link og aktivitet med lysdioder
Porte 4 x 10/100 Mbit porte med RJ45-stik der har automatisk detektering af lige/krydset kabel

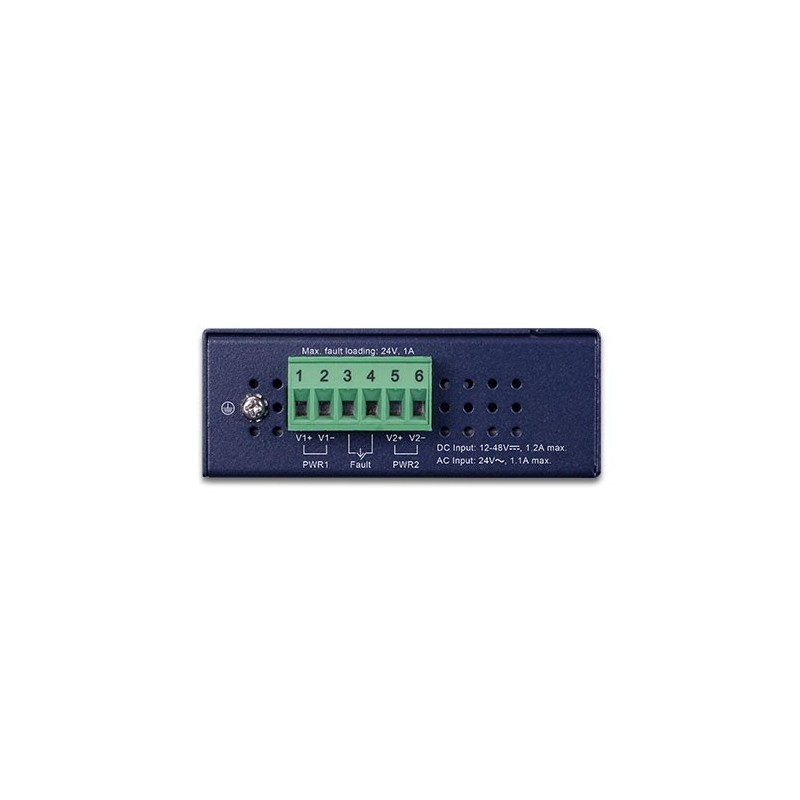

Strømforsyning Redundant indgang til strømforsyning; 2 x terminalblok til 12 ~ 48 VDC med polaritetsbeskyttelse. Bruger maks. 16 Watt
Tilbehør Leveres med DIN skinnebeslag, vægbeslag, manual på CD og quickguide
Dimensioner 32 x 135 x 97 mm (H x B x D)

En høj ydeevne sikres af de understøttede netværksteknologier, der er beregnet til at sikre en stabil drift af netværkstrafik (broadcast storm filtering og flow control). Switchen er beregnet til industri. Den er bygget i aluminiumskabinet, indeholder en backup strømindgang, har et stort driftstemperaturområde og en relæudgang til alarmering skulle der opstå fejl. Beregnet til montering på DIN skinne.

ESW6SFP2 understøtter både single- og multimode alt afhængig af hvilken type SFP-modul der benyttes.

2000 MAC adresser, 1 Mbit buffer

100Mbit SFP module 100Base-FX, Multi Mode, LC. Mini GBIC multi mode
100Mbit SFP module 100Base-FX, Multi Mode, LC (1310nm), 2km, -40 ~ +75°C

100Mbit SFP multimode optical transceiver
For LC fiber cable
1310 nm
Up to 2 km
Operating temperature: -40 - +75°C

505.00 kr
Item Number: CNV-SFP100M+WT
On the way in
ADD TO CART
Quick view
