Modularize mechanical design provides flexible product configuration and easy maintenance

Touch screen for interactive application

Available with auto-brightness sensor offers application in day and night

VGA connector (on request AV,SV,AV-Looping)

Complete custom design/solution for OEM customers

Glass Surface

Black Anti-Glare, low reflection coating

Aspect Ratio4 : 3 Size17"

Active Area337.92(H) x 270.34(V) mm

Pixel Pitch0.264(H) x 0.264(V) mm

Native Resolution1280x1024

Colors16.7 M

Bright.(typ)1000Contrast800 : 1Response Time≤ 5 ms

Viewing Angle (H / V)170 / 160

LED backlight, Long life, 35,000 hrs (typ)

0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)

Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz

26" DNVGL-CG-0339, IACS-E10, IEC60945 4th marine monitor
350 nits
PCAP touch
Fanless
IP66 on the front
Resolution: 1920 x 1200 - 16:10 format
Active display area: 550 x 344 mm
1 x VGA
1 x HDMI 1.4
1 x DVI-D
Power supply: Terminal block 24VDC
DC input: 9 - 36VDC / 55W typical
Mounting: Panel (Flush) mount with IP66*, VESA100, Bracket mounting
Vibration: 0.7g@DNVGL CG-0339 (Class A)
Shock: 15G, 11ms duration
Optional: Remote control via RS232 D-SUB 9P
DIM: Day Mode, Dusk Mode, Night Mode
Dimensions: 621 x 433 x 86 mm
Cut out dimensions: 596 x 406 mm
Weight: 12.8 kg

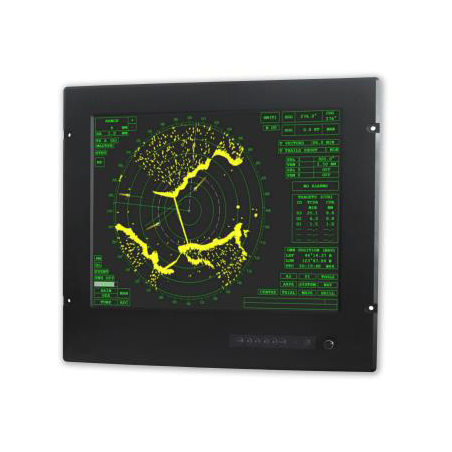

19 "Alminium Marine Monitor with LED Backlight
Certified: IEC 60945 BV Marine and IACS-E10 Approval Pending
1280 x 1024 - 5: 4
1000 Nits
IP65 Front
2 x VGA
2 x DVI
3 x Composite
1 x RS232
1 x USB
Resistive touch - USB
Input power 9-36V DC
Mount: VESA, flush Mount

19 "DNV2.4, IEC60945 Marine Monitor Without Touch
400 Nits
IP66
Resolution: 1280x1024 - 5: 4 Format
Active Display Area: 376.32 (H) x 301.06 (V) mm
1 x composite (RCA phono)
1 x DVI-D
1 x S-Video (SVHS)
1 x RBG (D-SUB)
Power Supply: Terminal block 24V DC
Mounting: Panel (Flush) mount with IP66 *, VESA, Bracket mounting
Anti vibration: 5Hz - 500Hz / 1Grms / 3Axis
Anti shock: 15G, 11ms duration
Optional: AC power signal Std IEC Inlet
Optional: Touch Screen D-SUB 9P Female
Optional: Remote Control via RS232 D-SUB 9P

22" (16:9)
Resolution: 1920x1080
Inputs: VGA, HDMI
Resistive Touch (Option: Projective Glass, SAW) USB. (option: RS232)
OSD
Operating temperature: 0 ~ 50℃
Supply voltage: 12Vdc
Option: 1000 nits

15.6 "TFT LCD monitor with LED backlight
Readable in strong sunlight - 1000 nits
1 x VGA
1 x DVI
1 x HDMI Kabel Resolution 1366 x 768 - 16: 9
Capasitive touch - USB
Contrast: 500: 1
IP66
Panel-mount and VESA mount
Supply: 100-240VAC to DC12V / 4.16A included
Operating Temperature: 0 to 50

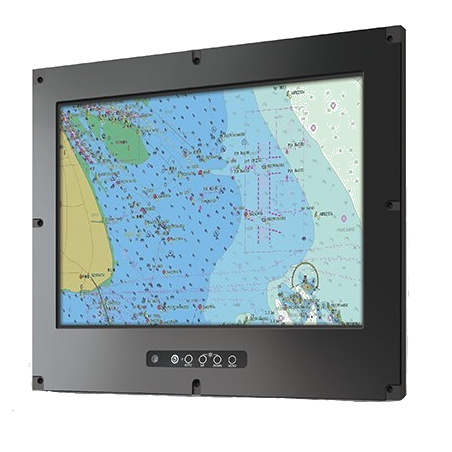

19" LED Screen
ECDIS Color Screen
IP66 Front
IP54 Back
1 x VGA
1 x Jack Audio
1 x 9-36V DC Power Supply
Widescreen
Anit-shock and vibration design
LED background lighting
Mounting: VESA 200/400
Optional: Built-in switch
VERSA 200/400

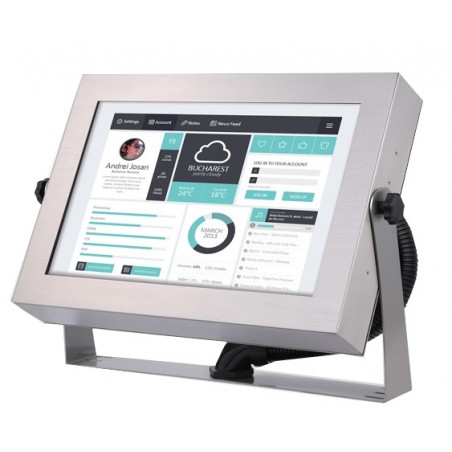

15" Steel Cabinet Monitor, 360° IP66 Close Cabinet
Pipe Cable Management - Stainless Steel Cabinet with VESA 100
LED Backlight Adjustable
1 x VGA Input
1 x Jack Jack
1 x Supply 12VDC
LCD Screen in 4:3 Format, 250nits
Temperature: 0°C ~ + 50°C
Optional: Built-in Touch (Resistive, Capacitive, infrared touch)

19" TFT marine touch monitor
LED backlight
250 Nits
1 x HDMI, 1 x VGA, 1 x Composite, 1 x Audio3.5 Jack connector
Anti-vibration: 5 - 500 Hz/1 Grms PTP
Anti Shock: 15G/Peak (11ms)
AC power standard IEC Inlet 100-240V AC
Power On/Off via front buttons
VR Brightness Knob adjustment
Power Mode Status LED indicator
On Screen Display control (OSD)
Flush mount, VESA mount
Optional: Available with Capacitive, SAW, IR Touch. Call to hear more
Optional: AR Hardness Glass: 3mm Anti-Reflective Protect Glass
Optional: DC Power: Isolate 12V/24V/48V/125V DC Power
Optional: SR-BKT: Stand & Roof Mounting Bracket
Optional: RT-BKT: Rotary Plate Robust Bracket
Optional: SV-BKT: Sun-Visor Bracket

19 "TFT Marine Monitor With IP65, No Touch
LED Backlight
250 Nits
1 x HDMI, 1 x VGA, 1 x Composite, 1 x Audio3.5 Jack Connector
Anti- Vibration: 5 - 500 Hz / 1 Grms PTP
Anti Schock: 15G / Peak (11ms)
AC Power Standard IEC Inlet 100-240V AC
Power On / Off Via Front Buttons
VR Brightness Knob Adjustment
Power Mode Status LED Indicator
On Screen Display Control (OSD)
Flush Mount, VESA Mount
Optional: AR Hardness Glass: 3mm Anti-Reflective Protect Glass
Optional: DC Power: Isolate 12V / 24V / 48V / 125V DC Power
Optional: SR-BKT: Stand & Roof Mounting Bracket
Optional: RT-BKT: Rotary Plate Rugged Bracket
Optional: SV-BKT: Sun-Visor bracket

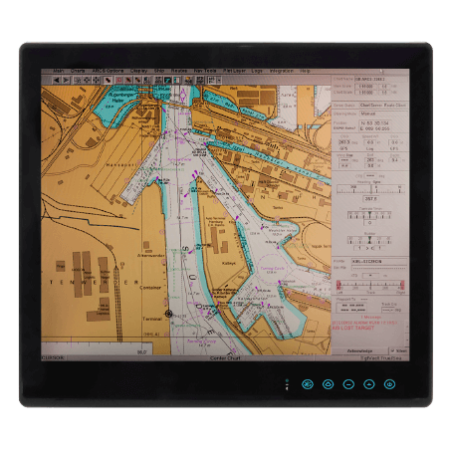

19" DNVGL-CG-0339, IACS-E10, IEC60945 4th marine monitor
400 nits
Fanless
IP66 on the front
Resolution: 1280 x 1024 - 5:4 format
Active display area: 376.32 (H) x 301.06 (V) mm
1 x VGA
1 x HDMI 1.4
1 x DVI-D
Power supply: Terminal block 24VDC
DC input: 9 - 36VDC / 45W typical
Mounting: Panel (Flush) mount with IP66*, VESA100, Bracket mounting
Vibration: 0.7g@DNVGL CG-0339 (Class A)
Shock: 15G, 11ms duration
Optional: Remote control via RS232 D-SUB 9P
DIM: Day Mode, Dusk Mode, Night Mode
Dimensions: 429 x 382 x 73 mm
Weight: 9.8 kg

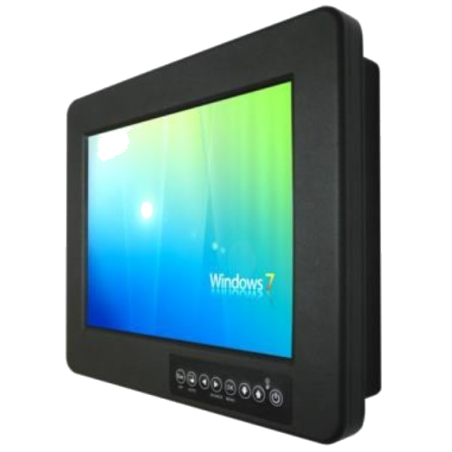

10.4 "Marine TFT LCD MONITOR
Full IP67
Resolution 1024 x 768 - 4: 3 Format
1 x VGA
1 x DC Power
1 x S-Video
1 x Composite
1 x J2: Signal Pins (D38999 / 24WD35PN) For military connector
5-wire resistive touch screen
Power input: 12-36V DC Input
For VESA and panel mounting

19 "TFT monitor with LED back light
ECDIS color display
IP66 Front
IP54 Backside
1 x VGA
1 x Jack

1 x 9-36V DC power supply < br> Wide Screen
Anit-shock and Vibration Design
Mounting: VESA 100
Optional: Built-in Touch

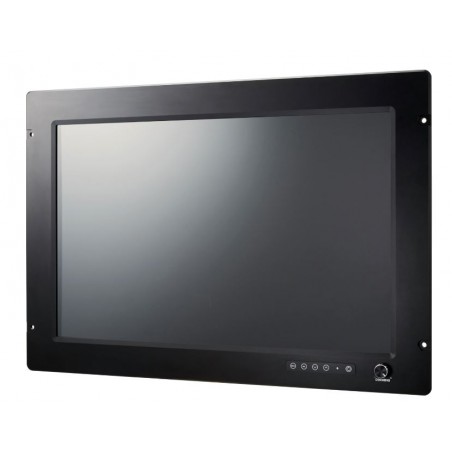

27" 16:9 Wide TFT LCD
1920 X 1080 @ 60Hz
Brightness: 300CD / ㎡
Option: Dimming: 3 ~ 100%
1 x DVI-D
1 x RGB input
1 x HDMI
Mounting bracket, Stand (Desktop)
Aluminum dimension
Operation: 0 ℃ To + 50 ℃
690(W) x 70(D) x 460(H) mm
(710 (W) X 79 (D) X 446 (H) mm)
DNV, IEC60945 4th, IACS E-10, IEC60529

19 "TFT IP66 Monitor With Steel Cabinet
Resolution 1280 x 1024 - 5: 4 Format
350 Nits (kan leveres med 1000Nits, (Contact our sales depatment)
1 x VGA M12, 12-pin Cable With Waterproof connector
1 x Waterproof HDMI With waterproof connector
1 x OSD on backside
1 x M12 for USB touch with waterproof connector
1 x Power input 9-36V DC, with touch on / off button
VESA 75 x 75 YOKE mounting Option: Available with capacitive touch with USB interface

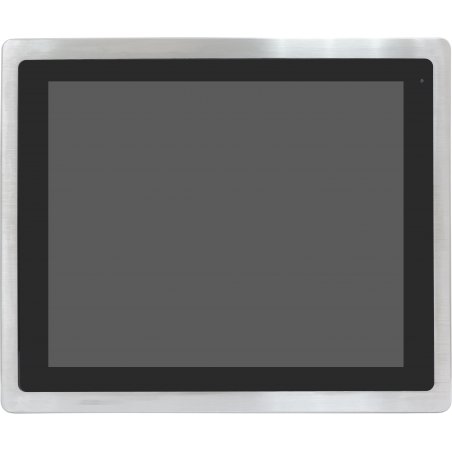

17 "waterproof IP66 all around closely monitor steel cabinet
Projected Capacitive Touch (USB)
Resolution 1280 x 1024 to 5: 4 format
350 Nits
1 x VGA M12, 12-pin cable with waterproof jacket
1 x waterproof HDMI with waterproof jacket
1 x buttons on the back
1 x M12 USB touch with waterproof jacket
1 x Power input 9-36V DC, with on / off button on the side
VESA 75 x 75 mounting
Option acquisitions: available with capacitive touch with USB interface
Option acquisitions: available with 316 stainless steel cabinet

17" TFT monitor with LED back light
ECDIS color display
IP66 Front
IP54 Back
Optional: built-in touch (Resistive, capacitive, infrared touch)
1 x VGA
1 x Jack plug
1 x 9-36V DC power supply
Wide screen
Anit shock and vibration design
LED backlight
Mounting: VESA 75
