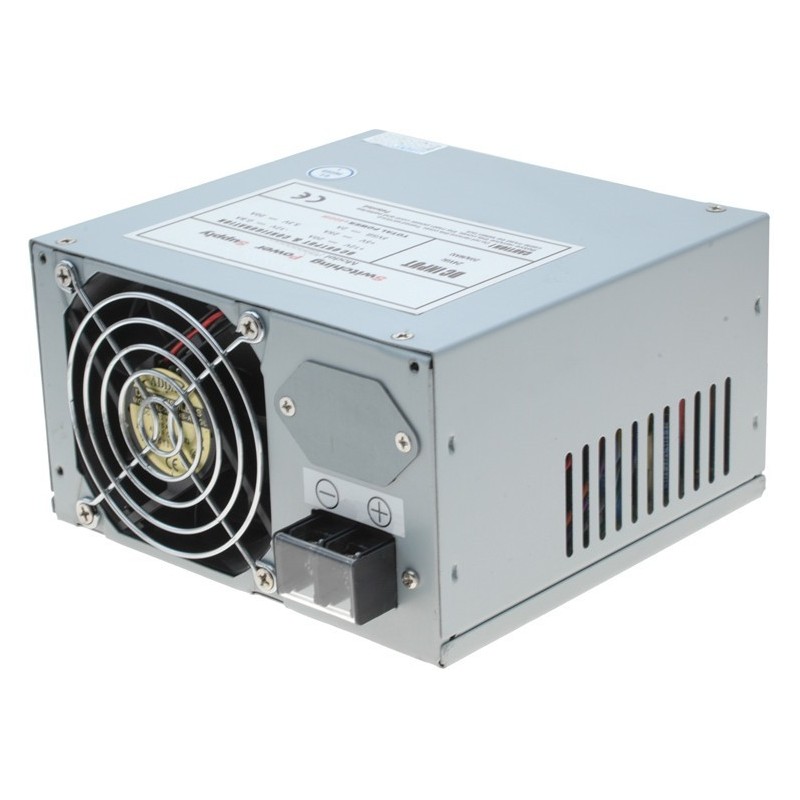

24VDC 400W ATX PSU

400 W ATX til 24 VDC

PS400ATX24V
2,841.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Disse strømforsyninger kan benyttes, hvor den ordinære netspænding (230 VAC) ikke er tilgængelig - f.eks. i biler eller på skibe. Der kan leveres tre typer med +12 V, +24 V eller -48 VDCindgang. Er forsynet med EMI filter.
+5 V22 A
-12 V0,8 A
+12 V22 A
+3,3V22 A
​-5 V-

Input
18 ~ 36 V
Maks. effekt
400 W
Pin
20+4
