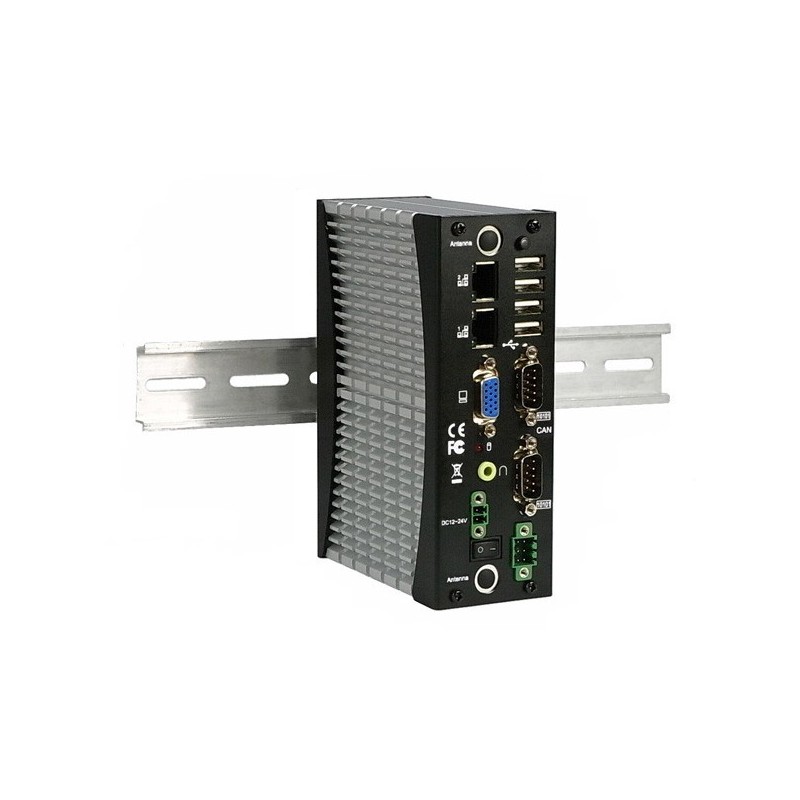

Embedded Industrial mini PC 3½", Atom N2600, CF, 4 x USB, 2 x RS232 CAN bus

Atom 1.6GHz CPU N2600
2GB RAM DDR3, So-DIMM socket
​1 x RS232/422/485 with DB9 connector
1 x RS232/422/485/CAN with DB9 connector
VGA
4 x USB 2.0
2-in/2-out digital
2 x 10/100/1000 RJ45 ethernet
CF
Mini SIM socket
2.5" SSD/HDD slot (Hard disk NOT included)
DIN rail mounting
9~32 VDC
Dim: 145 x 102 x 50 mm
Temp: 0 - +50°C
OS support: Windows 7, XP Embedded and Linux

IPC-EMDIN-ATOM+
8,639.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Industrial mini PC
3½” format
Suitable for industrial automation tasks
Can DIN rail be mounted or panel mounted
Other models/specifications can be supplied
We offer to assemble and install software as desired. Contact our sales department.

CPU
Intel Atom-N2600 1.6GHz, 1MB L2 cache (Intel dual core CPU)
Chipset
NM10
Drev
Kan monteres med 2½” SATA harddisk. 1 x CFast Card type I/II sokkel 1 x SD sokkel (Klasse 6)
Hukommelse
1 x 200-pin DDR3-RAM SO-DIMM. Monteret med 2GB RAM (maks. 2GB)
I/O
1 x Digita I/O tilslutning via 6 pin terminalblok. Tænd/sluk knap, 1 x Power LED, 1 x HDD LED 1 x PCIe Mini-card interface til trådløs eller GPRS modul
Lyd
1 x lydudtag via jack-stik til hovedtelefon
Montering
Mulighed for DIN skinne montage. Eller VESA 75*75 panel montering
Netværk
2 x 10/100/1000 Mbit m/RJ45-stik Realtek RTL8111F
OS SUPPORT
Understøtter Windows 7, XP Embedded og Linux
Porte
1 x RS232/422/485 med DB9-stik. 1 x RS232/422/485/CAN med DB9-stik
Strømforsyning
9~32 VDC, 35V A via 2 pin skrueterminal (benyt DC12V/5A-R-Q)
VGA
1 x VGA analog med DB15 tilslutning
