Remote control and data logging of Server rooms, industrial installation. Digital, analog, relay, CAN bus. SNMP.

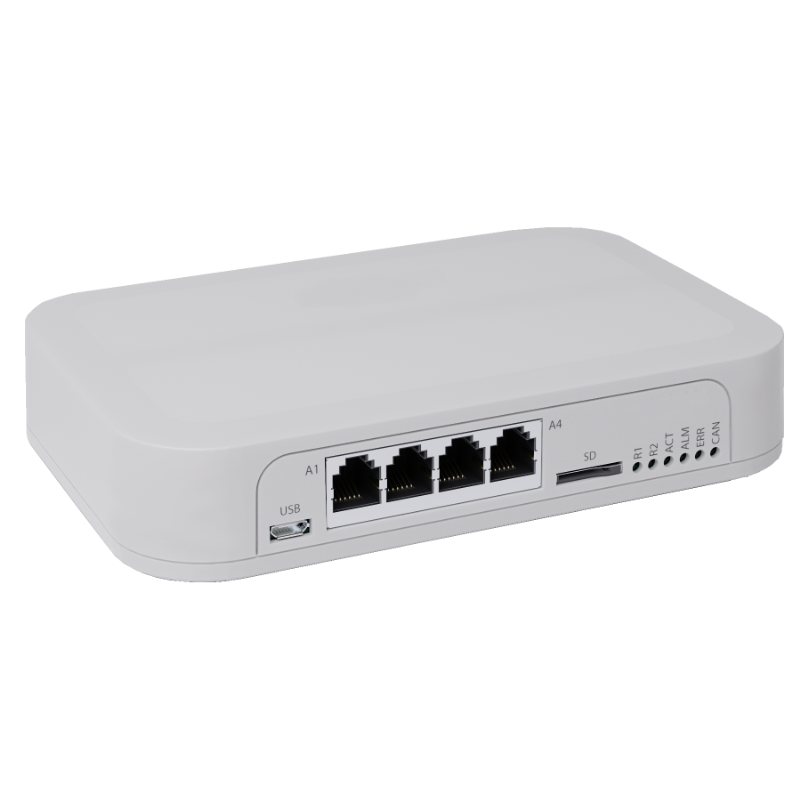

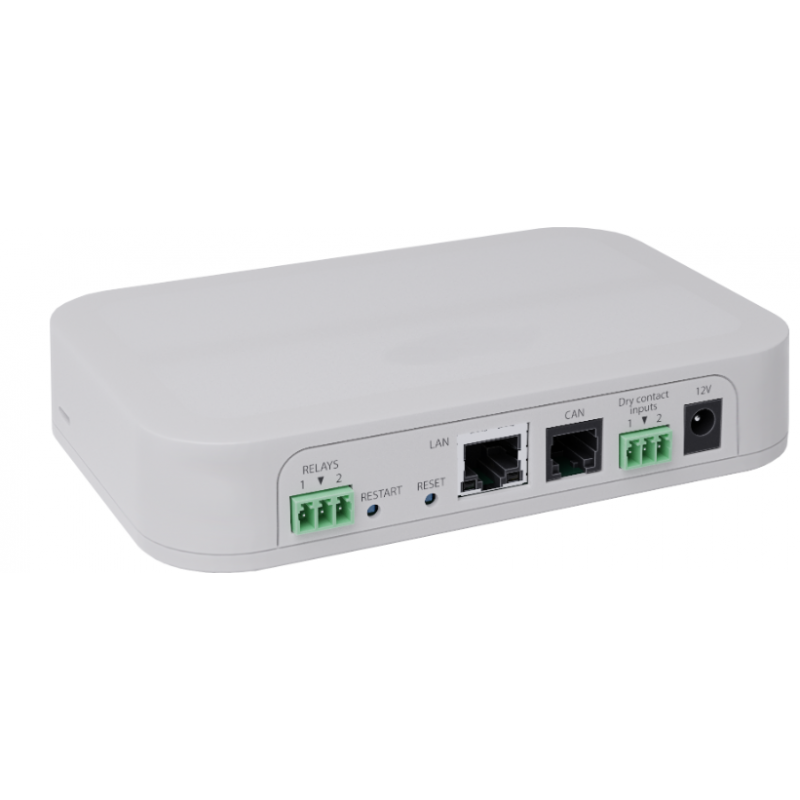

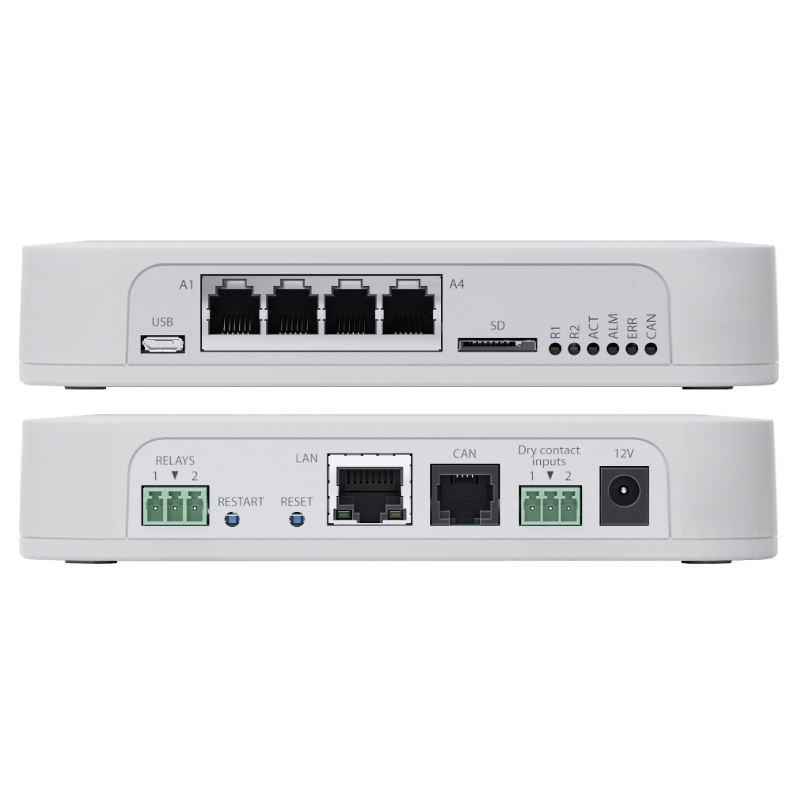

Industrial and IT room monitor unit
1 x RJ45 Ethernet 10/100 Mbps
USB port For USB camera
USB memory for logging, max. 64GB SD
Built-in USB hub
4 x Analog ports for sensors (can be expanded)
2 x Digital input (dry contact)
1 x CAM port (max. 10 sensors, can be expanded)
2 x Relay output
Desktop, Wall, (Option: DIN and 19" brackets as extensions)
Dimensions: 150 x 140 x 28 mm

Call +45 56 66 20 20 for price
Quantity
On the way in
LÆG I KURV
Product number REMOTE-MON-LOG325
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Remote environmental monitoring device for small IT rooms etc. Monitor temperature, humidity, voltage, leakage, smoke, airflow and other parameters.
Can signal an alarm, activate a siren, send an e-mail message, or send an SNMP Trap.
Can monitor up to 100 physical sensors. Can use up to 700 different elements - messages, triggers, timers, logic schemes, sensors and dry contacts.
Has a built-in Web interface. There are built-in servers and agents such as HTTP, HTTPS, SNMP, SMTP, Radius, Syslog, FTP, DHCP and OpenVPN client.

Andre produkter i samme kategori:

16 x digital inputs Dry contact input, 32bit counter 100Hz, 2 x RJ45, Modbus / TCP / UDP
16 x digital inputs Dry contact input, 32bit counter 100Hz, 2 x RJ45, Modbus/TCP/UDP, POE and 12 - 48VDC

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I / O Pair - Input - Input Mirrors in the second's output
16 x Digital input (counter): Contact to input, DRY
2 x RJ45 Ethernet - Daisy Chain
Supply voltage: POE or 12 - 48VDC / 3.2Watt

4,012.69 NOK
Item Number: ETHI16-P2I
On the way in
ADD TO CART
Quick view
8 x Digital inputs Wet 0 - + 50VDC 500Hz, 8 x Digital output (OC) + 40VDC 650mA, 2 x RJ45, Modbus
8 x Digital inputs Wet 0 - + 50VDC 500Hz, 8 x Digital output (OC) + 40VDC 650mA, 2 x RJ45, Modbus TCP/UDP, 12 - 48VDC

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair connection - the input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
2 x RJ45 Ethernet - daisy chain
Supply voltage: 12 - 48VDC / 4Watt

3,650.79 NOK
Item Number: ETHIO8I8O-2I
Physically in stock
ADD TO CART
Quick view
8 x relay via USB with Command line
8 x relay com, NO, NC. 24VDC, 250VAC 10A via USB, HID

Compact Open Board with 8 relay exits
250V / 10A Only resistive load
Controlled from USB
supply voltage: 5VDC
supply via DC Jack or terminal block
No cabinet

650.79 NOK
Item Number: USB-REL5V8
Physically in stock
ADD TO CART
Quick view
USB controlled 8 Relay Output Module Final Lays (Plug & Play) to DIN Rail Mont wide Temperatur
8 x terminal relay controlled from the USB port, 5 Amp at 250VAC, 30VDC. Powered from USB, -25 to + 75 ° C

8 final lecturer 250 VAC 5 A
USB type B with screw terminals
USB 2.0 Full-Speed ​​via USB port
Plug-and-Play
PWR / RUN / ERR LED lamps
For YOUR rail mounting
Operating temperature: -25 to + 75 °

1,738.09 NOK
Item Number: USB-REL8+
Physically in stock
ADD TO CART
Quick view
Digital inputs 8 x Wet 0 - + 50VDC 500Hz, 8 x Digital output (OC) + 40VDC 650mA, 1 x RJ45, Modbus
8 x Digital Inputs Wet 0 - + 50VDC 500Hz, 8 x digital output (OC) + 40VDC 650mA, 1x RJ45, Modbus TCP/UDP, PoE

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair connection - the input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
| 1 x RJ45 Ethernet
Power supply: PoE or 10 - 30VDC / 3watt

3,504.76 NOK
Item Number: ETHIO8I8O-P-I
On the way in
ADD TO CART
Quick view
8 x PhotoMOS relay output - not wear out, 60VDC 1A, 1 x RJ45 Ethernet. Modbus
8 x PhotoMOS relay output - not wear out, 60VDC 1A, 1 x RJ45 Ethernet. Modbus/TCP/UDP, 10 - 30VDC

The Web server
WEB HMI
Modbus TCP / UDP Modbus
Dual Watchdog
Operating temperature: -25 ~ +75°C
I/O Paie connection - input is mirrored to the other's output
8 x PhotoMOS relay (solid state) COM NO
Relay contact voltage: max 60VDC
Relay contact current: max. 1A
Switching times: on: 5ms, off: 0.3ms
Optical isolation to 3000 Vrms
Supply voltage: 10 - 30VDC / 3watt

3,263.49 NOK
Item Number: ETHIO8PR-I
On the way in
ADD TO CART
Quick view
725-TRX8-1K is a 2-channel radio module, transmitter and receiver for the transmission of digital signals
2 channel radio module, transmitter and receiver for the transmission of digital signals. 2 x DI and 2 x Relay. 868 MHz

868MHz Transceiver with 2 x Dry input, 2 x Relay
2 relay outputs, 250VAC/5A, 12V/10A
2 contact inputs, end contact so-called dry contact
Up to 1000 meters in range with gain antenna
Rubber antenna included
Watchdog function
Supply voltage: 12 - 32VDC

5,563.49 NOK
Item Number: DIO-TR725
On the way in
ADD TO CART
Quick view
8 x power relay COM N, O, 24VDC / 250VAC 5A, 2x RJ45 Ethernet Modbus
8 x Power Relay COM NO, 24VDC / 250VAC 5A, 2 x RJ45 Ethernet Modbus/TCP/UDP, 12 - 48VDC

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
2 x RJ45 Ethernet - Daisy chain
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair-link - input is mirrored to the other's output
8 x Relay power - electromechanical, COM NO
Relæskiftetid: on: 10ms, off: 5ms
Relay contact voltage and current: 24VDC / 250VAC / 5A
Electromechanical: Avoid inductive load
Supply voltage: 12 - 48VDC

3,822.22 NOK
Item Number: ETHIO8R-I
On the way in
ADD TO CART
Quick view
