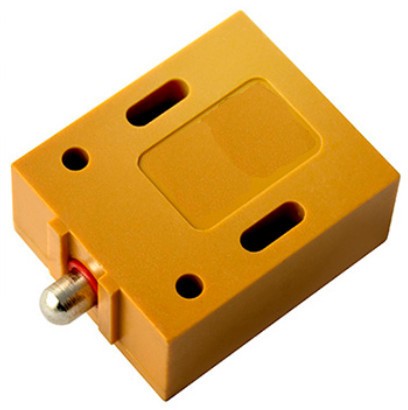

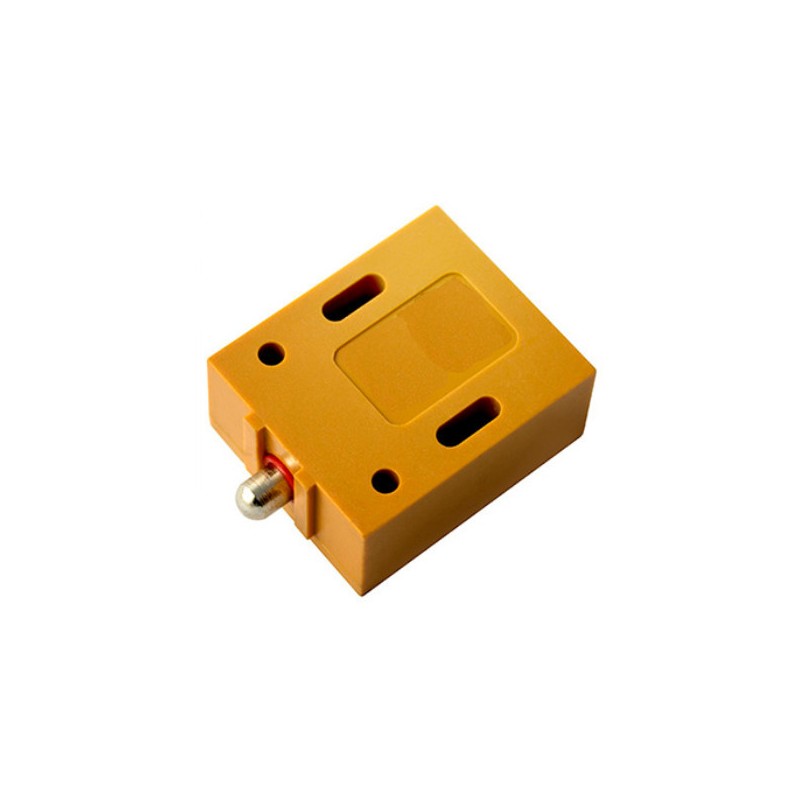

Electronic lock, for mounting on cabinets and doors, closing control, holding force of 50kg, 12VDC

Compact motor-controlled lock with separate pawl
Control voltage - 12VDC
With door-closed status
Holding force: 50 kg
Operating temp. -10 ° C - + 55 ° C
Dimensions: 41 x 35 x 19mm
Pal: ø9mm, 18mm
Weight: 0.11kg
Can be used on wood, aluminum and metal

340.80 SEK
Excl. VAT
Quantity
On the way in
Product number LOCK-CAB12V50
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Andet Holdekraft: 50 kg
Anvendelse Kan anvendes på træ, aluminium og metal
Dimensioner 41 x 35 x 19mm Pal: ø9mm, 18mm
Driftstemperatur -10°C - +55°C
Spænding Styrespænding - 12VDC
Weight 0,11kg

Compact size cabinet lock. Indicates whether the door / door is closed / locked. There is spring activated bucket out when the pallet is released.
The lock is very suitable for small doors where the space is narrow.
The plastic cabinet suitable for eg. archive cabinet, medicine cabinet, built-in cabinet, drawers, etc.
