Point-to-Point Fiber converter RS232 / RS422 / RS485
Multi Mode 62.5/125 or 50//125my, wavelength 850nm
Power is supplied from 10 - 30VDC / 2 Watt
DIN rail bracket.
Up to 2km
ST connector
For communication over long distances in electrically noisy environments.
Type: Asynchronous RS232/422/485 for optical fiber
Speed: Up to 115.2 Kbit/sec.
Distance: Up to 2 km
Other: Transmits TxD and RxD. Multimode fiber 62.5/125 µm. Wavelength 850 nm
Mounting: DIN rail
Supply: 10 - 30 VDC 2.0 W
Connector: RS232/422/485 screw terminals.
Fiber: ST connector

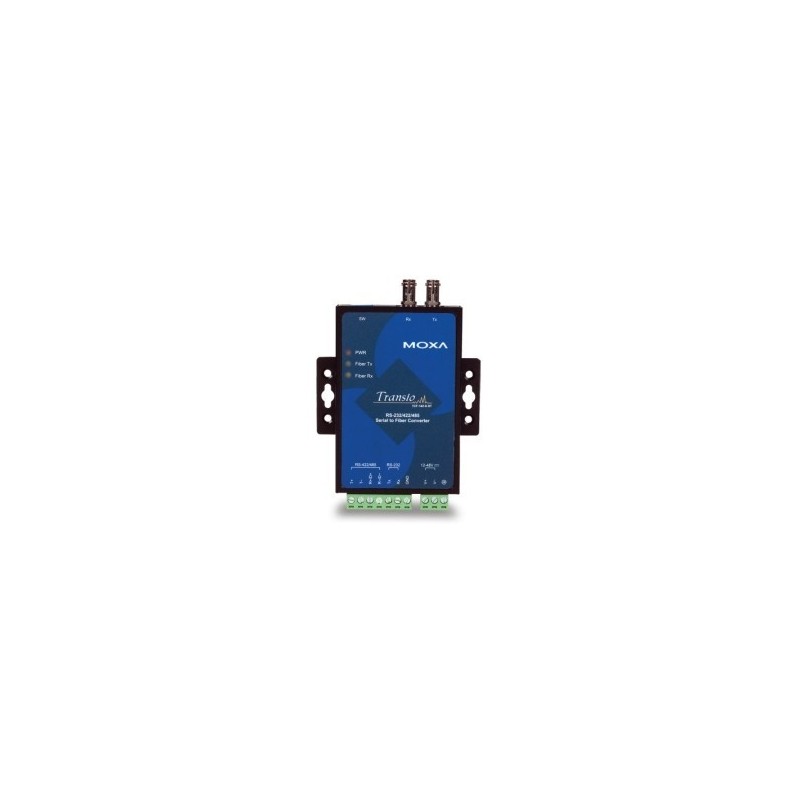

MOXA Converter RS232 / RS422 / RS485 Fiber MultiMode, TCF-142-M-ST
RS232 lysleder omformer m/DCE eller DTE omskifter
Mediekonverter fra seriel til optisk fiber
Point til Point transmission
RS232 eller RS422 eller RS485
Op til 40 km med single-mode
ST stik - duplex
Til 9/125my single mode fiber
Reducerer signalinterferens
Beskytter mod elektrisk interferens
Baud rate op til 921,6 kbps
Temperaturområde: -40 til+75°C
Forsyningsspænding: 12 - 48VDC
Mål: 100 x 90 x 22 mm
DIN beslag som tilbehør
max baud rate 115kb / s for 56kb / s for signal RI
Up to 1.7km at 62.5um fiber cable.
Fiber Optic line multimode, 820nm
Transmitting: RxD , TxD, DTR, DSR, RTS, CTS, DCD, RI or 5x RxD, TxD
RS232 signal including DCE / DTE
Time multiplex, full duplex
RS232 DB9 male
Plug fiber ST
overvoltage (soft) protection - supply 600W / 1ms
polarity protected with diodes on DC input
optical indication (LED) red - PWR
Yellow - INPUT signal
Green - OUTPUT signal
Supply voltage 10-30VDC or 9 - 24VAC
power consumption max. 2W
Dimensions: 76 x 55 x 115 mm
