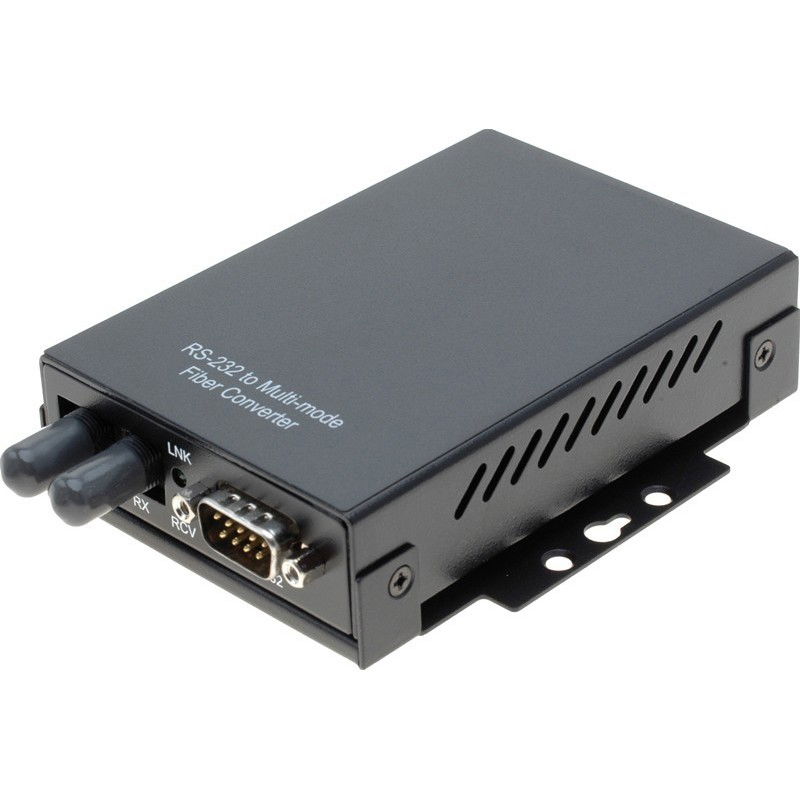

RS232 til optisk fiber konverter. Til Multi Mode fiber, 50/125 og 62,5/125, ST stik

RS232 lysleder omformer m/DCE eller DTE omskifter

CNV232FIBER+V
1,802.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Fiber Type: Multimode

Serial Type: & nbsp; RS232

Speed: Up to 115.2 kbit / s

Data Transfer: Transfers Tx, Rx & nbsp; (Software handshake). Can be set to DCE or DTE connections for RS232

Optical fiber length: Up to 2 km

Light guide type: 50/125 μm, 62.5 / 125 μm

Wavelength : 1310 nm

Supply: 9 - 32 VDC, AC adapter & nbsp; of 12 VDC 800 mA (included)

Plug: RS232: DB9 male Light guide: ST female

Accessories: DIN rail fittings and fittings for wall and blackboard mounting

Bølgelængde
1310 nm
Forsyning
9 – 32 VDC, netadapter på 12 VDC, 800 mA (medfølger)
