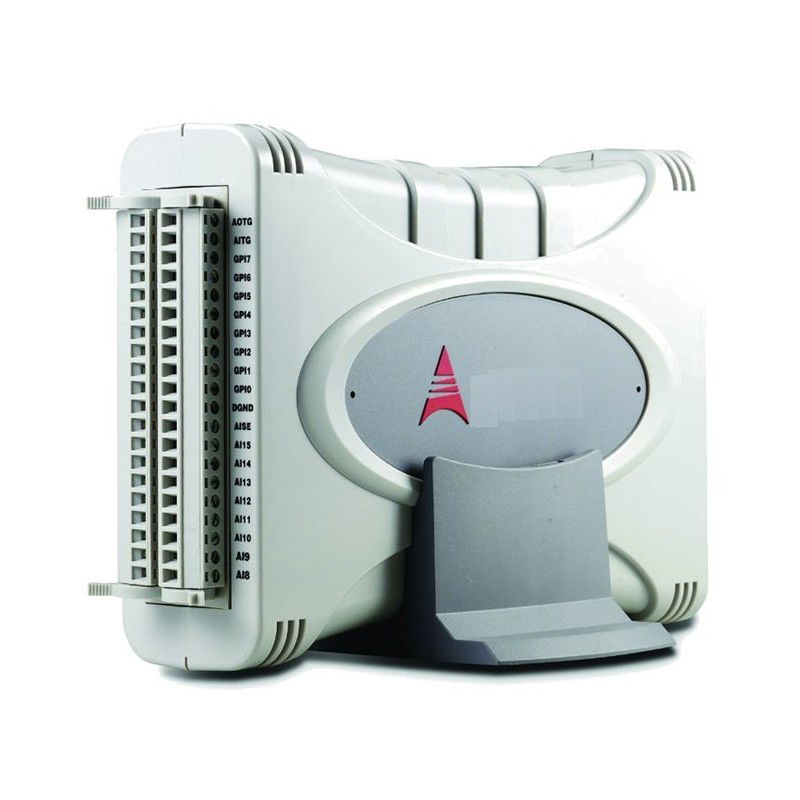

16 x voltage measurement or 8 differential inputs +/- 200mV to +/- 10 volts, 16bit. 250kHz Sample Rate. Is connected to USB.

16 analog inputs with common ground
or 8 differencial inputs.
Up to +/- 10 Volt, 250kHz
16 Bit resolution
Software Support: LabVIEW, Matlab
Software Support : C / C++, Visual Basic, Visual Studio.net
Power from the USB port

USB-AD16S16A
9,684.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

16 Analog voltage inputs for USB.
up to 250 kHz, for measuring voltage in the range of ± 200 mV, ± 1 V, ± 2 V, ± 10 v.

Andet
8 TTL ind- og 4 TTL udgange. Leveres inkl. holder og DIN beslag og USB kabel
Dimensioner
114 mm (H)
Hastighed
Op til 250kHz dataoverførsler per sekund. En dataoverførsel omfatter data fra 1 kanal
Indgang
16 stk. ”single-ended” eller 8 stk. ”differentielt” maks. indgangsspænding ±24 V
Indgangsimpedans
1 GΩ
Måleområde
Spænding: ±200 mV, ±1 V, ±2 V, ±10 V
Nøjagtighed
±0.05% FSR
Opløsning
16 bit
Software
USB driver til Windows 2000,XP, Win7 og Win8 samt understøtter Labview og Matlab Programmeringseksempler i VB.NET/VC.NET/VB/VC++/BCB/Delph medfølger
Stik
Alle indgange via skrueterminal
Strømforbrug
Typisk 2W - forsynes via USB porten
