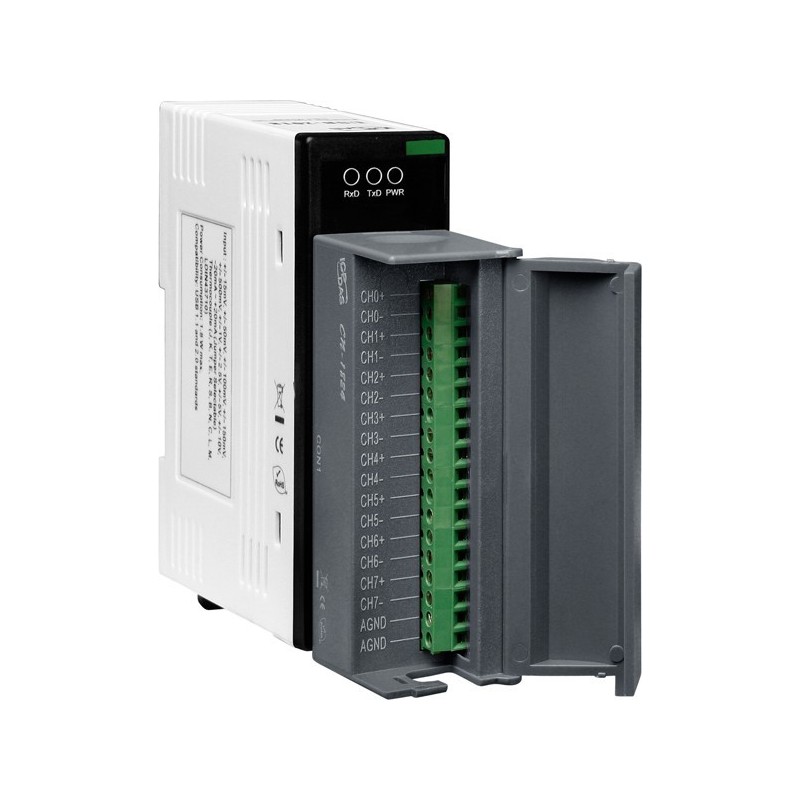

8 x stressing, current and temperature measurement is +/- 10V, 0-20mA, TC, 16bit solution

8 x voltage, current and temperature measurement +/-10V, 0-20mA, TC, 16-bit resolution. 10 measurements per second. USB

8 analog measuring inputs - up to +/- 10V, 0-20mA
Thermocoupler: J, K, T, E, R, S, B, N, C, L, M LDIN43710
USB interface
to measure the voltage, current, temperature.
up to 10 measurements per second.
Screw Terminal

2,616.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number USB-AD8S16
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Hastighed Op til 10 dataoverførsler per sekund. En dataoverførsel omfatter data fra 1 kanal
Indgang 8 stk. ”differentielt” overspændingsbeskyttelse på indgange 240Vrms
Indgangsimpedans 400 KΩ ved spænding og 125 Ω ved strøm
Isolation 3000 Volt DC
Måleområde Spænding:±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V. Strøm: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (kræver ekstern modstand på 125 Ω). Termoelementer type : J, K, T, E, R, S, B, N, C, L, M
Nøjagtighed ±0,1% FSR
Opløsning 16 bit
Software USB driver til Windows 2000, XP, Win7 og Win8. Programmeringseksempler i VB, C++, C#.NET, VB.NET medfølger
Stik Alle indgange via DB25 hunstik, terminal adapter med skrueterminal medfølger
Strømforbrug Typisk 1,45W - forsynes via USB porten

USB AD8S16 is a solution for data collection. It offers easy USB plug-and-play operation and equips accurate measurement for all kinds of automation applications. Compared to the traditional PC-based card as PCI, PC / 104- and ISA cards, users can achieve data collection easier and faster via USB AD8S16. USB AD8S16 is an 8-channel universal analog input module and has the following features. First, it supports the over voltage protection up to 240Vrms. Second, the voltage and current input types. Thirdly supports the wide termoelementenheder with J, K, T, E, R, S, B, N, C, L, M, and LDIN43710 types. Fourth, it provides extremely accurate thermocouple and automatic compensation for cold box for each channel. Fifth, the open ledningsdetektion to the thermocouple, and 4 ~ 20 mA inputs for each channel. Moreover, the users via the I / O utility to configure and test the USB AD8S16 directly and easily without any coding. The friendly API library is also available for users to develop their own USB application.

125 Ohm resistance to current measurement. Convert 0-20mA loop to excitement
125 Ohm resistance to current measurement. Convert 0-20mA loop to voltage for measuring module

125 Ω Shunt resistance, 1 pc. pr. Channel

28.00 kr
Item Number: M485-MOD125
Physically in stock
ADD TO CART
Quick view

Other products in same category:

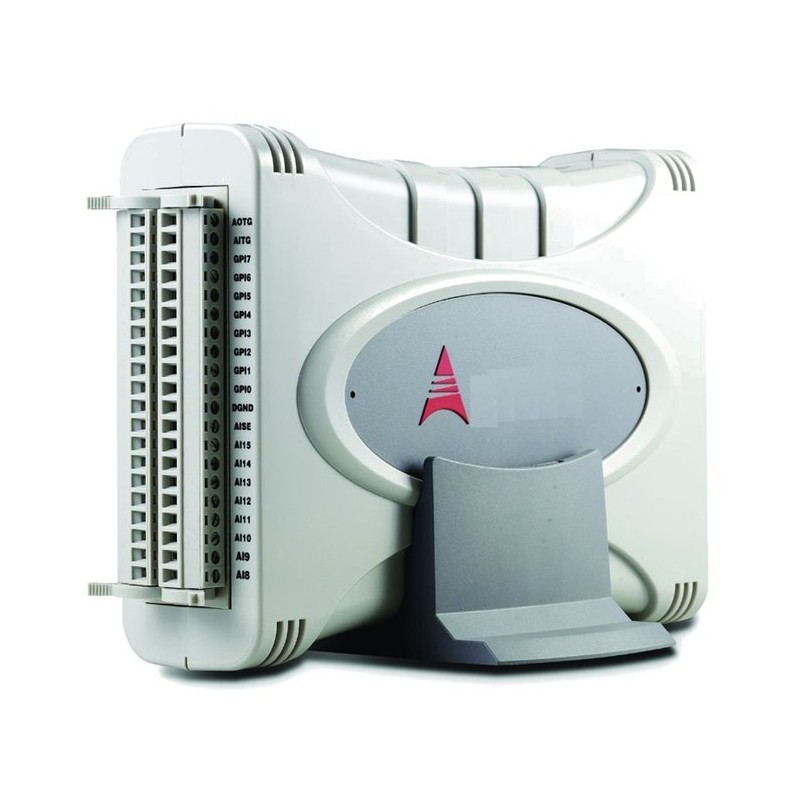

16 x voltage measurement +/- 200mV to +/- 10 volts, 16 bit. 250kHz
16 x voltage measurement or 8 differential inputs +/- 200mV to +/- 10 volts, 16bit. 250kHz Sample Rate. Is connected to USB.

16 analog inputs with common ground
or 8 differencial inputs.
Up to +/- 10 Volt, 250kHz
16 Bit resolution
Software Support: LabVIEW, Matlab
Software Support : C / C++, Visual Basic, Visual Studio.net
Power from the USB port

9,684.00 kr
Item Number: USB-AD16S16A
On the way in
ADD TO CART
Quick view
USB AD is a module with 16 x voltage inputs via the USB port (voltage measurement) - Danbit A / S
16 x voltage measurement via USB +/- 5V, 12bit, 1 x analog out, 4 x DI, 4 x DO

16 analog inputs via USB port, 10-100S / S
Resolution: 12 bit
Sample-speed: 10Hz per channel
1 Analog output +/- 5V
4 digital outputs TTL ( CMOS
4 digital inputs TTL / CMOS
Power supplied from the USB port
DAQ Software: Purchase NextView

1,165.00 kr
Item Number: USB-AD16S12+
On the way in
ADD TO CART
Quick view
16-Channel USB Voltage Measurement & I/O Module, 16bit
16 x Voltage measurement +/- 10V 16bit, 2 x analog +/- 10V output, 16bit, 4 x digital I / O for USB

Multi I / O module for measurement and with USB port
16 Analog inputs, +/- 10V, +/- 5V, +/- 2V, +/- 1V
16 bit resolution
frequency Up to 250kHz Total Samplings-Rate
2 Analog Exit +/- 10 Volt
4 Digital Entrance TTL / CMOS
4 Digital Outputs TTL / CMOS
1 Counter Input, 16 Bit
Voltage Variety from USB The port
Buy DAQ Software: NEXTVIEW
Dim: 167 x 113 x 30 mm

4,920.00 kr
Item Number: USB-AD16S16
On the way in
ADD TO CART
Quick view
USB-AD14F is a module with 16 x voltage measurement +/- 10V, 14bit, 1 x analog out +/- 5V, 12bit, 8 x DI/DO
16 x voltage measurement, +/-10volt,14bit, 1 x +/- 5V Analog out, 12bit, 8 x DI / DO, Counter. connected USB

Measurement and control via USB port
16 x analog inputs 14bit, +/- 10V
Total Sample speed: 20KS / s
1 x Analog Exit 12bit, +/- 5V
8 X digital inputs TTL / CMOS
8 x digital outputs TTL / CMOS
1 x 16bit counter entrance
DAQ Software: Purchase NextView
Goal: 167 x 113 x 30 mm
Power supplied from the USB port

2,400.00 kr
Item Number: USB-AD16S14
Physically in stock
ADD TO CART
Quick view

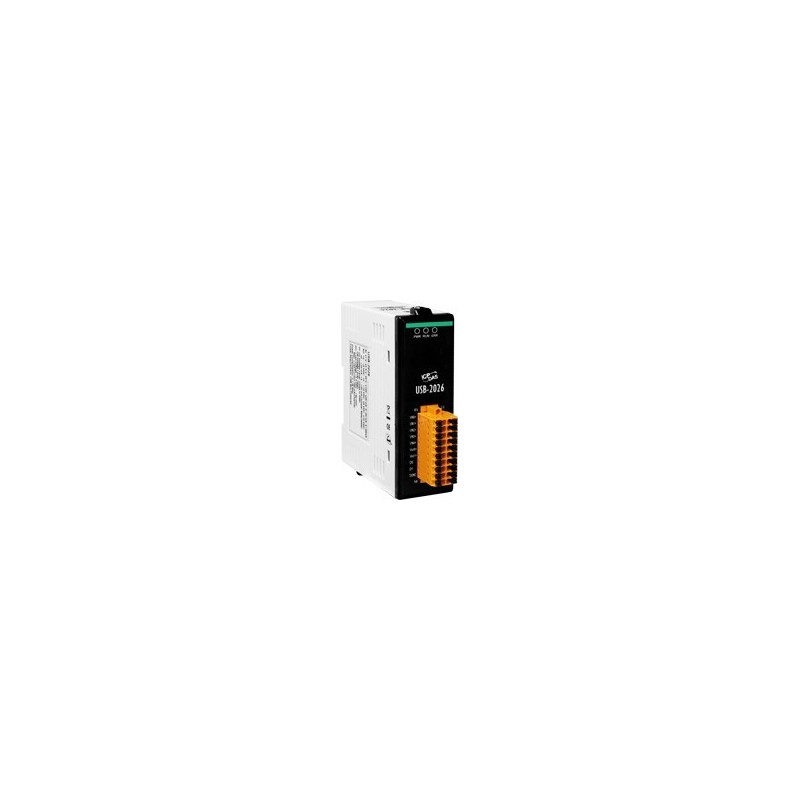

5 x analog ind- og 2 x analog udgang, 2 x digital ind- og 2 digital...
