AI embedded PC supporting 130 Nvidia RTX GPU,12/13th Gen CPU, USB 3.2, M.2, RS232/422/485, NVMe SSD, RAID

Supports Intel® 13th/12th-Gen Core™ up to 16C/ 24T 35W/ 65W CPU
RAM Max. 64GB DDR5
1 x VGA 1920x1200, 1 x DVI-D 1920x1200, 1xDP 4096x2304
Support NVIDIA® RTX series GPU card up to 130W TDP
4 x COM (2xRS232/422/485, 2xRS232)
5x 2.5GbE and 1xGbE with optional PoE+ (ports 3~6)
1x USB 3.2 Gen2x2 type-C
6x USB 3.2 type-A ports
M.2 2280 M key socket (Gen4x4) supporting NVMe SSD
Accommodates two 2.5" SATA HDD/ SSD with RAID 0/ 1 support
Interface for add-on expansion
-25°C to 60°C wide temperature rugged operation
8 to 48V DC input
CE/FCC Class A, according to EN 55032 & EN 55035
240 (w) x 225 (d) x 110.5 (H) mm

EPC-13X5E9U4SVDDP
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

EPC-13X5E9U4SVDDP is a robust AI computer that delivers superior CPU and GPU performance by leveraging Intel's 13th/12th Gen platform and NVIDIA's 130W RTX GPU card.

Benefiting from the advantages of Intel's 13th/12th Gen processors, it can offer up to 24 cores/32 threads with a performance improvement of up to 2 times compared to previous Intel 11th/10th Gen platforms. The latest NVIDIA® 130W RTX GPU contributes nearly 9 TFLOPS of FP32 performance to drive real-time AI inference applications involving multiple cameras, such as production line vision inspection, intelligent video analysis for monitoring or ITS, or autonomous mobile robots (AMR).

EPC-13X5E9U4SVDDP features a proven thermal design to ensure reliable system operation from -25°C to 60°C. It incorporates a passive cooling solution for the motherboard and a divided patented ventilation design for the 130W GPU card. Supporting six GigE cameras (or IP cameras) and six USB3 cameras, EPC-13X5E9U4SVDDP is ideal for various vision-based AI application deployments. It also offers flexible data storage options, including an M.2 2280 Gen4x4 NVMe that provides extreme read/write speeds of up to 7000 MB/s, as well as two 2.5" SATA HDD/SSDs to expand storage capacity.

With performance enhancements and comprehensive I/O ports, EPC-13X5E9U4SVDDP is the perfect edge AI inference platform for industrial environments, ranging from factory automation and smart agriculture to autonomous machines.

Processor Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)
- Intel® Core™ i9-13900E/ i9-13900TE
- Intel® Core™ i7-13700E/ i7-13700TE
- Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE
- Intel® Core™ i3-13100E/ i3-13100TE		 Supporting Intel® 12th-Gen Alder Lake Core™ CPU
(LGA1700 socket, 35W/ 65W TDP)
- Intel® Core™ i9-12900E/ i9-12900TE
- Intel® Core™ i7-12700E/ i7-12700TE
- Intel® Core™ i5-12500E/ i5-12500TE
- Intel® Core™ i3-12100E/ i3-12100TE
- Intel® Pentium® G7400E/ G7400TE
- Intel® Celeron® G6900E/ G6900TE
CPU
i9; i7; i5; i3;
Gen.12/13 LGA 1700, Ask for CPU support list
Chipset
Q670E
Intel® Q670E Platform Controller Hub
Andet
1
expansion options application-oriented I/Os such as RS-232/422/485, isolated DIO and ignition power control
Approval
Yes
CE/FCC Class A, according to EN 55032 & EN 55035
Chok/Vibration
MIL-STD-810G
Operating, MIL-STD-810G, Method 514.6, Category 4 (with optional damping bracket); Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II (with optional damping bracket)
Driftstemperatur
-25° til +60° C
With 35W CPU and 130W GPU -25°C to 60°C** With 65W CPU and 130W GPU -25°C to 60°C**/*** (configured as 35W TDP) -25°C to 50°C**/*** (configured as 65W TDP)
Ethernet
2.5G; 1000
5x 2.5G Ethernet by I225-IT and 1x Gigabit Ethernet by I219-LM with screw-lock
Forsyning
8~48Vdc
1x 3-pin pluggable terminal block for 8 to 48V DC input
Grafik
VGA; DVI-D; DP
1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
Lyd
1
1x 3.5 mm jack for mic-in and speaker-out
M.2
1
1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD
Montering
Wall
Wall-mount (standard) or damping bracket (optional)
mPCIe
1
1x full-size mini PCI Express socket
PoE
PoE+
Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6. 100W total power budget
RAID niveau
0/1
SIM kort
1
1x M.2 3042/3052 B key socket with SIM slot for M.2 4G/ 5G module
TPM
2.0
Supports dTPM 2.0
USB
USB 3.2; USB 2.0
1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screwlock 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors 2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors, 2x USB 2.0 ports
AMT
1
Supports Intel vPro/ AMT 16.0
PCI Express
1
1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette for installing an NVIDIA® graphics card up to 130W TDP (Max. graphics card dimension is 188 mm(L) x 131 mm(W), dual slot allocation)
Dimension

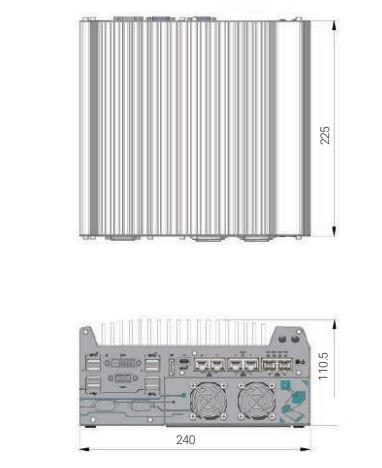

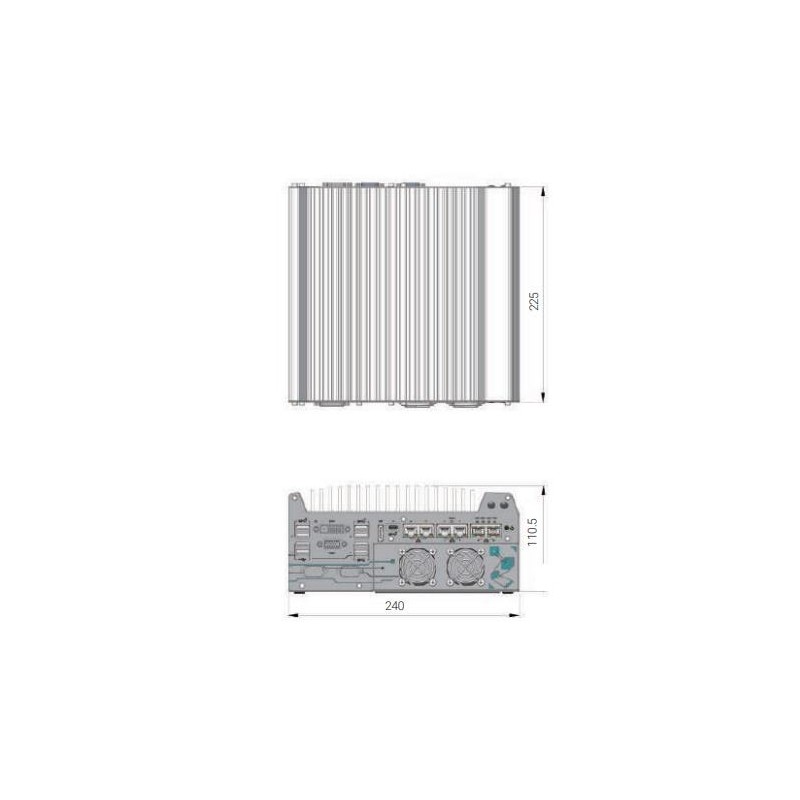

240 mm (W) x 225 mm (D) x 110.5 mm (H)
240 mm (W) x 225 mm (D) x 110.5 mm (H)
Serial Porte
4
2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2) 2x RS-232 ports (COM3/COM4)
RAM
64Gb max.
Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots)
