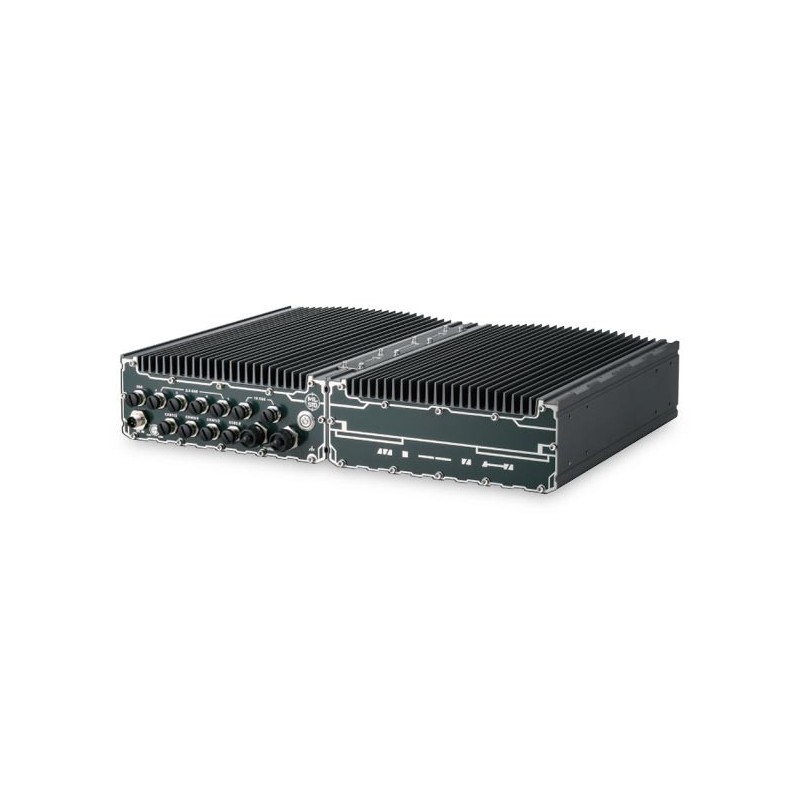

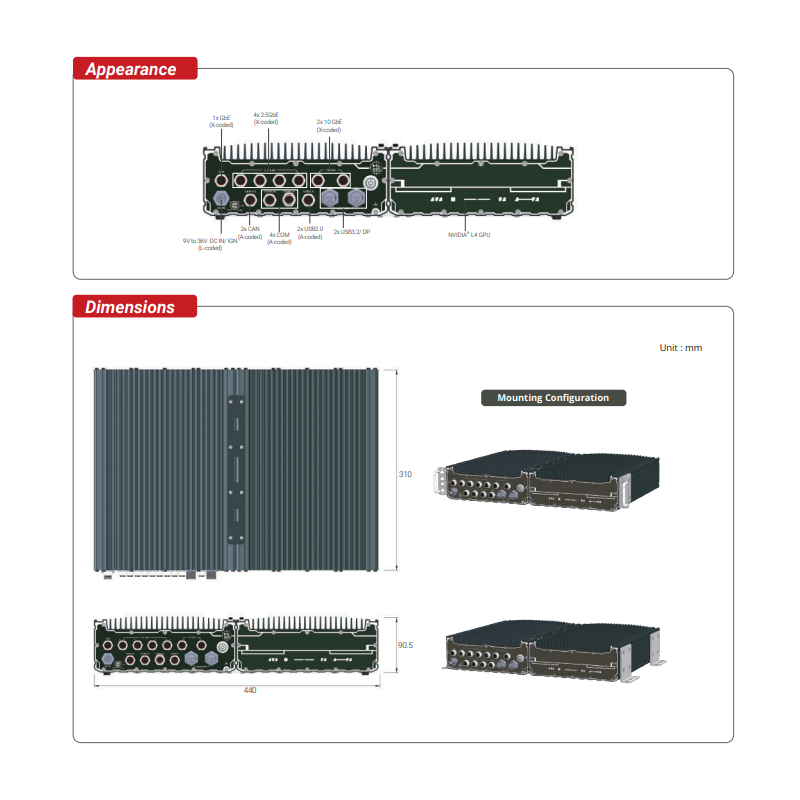

Rugged GPU Computer with Intel Core 12th-14th Gen, NVIDIA L4, IP69K, 2U Rackmount

2 x PCIE X16 Slots for full length GPU cards
1 x PCIE X4 Slot and 1 x PCIE X1 Slot for add-on cards
Intelligent cooling Design for high-performance GPU cards
Military Standard Shock Vibration Resistant

Supports 9th/8th Gen Intel® Xeon®/Core ™ processor (35W/65W/80W)
Nvidia / AMD GPU Support up to 328mm
Intel Gen. 8/9, C246 Chipset
2 x DDR4 SO-DIMM, supports ECC/non ECC type up to 2666 MHz, 64GB
4 X 2.5" Hot Swappable SATA III HDD/SSD BAYS (MAX HEIGHT 15 mm)
1 x M.2 m Key operation (NVME), 1 x M.2 E key (CNVI)
VGA, HDMI, DP
6x USB, 1x UBS internal
2 x RS232/422/485
2 x Front Available SIM card slot for signal redundancy
Power 9~48Vdc, 220W
Dimensions 105x190x360mm (wxDxH)
Operating temperature -40°C to 70°C depending on CPU
9~48VDC via 3-pin Terminal Block
​Optional AC/DC or DC/DC 24V 480W Power Supply
Optional AC/DC or DC/DC 24V 1000W Power Supply

IP67 waterproof GPU computer with NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200
Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
Patented waterproof 2U 19" chassis for rack or wall-mount*
Guaranteed non-throttling GPU performance up to 62°C ambient
Up to eight 802.3at Gigabit PoE+ ports via M12 X-coded connectors
VGA, USB 2.0 and COM ports via M12 A-coded connectors
8~48V wide-range DC input with built-in ignition power control
MIL-STD-810G and EN 50155 certified
*R.O.C Patent No. I697759, *CN Patent Pending

Fanless design (embedded heat pipe cooling solution)

12/13 generation CoreTM i9/i7/i5/i3 processor (Alder Lake-S/Raptor Lake-S)

Up to 60W GPU MXM module expansion

802.3af (15.4W)/802.3at(25.5W) Gigabit PoE ports

DP x2 + HDMI x 1 and DVI x 1 (supports 4 independent displays)

On/off delay control / configurable ignition current control

Supports TPM 2.0 and Time-Sensitive Networking (TSN)

Two mPCIe for optional WiFi/3G/4G/GPS or I/O expansion supported

Front-accessible I/O

1 x M.2 B for storage or 5G/LTE +1 x M.2 E-key for WiFi/BT

1 x M.2 M for NVMe SSD

285x230x 90 mm (9.84" x11.50" x 3.54"), fanless 285x230x110 mm (9.84" x11.50" x 4.33"), w/ FAN

DC 9~36V input

CE, FCC Class A, E-mark

optional extras

Powered by NVIDIA® Orin™ NX or Orin™ Nano SoM with JetPack
IP66 waterproof and dustproof
6x GMSL2 car cameras via FAKRA Z connector (requires camera manufacturers to have dedicated drivers)
(We can offer GMSL camera with driver support)
1x CAN FD
1x RS232 via M12 A-coded connectors
-25°C to 70°C fanless operation (no throttling at 70°C with 20W TDP mode)
225 x 136 x 55 mm low profile design
8V to 35V wide range DC input with built-in ignition current control

Powered by NVIDIA® Orin™ NX or Orin™ Nano SoM bundled with JetPack
IP66 waterproof and dustproof
4x PoE+ GbE via M12 X-coded connectors
1x CAN FD
1x RS232 via M12 A-coded connectors
-25°C to 70°C fanless operation (No throttling at 70°C with 20W TDP Mode)
225 x 136 x 55 mm low-profile design
8V to 35V wide-range DC input with built-in ignition power control

IP67-rated design, specifically for outdoor environments
NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
High AI computing performance for GPU accelerated processing
8GB RAM
1 x C3 USB 2.0
1 x M12 Ethernet
1 x C3 HDMI
4 N-jack antenna openings with water-proof design
Features M12 lockable I/Os
1 IEEE 802.3at GbE PoE (30W)
-30°C to +50°C operating temperature range
100 to 240 VAC wide range power input with 10kV surge protection
OS support Linux Ubuntu 18.04

14/13/12th Gen Intel® Core™ Series 65W max

2x DDR5 4800 MHz SO-DIMM Socket, 64GB max

1x DP, 1x HDMI, 1x VGA

1x MXM 3.1 Type A/B for GPU module

1x 2.5GbE and 1x 1GbE LAN,

1x 20Gbps USB3.2 Gen2 x2, Type C Connector

3x 10Gbps USB3.2 Type A, 4x 5Gbps USB3.2 Type A

4x M.2 NVMe SSD or SATA SSD

Operating temperature -40°C to 70°C

Power Input 9-48 VDC

Dimension 260 x 200 x 85 mm

Support OS: Windows®11, Windows®10, Ubuntu Desktop 22.04 LTS

MIL-STD-810H
