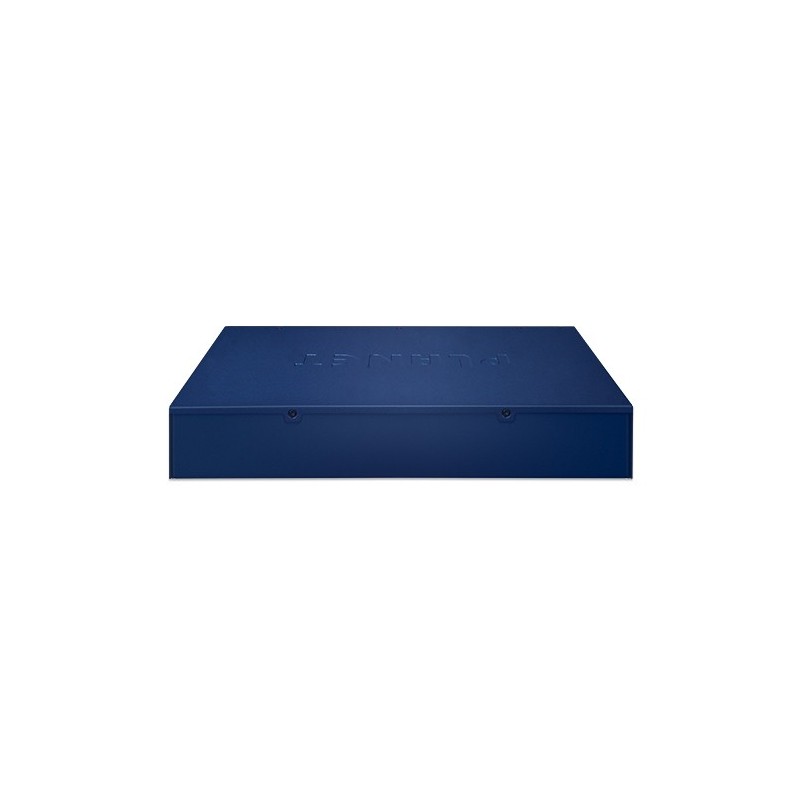

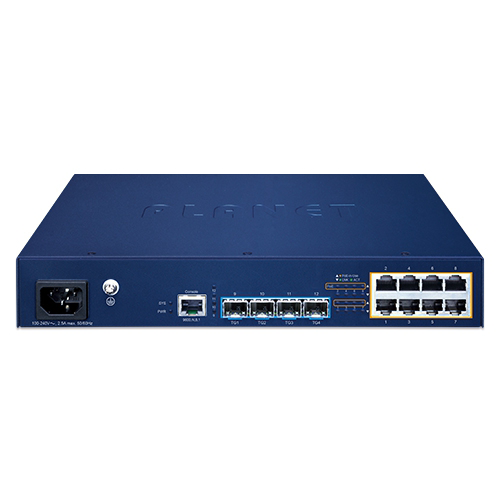

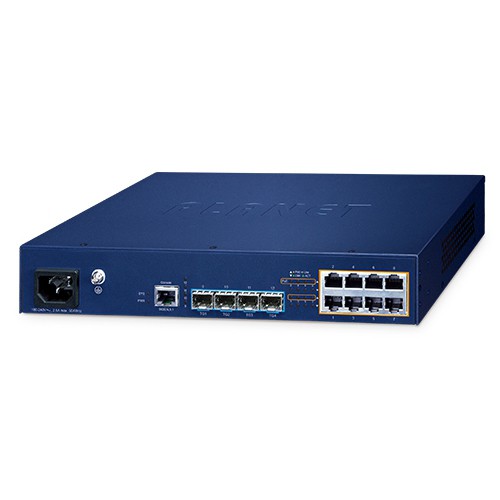

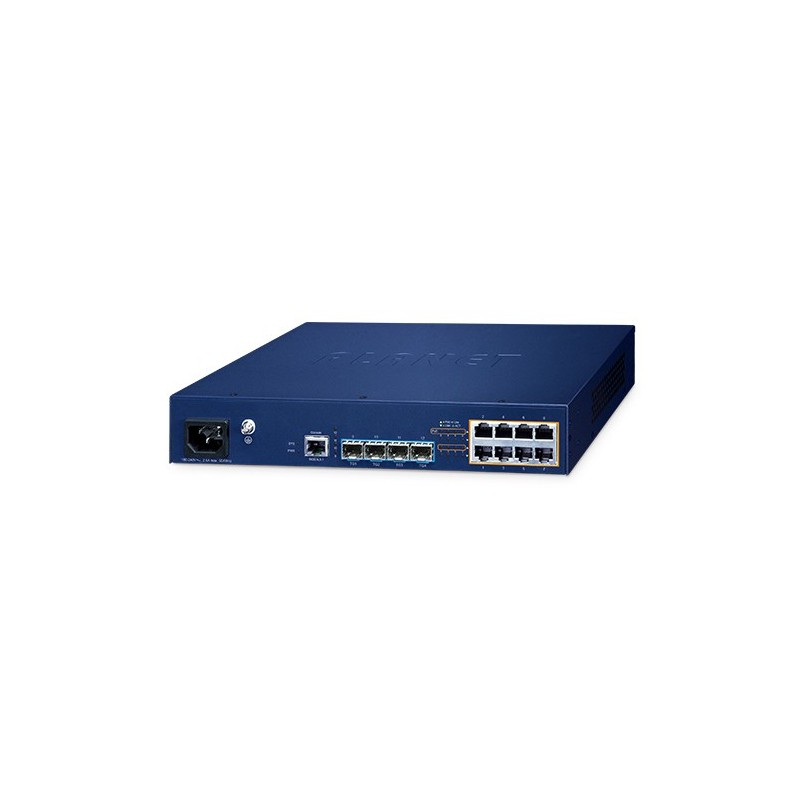

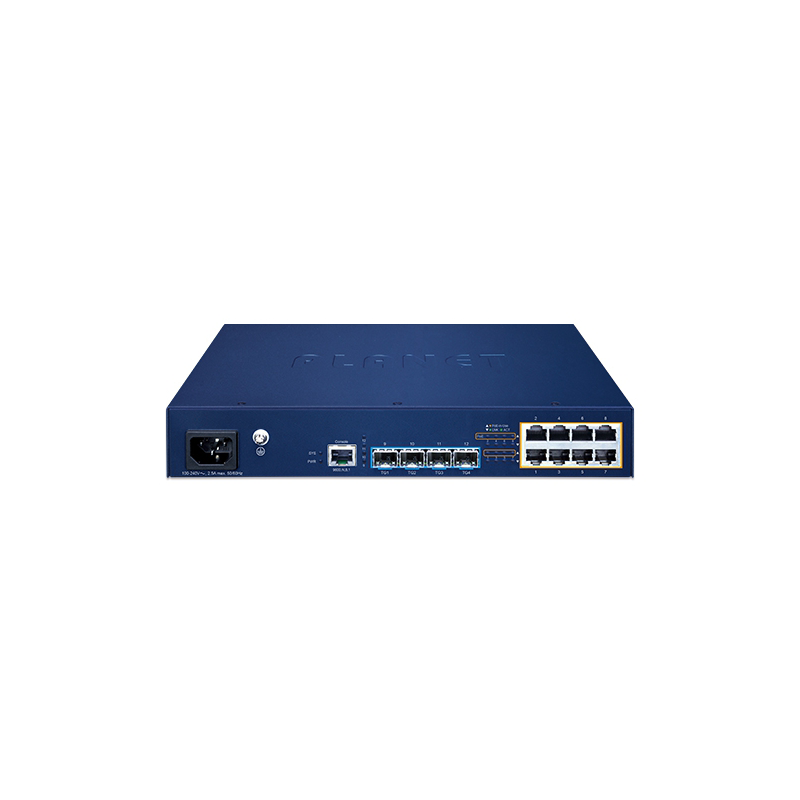

Layer 3 Managed Switch
8x Gigabit Ports
4x 10Gbps SFP Ports
Supports OSPF, RIP & Static Routing
VLAN, ACL, Syslog and more
Configuration: Console, Telnet/SSH or Web browser
Operating Temperature 0 ~ 50 C
IPv4 & IPv6 Routing
Power using AC cable
Dimensions 280 x 180 x 44mm
Weight 1622g
Porte | 8x RJ45 Gigabit, 4x SFP+ Ports, 1x RJ45 Console Port |
---|---|
Protokol | Static route, RIPv1/v2, OSPFv2, Policy-based routing (PBR), Hardware-based Layer 3 routing |
VLAN | 802.1Q tagged VLAN, up to 4K VLAN groups, 802.1ad Q-in-Q (VLAN stacking), GVRP for VLAN management, Private VLAN Edge (PVE) supported, Protocol-based VLAN, MAC-based VLAN, IP subnet-based VLAN |
Weight | 1622g |
Dimensions | 280 x 180 x 44mm |
Power Supply | AC 100~240V, 50/60Hz |
power consumption | 25 watts/ 85.25BTU |

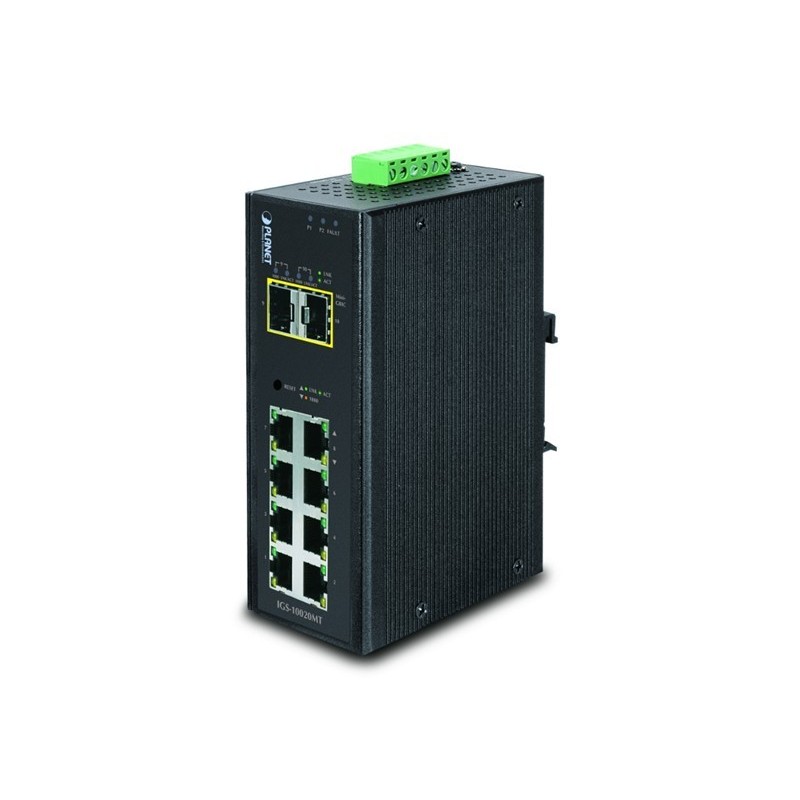

Managed Gigabit switch. 8 x RJ45, 2 x SFP
8 x 10/100/1000Mbit with RJ45 connectors
2 x 100/1000Mbit to SFP
Supply voltage: 12 - 48VDC redundant
Also accepts 24VAC
Power consumption : max. 10W
DIN rail bracket
1 relay for alerting
Dimensions: 135 x 88 x 56 mm
Operating temperature: -40 - +75°C

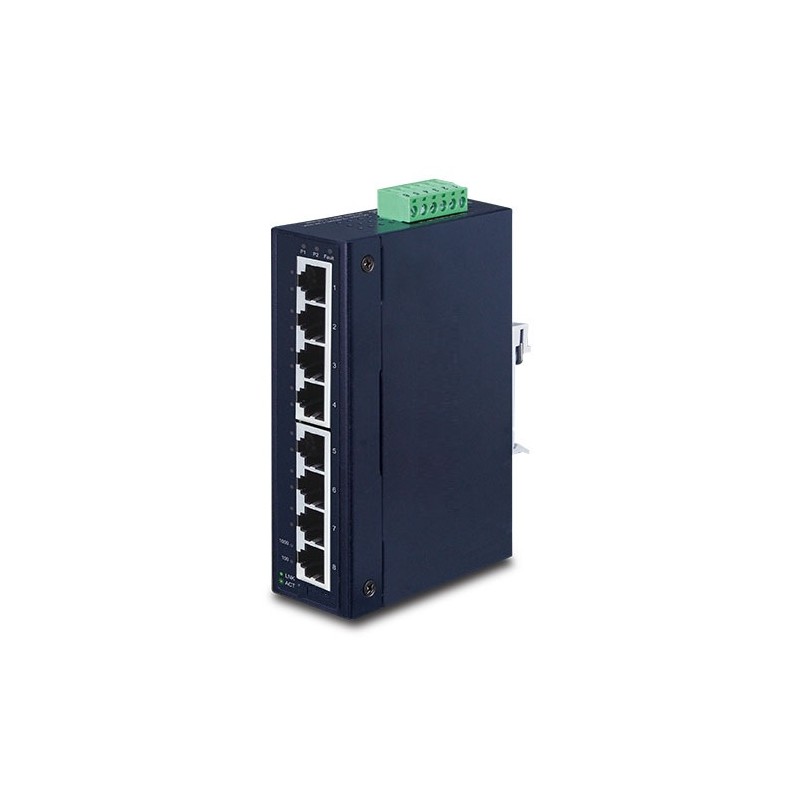

8 Ports Managed Switch With Fast Recovery and Ring
Erps (Ethernet Ring Protection Switching)
8 x RJ45 10/100/1000Mbit Switch
Store and Forward Architecture, Broadcast Storm Checking
1.5mbits SRAM Packet Buffer
Automatic Address Learning and Address Aging
Supply paging: 12 - 48VDC or 24VAC
Real Ring, Redundant Ring of critical network
IEEE 1588 Time Protocol, supports MEF service and synchronous Ethernet
Supports MODBUS TCP protocol
Supports IGMP Snooping to 4 x 10/100 / 1000Mbps RJ45 ports
2 x 100 / 1000Mbit SFP ports
12 - 48VDC, redundant input
24VAC supply voltage is also possible
IP30 metal housing with DIN bracket
temperature range from -40 to + 75 ° C
Managed Industry switch to harsh environment
Cybersecurity SSHv2/TLSv1.2
Ethernet Ring Protection
e-Mark Certified (vehicles/ITS)
Can support 2.5Gbit SFP module

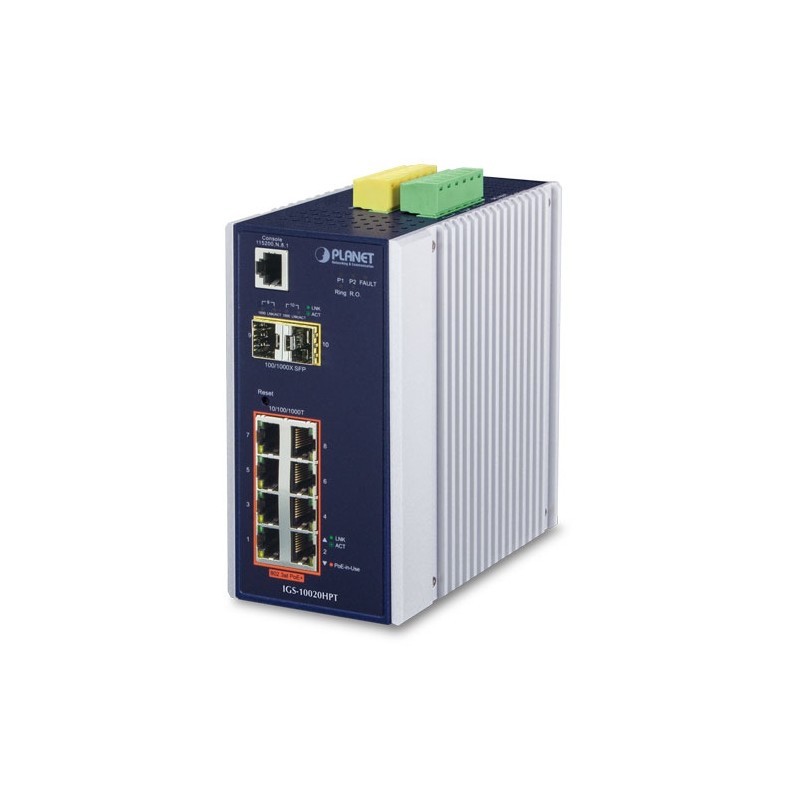

8 port industrial Gigabit switch, RJ45 with PoE+
Intelligent PoE
2 port SFP 100/1000/2500Mbps
Supply voltage: 12 - 48VDC / 7A
PoE power budget: 60W at 12V, 120W at 24V, 240W at 48V
Redundant power supply connection
IGMP snooping, MLD snooping
IEEE 1588 Time synchronization protocol
Modbus TCP real time (SCADA)
Extended temperature range from -40 to +75 °C
DIN rail or wall mounting
Dimensions: 152 x 107 x 77 mm
