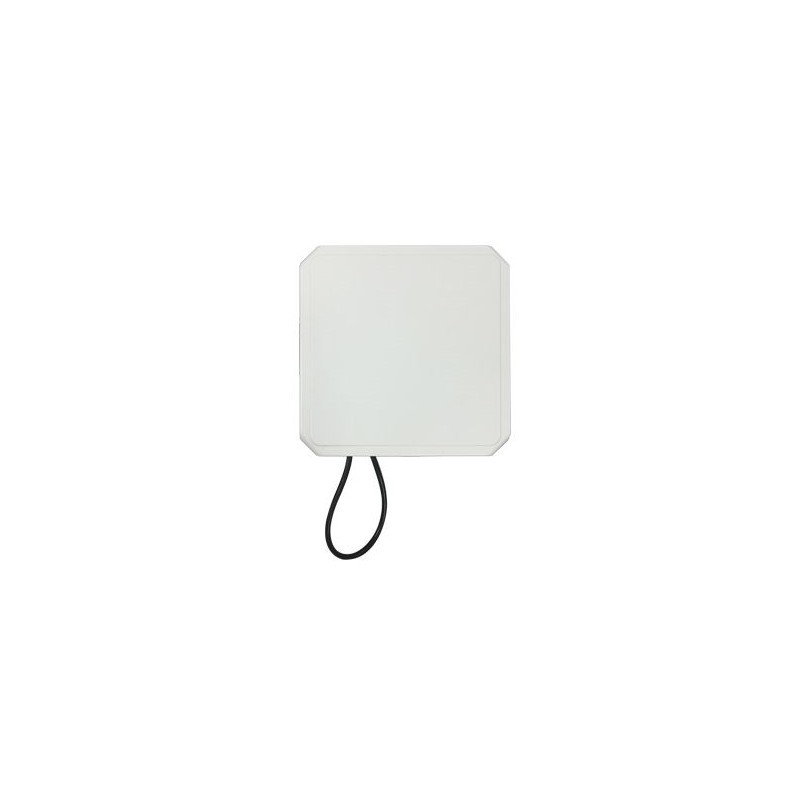

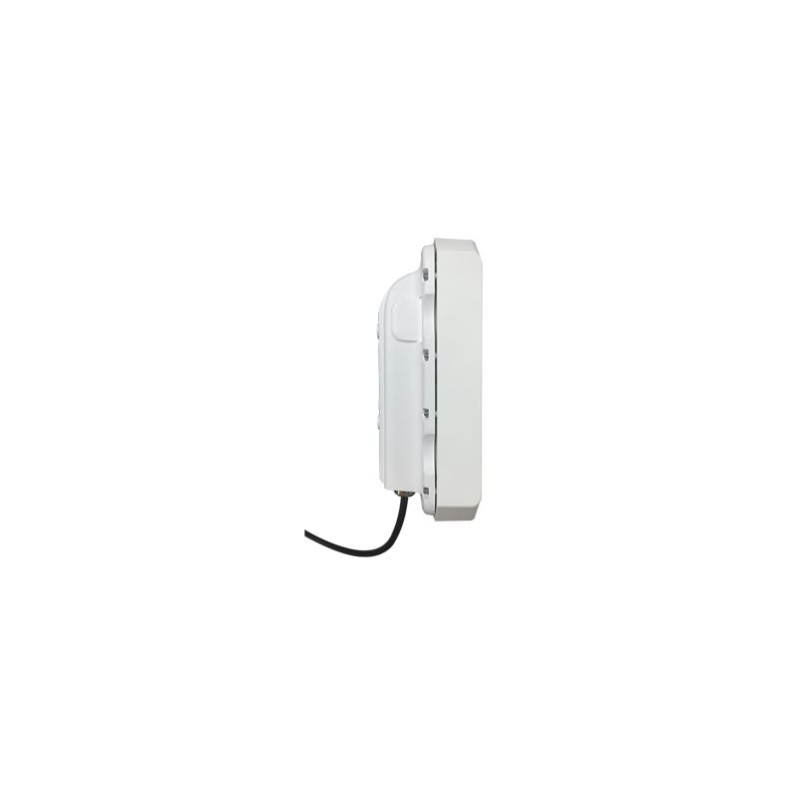

UHF RFID 865MHz Reader / Writes, Outdoor, 0-10 m Reading distance 3 m Writing distance, RS232, LAN, to UHF Tags

Outdoor UHF RFID reads and writes
for Passive UHF 865MHz TAGs
TAG protocol: EPC Class 1 Gen 2
ISO 18000-6C
Reading/writing is controlled via software commands
Software App Platform: API (C ++, C #) Development Kit
Up to 10 m Reading distance, depending on UHF Tag
built-in 8DBI antenna, circular polarity
IP67 Plastic cabinet
Operating temp: -40 - + 75 ℃
150 ~ 240VAC / 50Hz adapter with 12VDC / 3A out
Dim: 259 × 259 x 100mm (L × B × H)

RFID865-8
12,882.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

RFID865-8 is an RFID reader for passive tags (without batteries). The range is up to 10 meters and RFID865-8 can therefore be used for purposes such as payments at garages, bridges and tunnels and for access control in companies, on exhibitions, etc. Based on Impinj R2000 RFID chip, with embedded Linux OS. Supports RS-232, 10m / 100m Ethernet interface.
Option: Interface Possible is Wiegand 26/34 or RS485.
Very suitable for hard working environment. Rugged All in One Design.

Antenne
Built-in 8dBi circular polarization antenna
Dimensioner
259mm×259mm×100mm(L×W×H)
Driftstemperatur
-40℃ ~ +75℃
Forsyning
External poweradapter (150 ~ 240V / 50Hz AC input and DC outputting 12V / 3A); POE optional
Frekvens
865-868 MHz
Hastighed
Op til 30 km/t på tværs af læsefelt
Interface
RS-232 og 10/100Mbit Ethernet interface
IP-Tæthed
IP67 for outdoor use
Max læseafstand
Op til 8 m
Montering
Rørbeslag, justerbart horisontalt og vertikalt
Strømforbrug
2W(Standby), 10W(Working)
Tag-typer
Tag Protocol EPC Class 1 Gen 2(ISO18000-6C)
