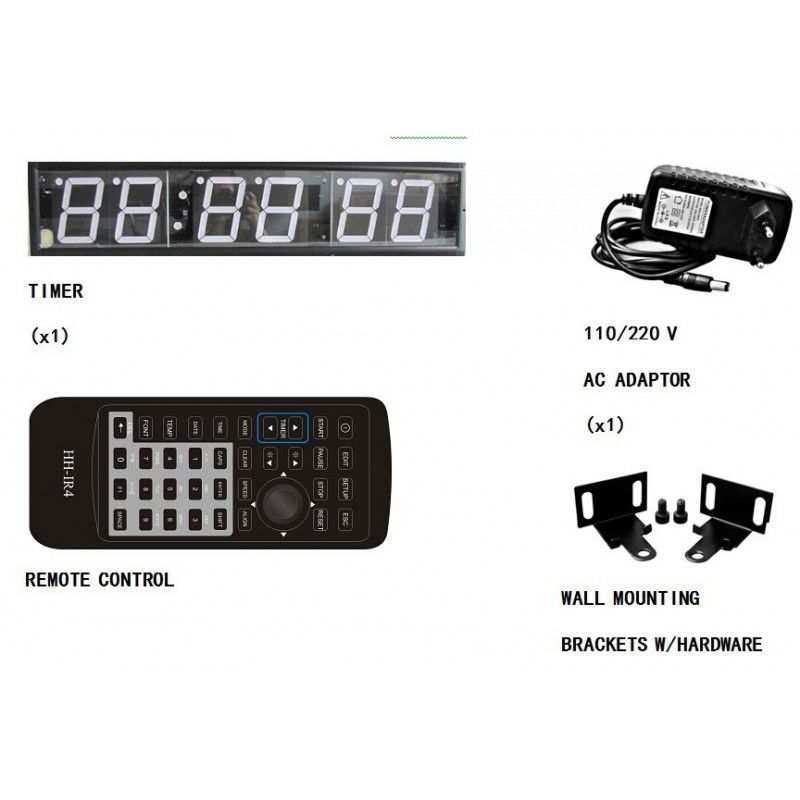

LED timer display med 6 cifre hvor lysstyrken kan justeres via fjernbetjening
Main Functions and Features:
- Clock: HH:MM format - 12/24H.
- Stopwatch: MM:SS:SS (1/10s)/(1/100 s) format – from 00:00:00 up to 99:59:99
- Interval Timer for training + resting workout programs
. Count-Up and Count-Down Training and Resting times
. MM:SS format – from 00:00 up to 99:59
Features:
- Count up (00:00 to 99:59)/ Display Format - [UP MM:SS]/Countdown (99:59 to 00:00)/ Display Format - [dn MM:SS]
- Stopwatch - (00:00:00 to 99:59:00) Display Format - [MM:SS:(1/10s)(1/100s)]
- Save up to 10 (0-9) Preset workout times in Standard Mode i.e. Preset 1 - Countdown 20:00; Preset 2 - Count Up to 15:00, etc (10 Second Countdown for each Timer)
- When in Interval Mode you have 4 preset interval programs in slots #1-4 and you can program and save your own interval programs as well in slots #5-0; No other clock does that!
- Tabata/Intervals - Programmable Work to Rest Intervals. Display Format [F1 MM:SS & C1 MM:SS] where F = Work Period, C = Rest Period. When programming, clock will show F# (F and a number pertaining to the work interval or round, i.e. F1 = 1st round of work, F2 = 2nd round of work, etc.) during the training period, then once work interval is completed C# (C and number pertaining to the rest interval or round) will show for the rest period/interval. For instance: If you program 5 rounds of work and rest, then F1-F5 will show during your work interval and C1-C5 will show during your rest periods.
2 x BNC input
1 x VGA input
1 x S-Video input
2 x BNC output
1 x HDMI
Resolution 1920 x 1080
Contrast 1000: 1
Brightness 250 cd / m2
Designed for 24-hour continuous monitoring of the monitoring system
Industrial quality of metal enclosure
PIP & PBP function
3DNR with noise suppression
Remote ID addressing of remote control
Anti-burn function with automatic image movement
12Vdc supply
24 "TFT monitor LED backlight, IP66
LED backlight
1280 x 1024
300 nits, 5000: 1, 16: 9
Display angle: 178 ° / 178 °
3 x BNC
1 x DVI-I (29-pin DVI-D connectors female)
1 x VGA (15-pin D-sub connector female)
1 x RS232 / 422/485 (software selected terminal blocks)
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
Panel mounting
-15 to 55 ° C (5 to 131 ° F)
CISPR 32, FCC Part 15B Class A
EN 55032/24
weight: 12000 g
647 x 414 x 95 mm
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND < br> Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx -, Rx +, Rx, GND

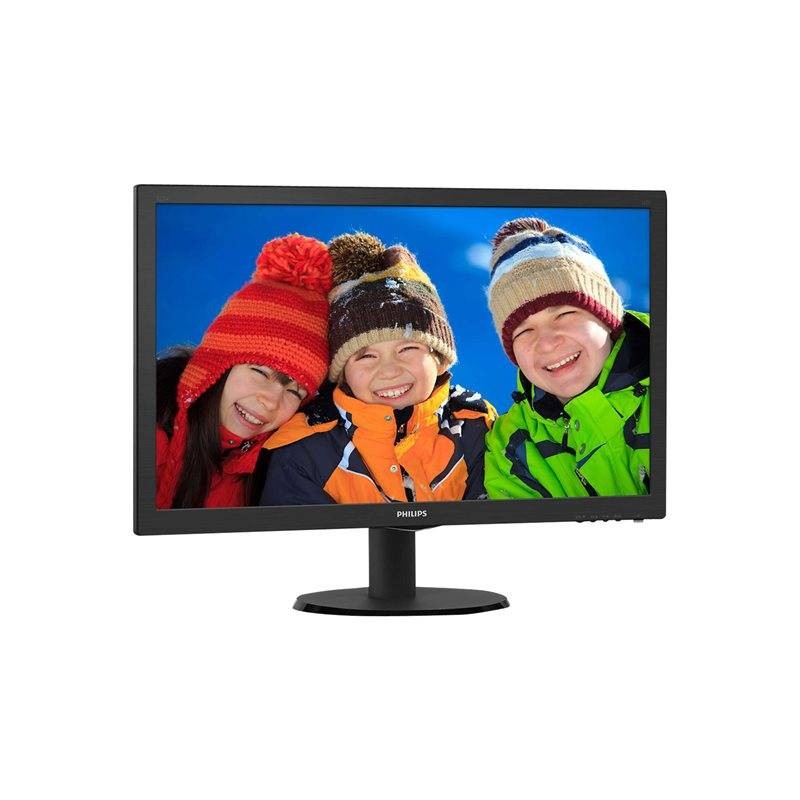

24 "LCD screen with LED backlight
DVI
VGA
Response time: 5 ms
192x1080
energy consumption: 32 kWt
Power consumption: 22W
Format: 16: 9
Pivot rotation
1 x VGA cable included
Power supply: AC 120/230 V
OS support: Windows 8.1
Plug and play
19 "TFT metal monitor LED backlight, IP66
1280 x 1024
350 nits, 1000: 1, 5: 4
Response time: 5ms
viewing angle: 170 ° / 160 °
3 x BNC
2 x DVI-I (29-pin DVI-D female)
1 x VGA (15-pin D-sub femlae)
1 x RS232 / 422/485 (software selectable terminal blocks)
100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55 ° C (5 to 131 ° F)
weight: 9,700 g
483 x 444 x 82 mm
Panel mounting
RoHS, CRoHS, WEEE
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx- , Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx-, Rx +, Rx-, GND
