24 "LCD TFT w / LED widescreen monitor, Full HD, HDMI, DVI-D and VGA input, 16: 9 format
24 "LCD / TFT Display
1920 x 1080P Full HD - 16: 9 Format
Widescreen
HDMI, DVI-D and VGA Input
With VESA100 Mounting Holes

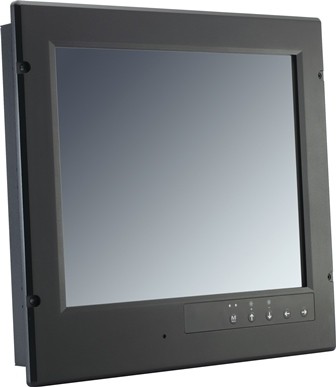

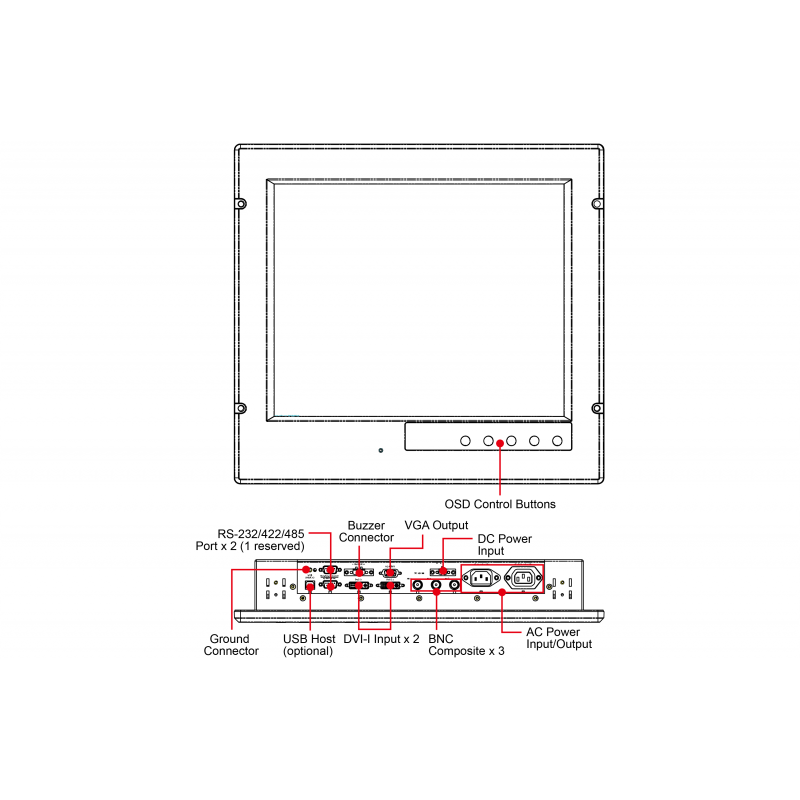

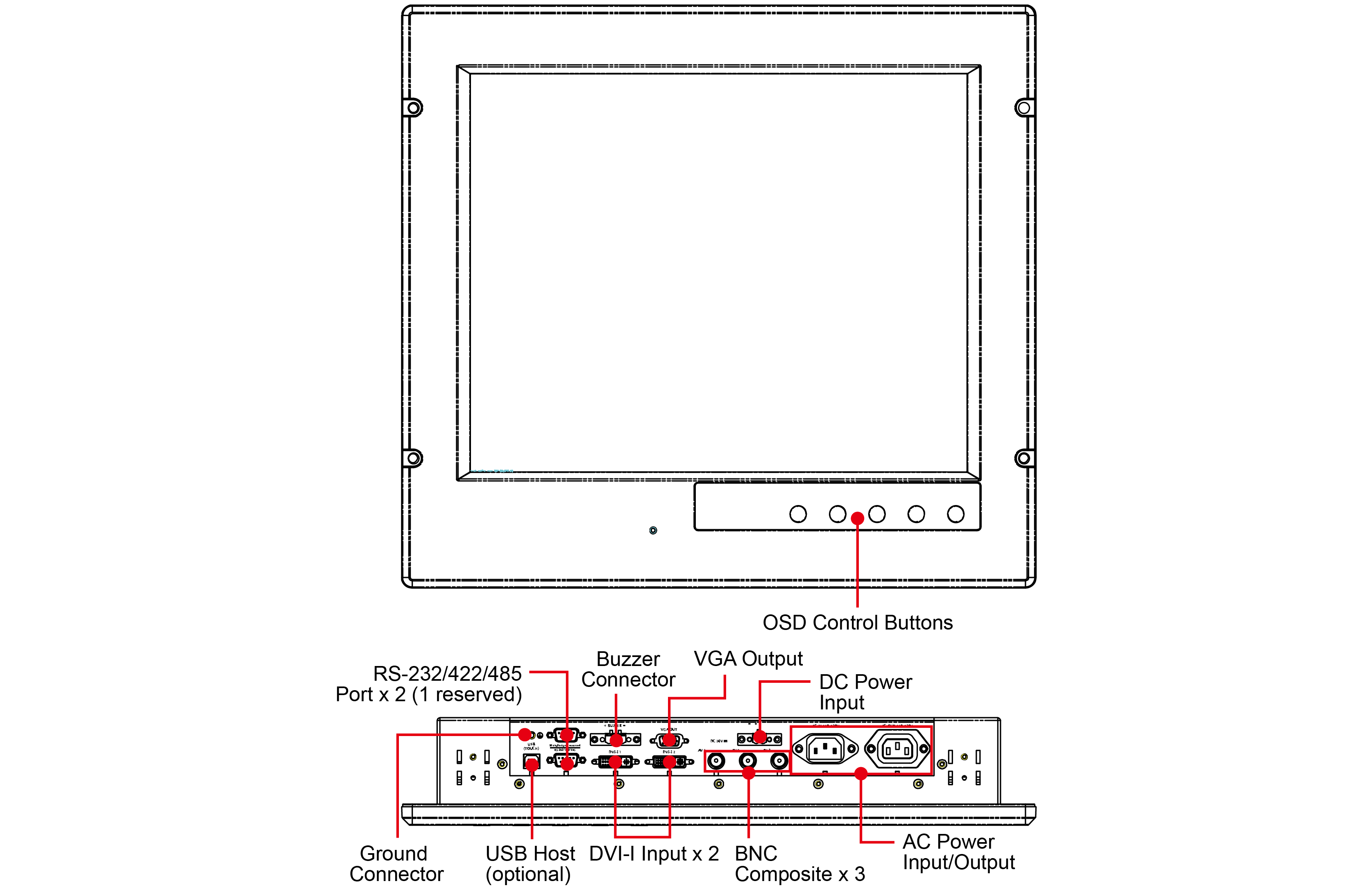

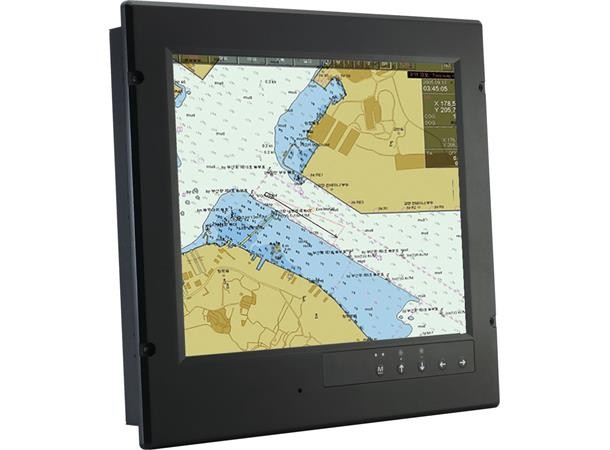

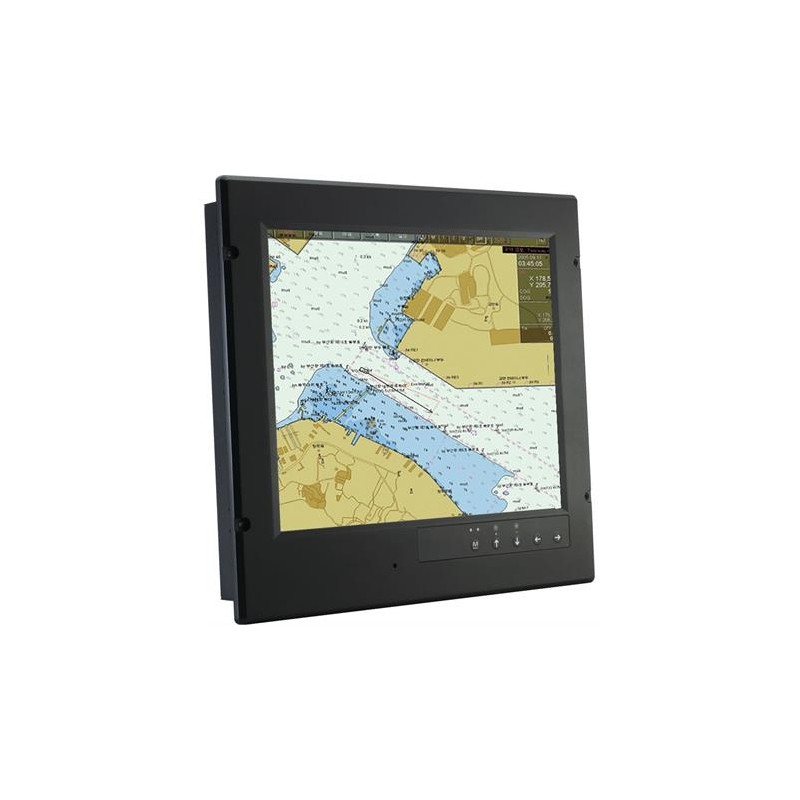

19 "TFT metal monitor LED backlight, IP66
1280 x 1024
350 nits, 1000: 1, 5: 4
Response time: 5ms
viewing angle: 170 ° / 160 °
3 x BNC
2 x DVI-I (29-pin DVI-D female)
1 x VGA (15-pin D-sub femlae)
1 x RS232 / 422/485 (software selectable terminal blocks)
100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55 ° C (5 to 131 ° F)
weight: 9,700 g
483 x 444 x 82 mm
Panel mounting
RoHS, CRoHS, WEEE
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx- , Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx-, Rx +, Rx-, GND
24 "LCD / TFT Display
1920 x 1080P Full HD - 16: 9 Format
Widescreen
HDMI, DVI-D and VGA Input
With VESA100 Mounting Holes
Optoma ES551 DLP PC 3D Ready Projector
2800 Lumens,
5000:1 Contrast
1 cm DLP Projector
Digital Inputs: HDMI
Opløsning: 800x600 Aspect Ratio:4:3 (SVGA)
Display: 1 cm DLP (1)
19 "TFT SXGA 5: 4 LCD Capacitive Touch
50,000 HRS LED Backlight Lite
Resolution Up to 1280 x 1024 (SXGA)
1x VGA, 1X DVI-D, 1x DisplayPort
350 NITs Brightness
Aluminum Front
IP65 Compatible front
9 ~ 48VDC Via 3-pin terminal Block
Panel and Vesa Mount
13.3 "IPS HD display with touch and metal casing
1920 × 1080 - 16: 9 format
10-point capacitive touch
Brightness 300 cd / ㎡
Connectors: HDMI, DVI, VGA, BNC
USB (for touch)
1 x Audio (BNC)
1 x Composite Video (BNC)
Supply voltage: 7-24VDC
AC adapter included
Power ≤8W
operating temperature -20 ℃ ~ 60 ℃
Dimensions 333.5 × 220 × 34.5mm (W x H x D)
VESA 75 and 100 meters 1.9kg
