5 ports Industrial 10/100 / 1000Mbit switch + 2 x Gbit SFP slot, PoE + (30W), DIN rail, -10 - + 70 ° C, 48 - 55VDC

4 x 10/100 / 1000Mbit, PoE + (30W) IEEE 802.3at
1 x 10/100 / 1000Mbit
2 x 100 / 1000Mbit SFP slot
14Gbps Back Plane
8K MAC Address Table
10.0 Kbytes Jumbo Frame
Overvoltage 2kV DC
ESD Protection 6kV DC
Redundant Power Input Design: 48 - 55VDC
1 Relay Output for Power Error Alarm
IP30 Rugged Metal Cabinet
DIN-Rail and Wall Mount including
Operating temperature: -10 - + 70 ° C

ANR-LNP-0702G-SFP
4,644.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

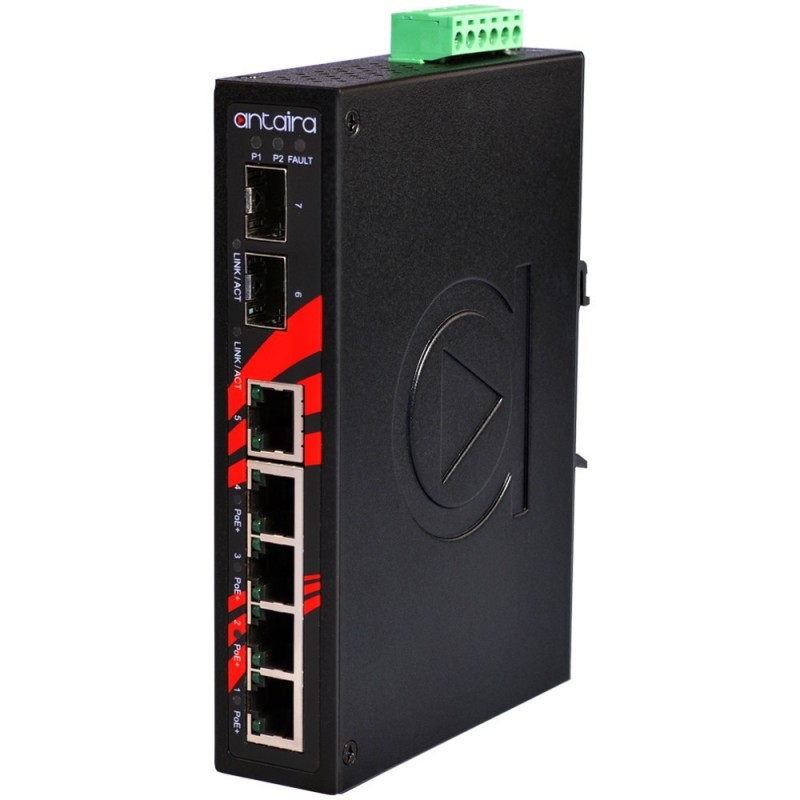

Antaira Technologies’ LNP-0702G-SFP is an industrial gigabit PoE+ unmanaged Ethernet switch featuring 4 x 10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3af/at for a maximum of 30W/port and 1 x 10/100/1000Tx Ethernet port and 2 x 100/1000Mbit SFP slot. The LNP-0702G-SFP is an ideal solution for rapid, unmanaged gigabit network expansion with PoE+ capabilities.

The LNP-0702G-SFP is IP30 rated and DIN-rail mountable and has a standard temperature range -10°C to 70°C. This product also supports a voltage power input range of 48~55VDC. It also provides Ethernet connectivity with PoE functions for outdoor or harsh industrial automation application environments, such as, security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.

Dimensioner
30 x 99 x 142mm
Driftstemperatur
-10 - +70°C
Fiber
2 x 1Gbps SFP slot
Forsyning
48 - 55VDC, redundant
Kabinet
Metal, IP30, DIN-beslag,
Maks. effekt
110 Watt@48VDC, 130 Watt@51-55VDC, maks. PoE
Netværk
4 x RJ45 10/100/1000Mbps PoE+, 1 RJ45 x 10/100/1000Mbps
PoE
30 Watt
