Media converter 1000Mbit Multi Mode fiber SC, 10/100/1000Mbit RJ45, PoE+
Media converter 1000Mbit Multi Mode fiber SC, 10/100/1000Mbit RJ45, PoE+
Previous
Next
Media converter 1000Mbit Multi Mode fiber SC, 10/100/1000Mbit RJ45, PoE+
Media converter 1000Mbit Multi Mode fiber SC, 10/100/1000Mbit RJ45, PoE+

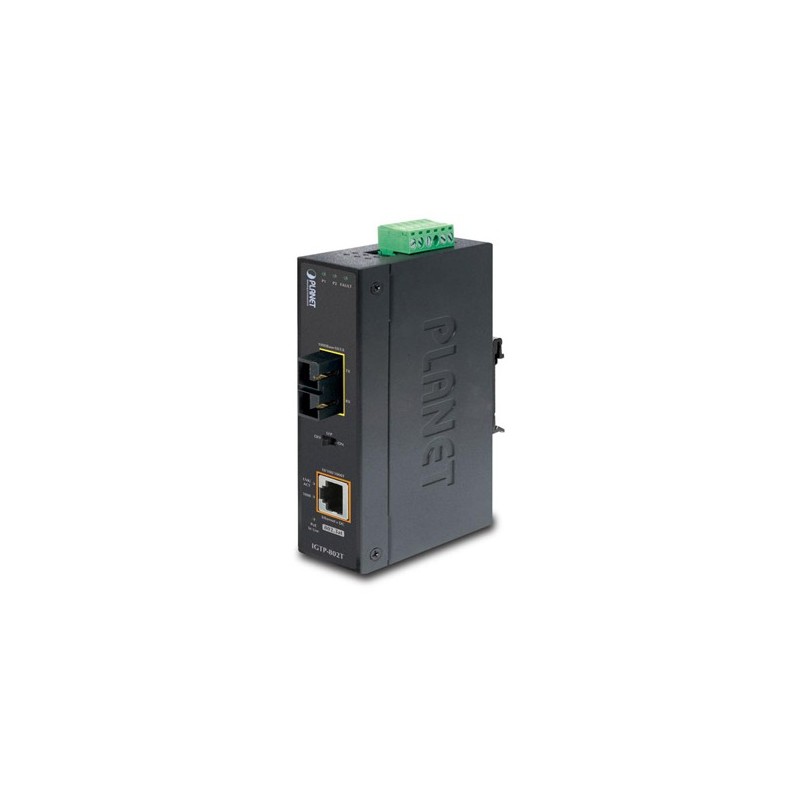

Media converter RJ45 to fiber. RJ45 10/100/1000 Mbit. Fiber 1000Mbit SC Multi Mode and supply voltage 12-48VDC with PoE+ out

1000Mbit Multi Mode Media Converter with SC connector to RJ45
1000BASE-SX / LX to 10/100/1000BASE-T 802.3at PoE
1 x RJ45 10/100/1000base-T with PoE+ (30W)
1 x 1000base-SX/LX Fiber - SC connector Multi Mode
Multi Mode 62.5/125my / 50/125my
IEEE 802.3/802.3u/802.3ab/802.3z/802.3x Ethernet standard
DIN rail mounting
Supply voltages: 12 - 48VDC or 24VAC with PoE out
PSU not included
IP30
Operating temperature: -40°C to +75°C

1,588.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number ETH-RJ45G-SC
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -40°C to 75°C
IP-Tæthed IP30 metal case
PoE 30 watt<br>IEEE 802.3at, 802.3af
Porte 1 x 1000base-x sc 1 x 10/100/1000base-t rj45
Strømstyrke 12 ~ 48V DC/24V AC
Weight 510g (500g)
Dimensioner 32 x 135 x 87,8 mm (W x H x D)

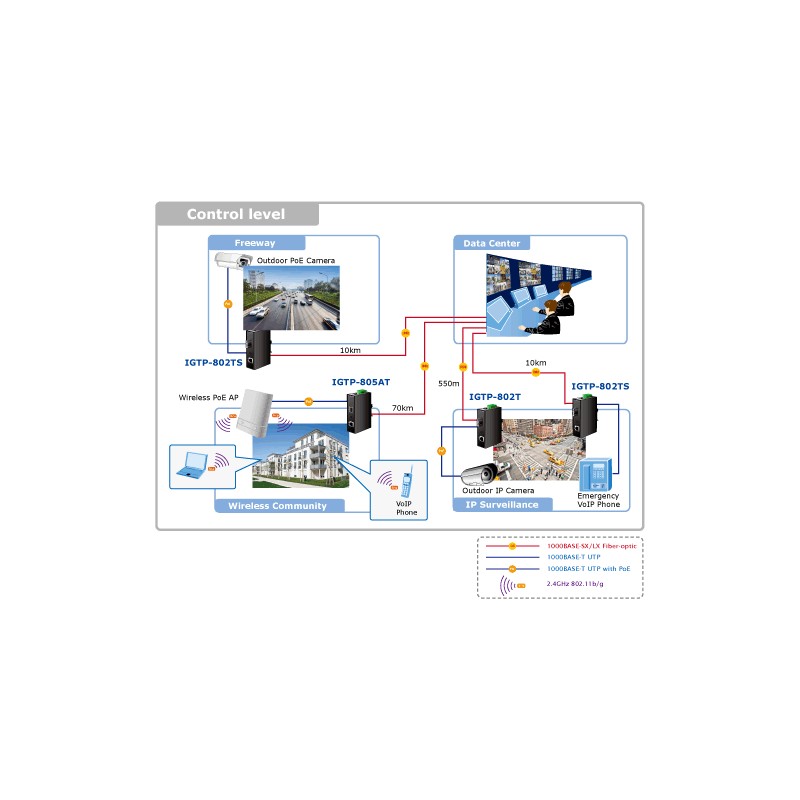

Industrial Gigabit Media Converter combines Ethernet media conversion ( from 1000Base-X to 10/100 / 1000Base-T ) with 802.3at The High Power over Ethernet (PoE) injector is delivered in an IP30 robust strong case. Designed for network equipment that requires sufficient and reliable power input, it supports up to 30 watts of power and data transmission are both delivered to remote based devices over a single Ethernet cable. Its 1000Base-X fiber optic uplink port provides long distance, high speed and stable data transmission to external base network. The special and convenient power supports 24 / 48V DC power inputs for power redundancy and operational flexibility. To be able to operate under temperatures in the range from -40 to 75°C
