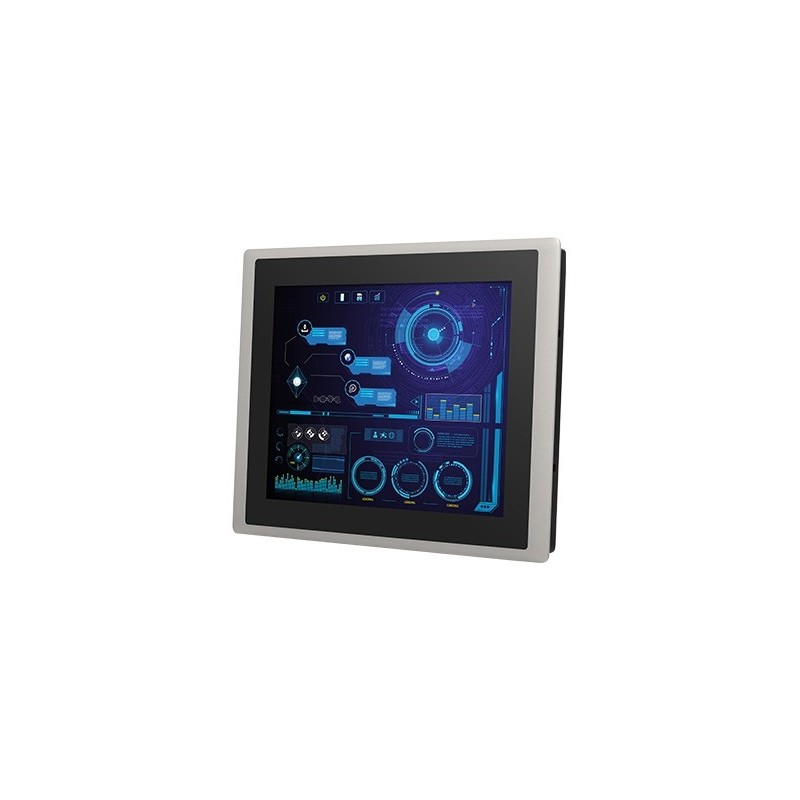

10.4" TFT-LCD SVGA display
Resolution :1024 x 768, Brightness 470 cd/m²
Intel Alder Lake-N processors I3, Intel® Core™ i3-N305 8 Cores Up to 3.80 GHz, TDP 15W
Resistive 5-wire (on request Capacitive touch)
DDR5 SO-DIMM, max. 16 GB memory
Storage: 1x 2.5", 1x M.2
1x M.2 E for WiFi/Bluetooth
1x M.2 B for 5G/GNSS/SATA
Ethernet: 2x 2.5G
1x USB 2.0
3x USB 3.2
1x DisplayPort, 1x VGA
8xDIO, (4in/4out), 10-Pin Terminal
IP65 front panel for protection
Material aluminum
Dimension: 295 x 227.3 x 56.2 mm
Panel/VESA/Rack mount
Wide voltage 9 to 48VDC, comsuption 4.99W (Typ.), remote power ON/OFF
-20°C to 70°C (requires special components SSD/RAM)
EMC Emission / Immunity Standard for Industrial Environment : EN61000-6-4, EN61000-6-2
| Memory Type | DDR5 |
|---|---|
| Max. Memory Capacity | 16 |
| Storage | 1x 2.5" Bay & 1x M.2 Key |
| Power Input | DC 9~48V |
| Video | 1x DP, 1x VGA |
| USB | 3x USB 3.2 & 1x USB 2.0 |
| Serial | 2x RS-232/422/485 |
| LAN | 2x 2.5GbE LAN, RJ45 |
| Storage Temp. | -30°C to 80°C |
| OS SUPPORT | Windows®11, Windows®10, Ubuntu Desktop 22.04 LTS |
| Skærm | 10.4" 1024 x 768 |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| Weight | 2,24kg |
| Dimensions | 295 x 227.3 x 56.2 mm |
EMI:
• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS:
• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety:
• UL, cUL, CB, IEC, EN 62368-1
