Welcome to DANBIT IT Professionals
B2B – Business to business only

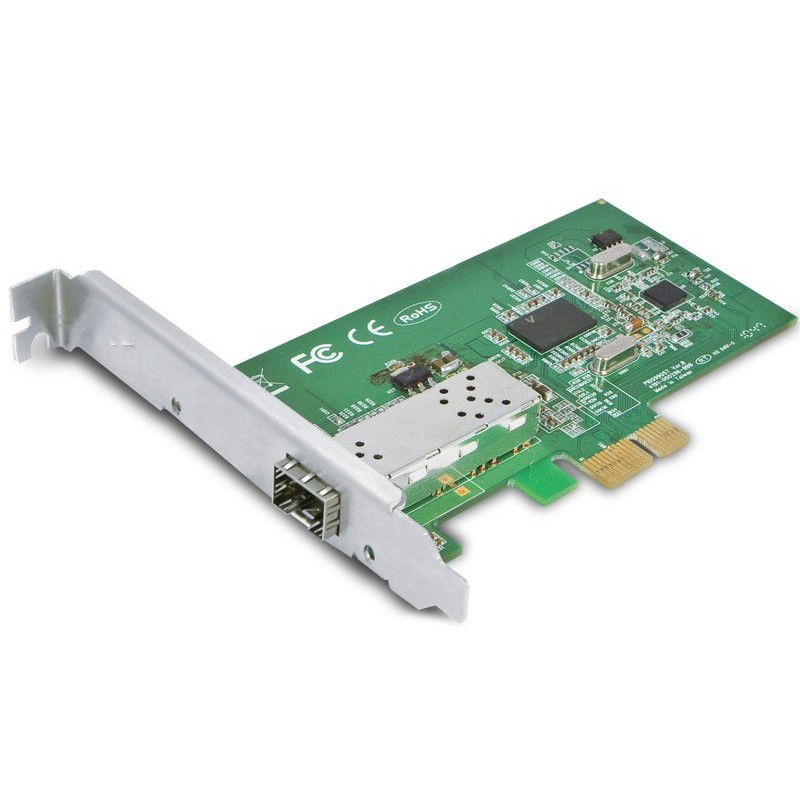

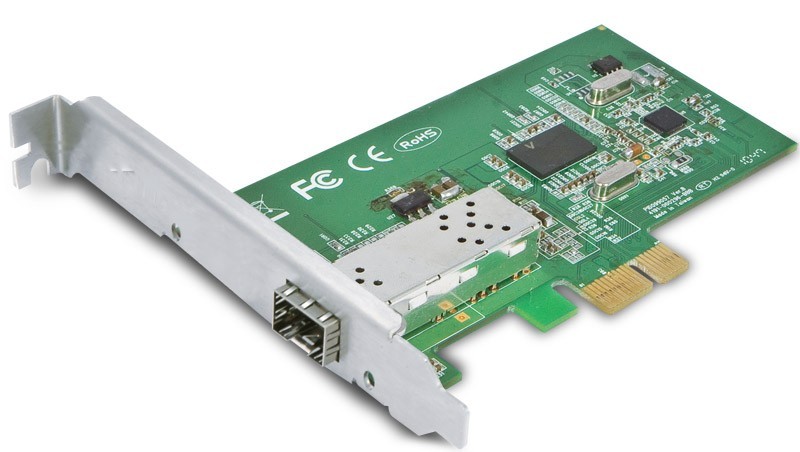

1000 Mbps PCI-Express Net Card for SFP
Buy 1000Mbit SFP Module Single Mode or Multi Mode
Driver For: XP / 2003, Vista / 2008, Win 7, Linux 64-bit, Mac OS X
PCI Express, 1 Lane
SFP module can be 62.5/125my or 50/125my
Operating temperature: 0 - +65°C
Dim: 121.4 x 119.5 mm
Hastighed | 1000 Mbps, fuld duplex |
---|---|
OS SUPPORT | Windows Server 2003, Windows Server 2008 Windows XP, Windows Vista™, Windows 7 Linux 2.4, Linux 2.6, Linux 64-bit Redhat Enterprise Linux 4.7 & 5.3 Mac OS X 10.4, 10.5 and 10.6 Intel-based Mac computer |
PCI | x1 bus |
Standarder | Følger IEEE802.3z 1000Base-SX/LX, IEEE802.3x Full Duplex og IEEE802.1q VLAN tagging |
Understøtter | 9K Jumbo Frame |
Gigabit netkort til single- eller multimode fiber, alt afhængig af hvilket SFP-modul, der bliver isat.
Intel 82576EB
PCI Express v2.0 (2.5GT / s), X 4, or x8 operable in x16 slots
RJ45 (copper)
10/100/1000 Mbps
IMPI pass-through , PXE remote boot, VLAN filtering
OS support: Win 7 / Win 8 / Win 8.1 / Win 10 3264Bit
3.6W
Operating Temperature: 0 ~ 55 ℃

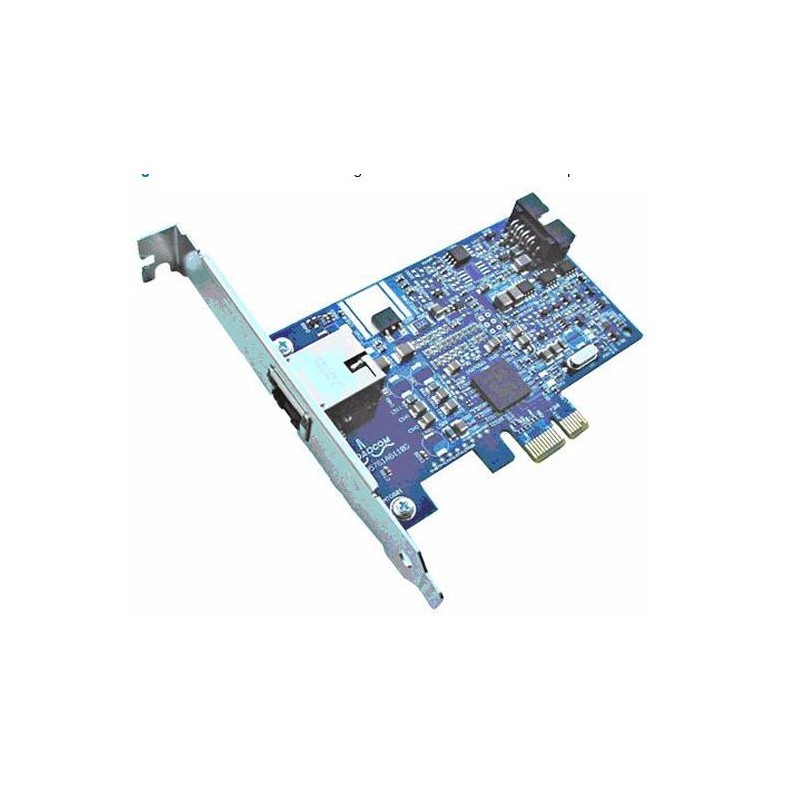

Chipset: Broadcom BCM5761
Interface: PCI Express x1 (some versions use x4 or x8)
Network speed: 10/100/1000 Mbps (Gigabit Ethernet)
Port type: 1 x RJ45 (copper)
Controller: NetXtreme Gigabit Ethernet controller
Supported features: PXE boot (Preboot Execution Environment), Wake-on-LAN (WoL)
TCP/UDP/IP checksum offload
VLAN tagging (802.1Q)
MSI-X support (Message Signaled Interrupts)
ACPI (Advanced Configuration and Power Interface)
Drivers available for:
Windows Server
Linux (via kernel or Broadcom driver)
VMware ESXi (depending on version)

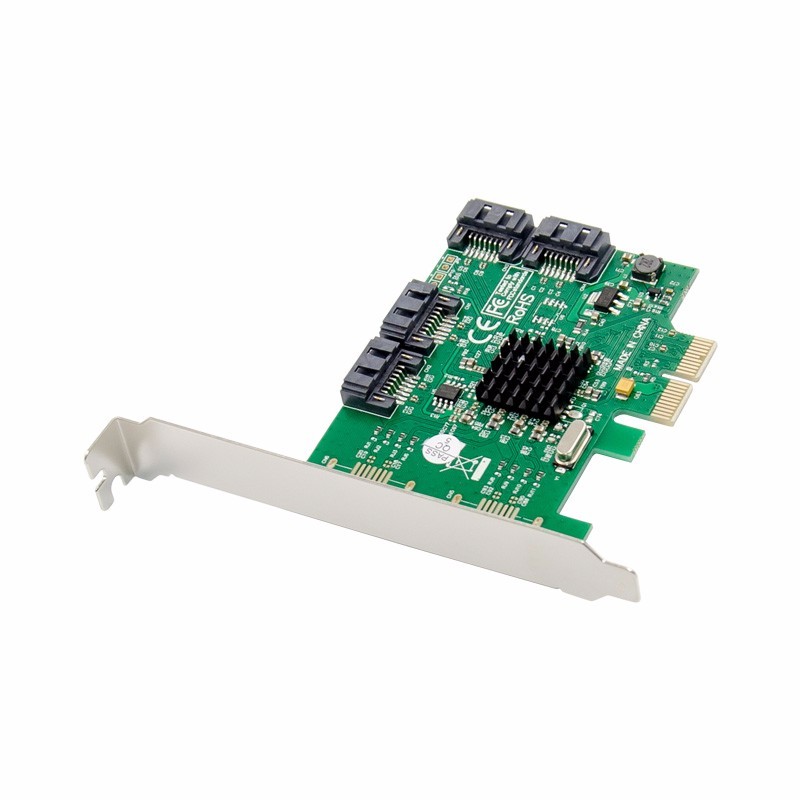

Compliant with Serial ATA 3.0
Marvel 88SE9230 processor to 4 x internal SATA connector
communication speed: 6/3 / 1.5 Gbit
Raid 0, 1, 10, Hyper duo
OS support : windoes XP / vista / server03 / server08 / win7 / 8/10 / dos / linux
Mirror data from SSD mechanical hard drives for databeskyttelske
Cipset: WCH384L
maximum rate: 1.5 Mbps to 4 x RS-232 serial expansion
FIFO: 256-bytes (for each port)
data rate: 115kbps (for each port)
OS support: Windows 98SE / ME / NT 4. 0 / Server 2000
XP / Vista / Server 2003 / Win 7 / Win 8 / Win 10, DOS, Linux
Intel X550 chipset
PCIe v3.0 (8.0GT/S)
Automatically negotiation between 1GbE, 2.5GbE, 5GbE and 10GbE
2 x RJ45 ports
Standard Cat 6 network cables
RJ-45 Category-6 up to 55mm, Category-6A up to 100m
Support Windows 64 bit (7, 2008 R2, 8, 2012, 8.1, 2012 R2, 10, 2016
Linux(RHEL6.x/7.x, SUSE11.x/12.x, Ubuntu*14.x/16.X) FreeBSD
