10Gbit SFP+ modul 10.000Mbit, multimode, LC, up to 300m
MiniGBIC / SFP+
10 Gigabit
LC
850 nm
Up to 300 m multimode

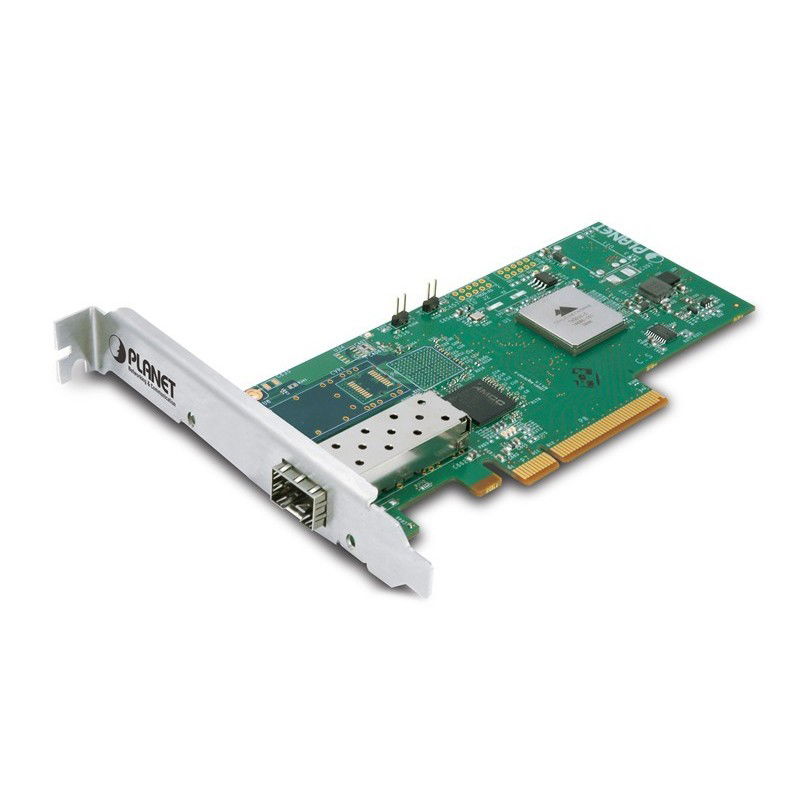

10 Gbit PCI-Express netkort med SFP+
10 Gbit PCI-Express fiber netkort til SFP+.
Til single- eller multimode fiber, PCI Express.
10 Gigabit netkort til single- eller multimode fiber, op til 10 km kabel afhængig af hvilket SFP+ modul, der bliver isat.
MiniGBIC / SFP+
10 Gigabit
LC
850 nm
Up to 300 m multimode
MiniGBIC / SFP+
LC
1310 nm
up to 10 km, single-mode
Intel X550 chipset
PCIe v3.0 (8.0GT/S)
Automatically negotiation between 1GbE, 2.5GbE, 5GbE and 10GbE
2 x RJ45 ports
Standard Cat 6 network cables
RJ-45 Category-6 up to 55mm, Category-6A up to 100m
Support Windows 64 bit (7, 2008 R2, 8, 2012, 8.1, 2012 R2, 10, 2016
Linux(RHEL6.x/7.x, SUSE11.x/12.x, Ubuntu*14.x/16.X) FreeBSD
2 Ports SFP PCI Express
10 gigabit ethernet
Interface: SFP fiber optic
Chipset: Intel 82599ES
OS Support: Win 7/8 / 8.1 / 10 / DOS / Linux
Power consumption: 5.5W
Certificates: FCC, CE, RoHS
Operating temperature: 0-55 degrees
2x 10Gbit Ethernet RJ45
Max. Data transfer 20000Mbit/s
Net standard IEEE 802.1Q,IEEE 802.3,IEEE 802.3ad,IEEE 802.3x
Vollduplex 10,100,1000,10000 Mbit/s
Full Duplex support
Chipset BCM57810S
Operates at 1Gbps/10Gbps, auto-negotiation, on both ports
10GBASE-T connectivity supporting up to 100 meters with CAT 6A cabling
Up to 40Gb/s bi-directional near line rate throughput
Hardware acceleration TCP/IP/UDP stateless offloads, as well as for TCP Offload Engine (TOE)
Superior small packet performance
SR-IOV
Active Health Systems support
PXE, Jumbo Frames, Checksum & Segmentation Offload, IPv6 and RSS
On chip temperature monitor (Sea of Sensors)
Field replaceable and upgradeable
Support for Preboot eXecution Environment (PXE)
Chipset: Broadcom BCM5761
Interface: PCI Express x1 (some versions use x4 or x8)
Network speed: 10/100/1000 Mbps (Gigabit Ethernet)
Port type: 1 x RJ45 (copper)
Controller: NetXtreme Gigabit Ethernet controller
Supported features: PXE boot (Preboot Execution Environment), Wake-on-LAN (WoL)
TCP/UDP/IP checksum offload
VLAN tagging (802.1Q)
MSI-X support (Message Signaled Interrupts)
ACPI (Advanced Configuration and Power Interface)
Drivers available for:
Windows Server
Linux (via kernel or Broadcom driver)
VMware ESXi (depending on version)
