PCI card with 96 TTL I/O channels and 3 counters
PCI interface
96-CH digital TTL/DTL inputs/outputs
Emulates 4/2/1 industry standard 8255 PPI (mode 0)
Direct interface with OPTO-22 compatible I/O modules
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source

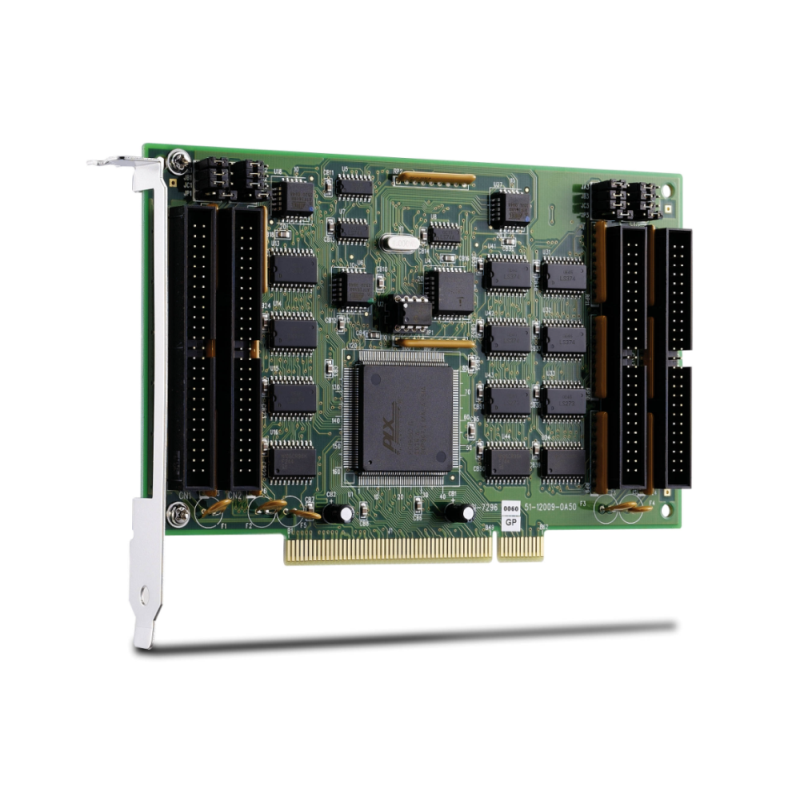

Adlink PCI-7296
DIO96CTC-PCI (ADLINK PCI-7296) are high-density parallel digital I/O boards with 96/48 I/O channels. The header connectors are fully compatible with the industry Opto-22 standard. Thus, DIO96CTC-PCI can utilize the Opto-22 external devices. The DIO96CTC-PCI devices emulate mode 0 of the industry standard 8255 programmable peripheral interface (PPI) chips. The DIO96CTC-PCI provides 4/2 PPI chips respectively. Each PPI offers three 8-bit ports: Port A, Port B and Port C. The Port C is divided into 2 nibble-wide (4-bit) ports. The DIO96CTC-PCI devices have programmable timers/counters. One 16-bit counter is available for event counting, while the other 32-bit timer is available for timed interrupt generation. The DIO96CTC-PCI devices provide multiple programmable interrupt sources from DIO channels, as well as the output of the timer.
8 af de digitale udgange kan trække op til 500mA pr. kanal
Antal af ind- og udgange kan udvides til 32
Supports a 32-bit 5 V PCI bus
8-CH relay outputs
8-CH isolated DI
On-board LED indicators for relay status
On-board relay driving circuits
Relay output stats read back
On-board low-pass filtering for DI
Extendable up to 32-CH relay outputs
With condition detector on all 32 inputs
optoisulated inputs - 2.5kv - Common frame
logic: Low 0-3,2vdc, High: 3.5 - 24VDC
16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,
Supports a 32-bit 5 V PCI bus
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output
