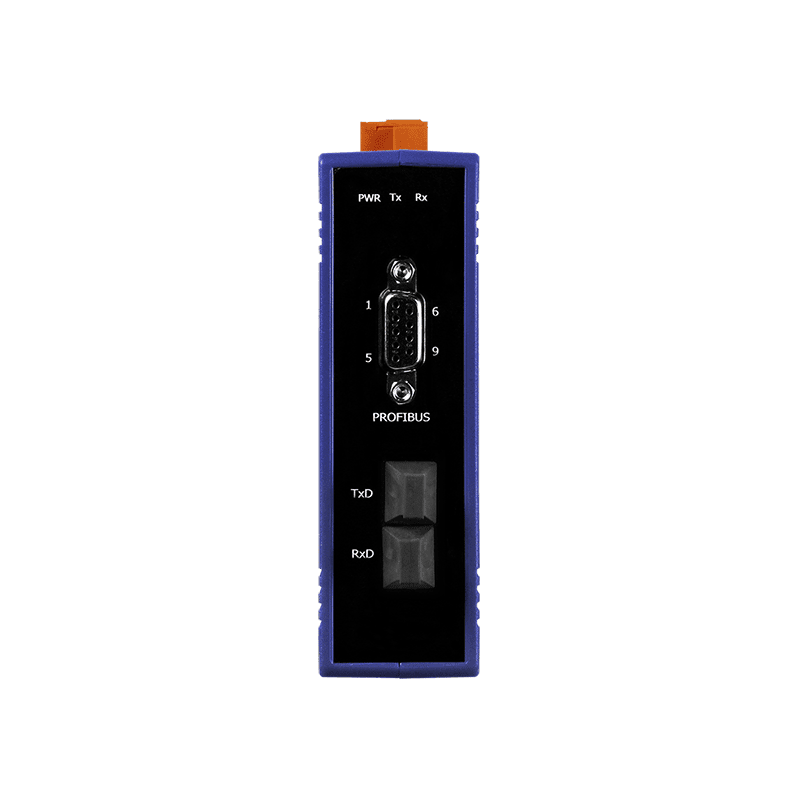

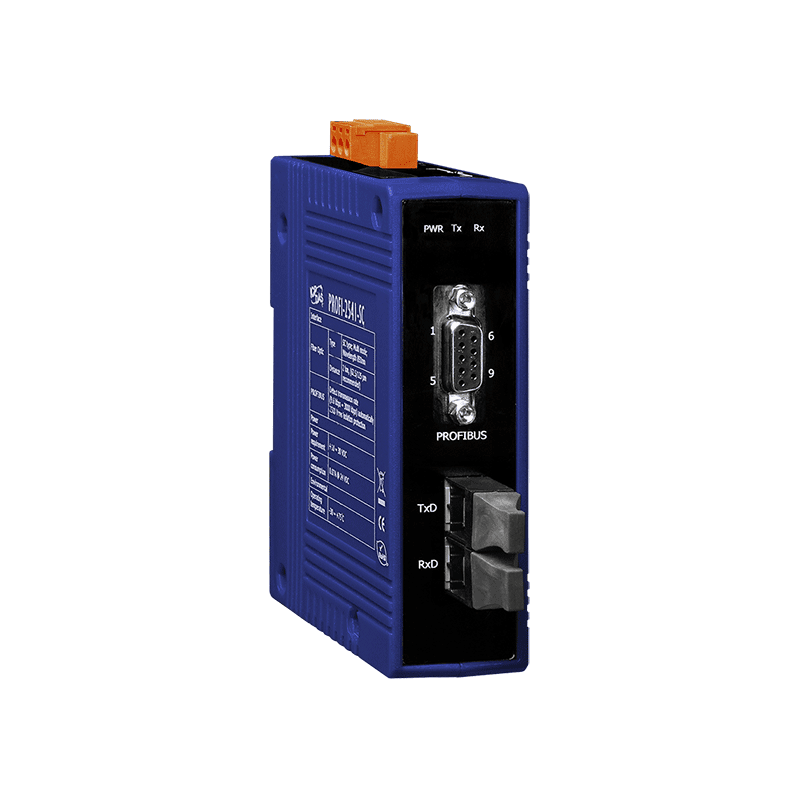

PROFIBUS to Fiber Optic Converter, SC Multi-mode, 3Mbps, 3000VDC Isolation

PROFIBUS TO HART Convert, Gateway
4 x HART Canals
Max. 2 pcs. HART Masters
Point-to-Point or Multi-Drop HART Mode
Possibility of connecting 15 HART modules
PWR / RUN / ERR indication LED
Built-in Watchdog
4 kV ESD Protection
Operating temperature -25-75 ℃
for DIN rail mounting

Gateway from Ethernet slave to PROFIBUS master
protocol / hierarchy: DP-V0 Slave
PROFIBUS Speed ​​(Kbps) in 10 step from 9.6 - 12000
speed setting is automatic
Max. Input data length: 240 byte
Max. Output data length: 240 bytes
Address setting: 0 ~ 126 Set by DIP switch or EEPROM
Ethernet protocol: TCP / UDP server / client
Configuration: Web Configuration
