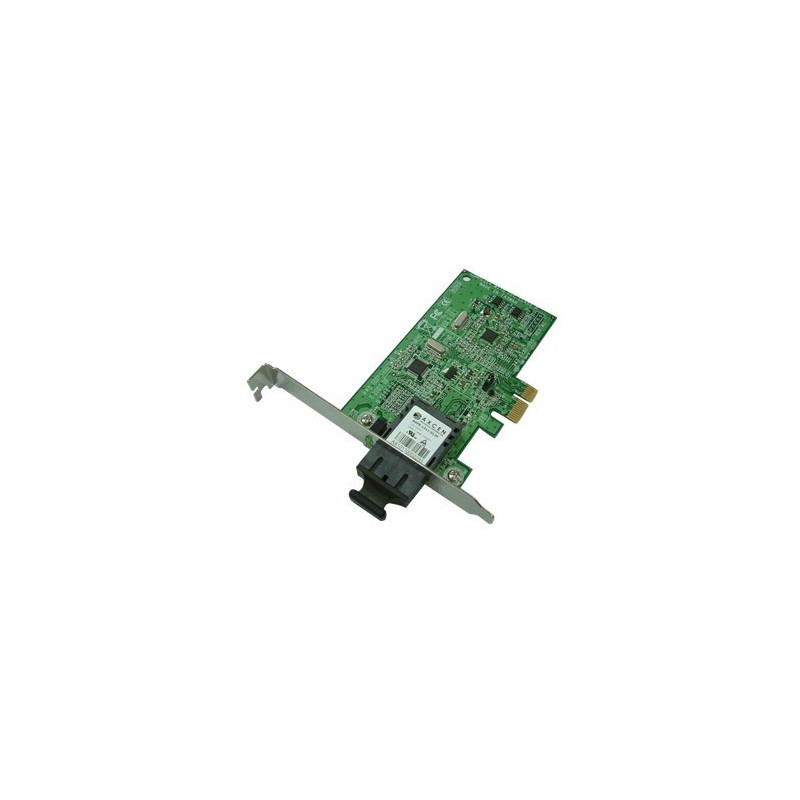

Fast Ethernet Fiber NIC with PCI Express.
Technical Specification
Standards: IEEE 802.3u Fast Ethernet 100Base-FX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLANs
Connector: 1310nm SC multi-mode (Default)
1310nm LC multi-mode
1310nm SC, LC single-mode
1550nm SC, LC single-mode
Option is available upon request
Fiber Optic Cable: 62.5/125, 50/125mm multi-mode
9/125mm single-mode
Data Transfer Mode/Speed:
Full duplex with flow control
100Mbps speed
Diagnostics LED on Bracket:
LINK/ACT
FDX
Bus Slot: PCIe 1.1 Compliant
Power Requirement: Max. 52.4W, + 3.3VDC@ 1.50.7A
Ambient Temperature: 0° to 50°C
Humidity: 5% to 90%
PCB Dimensions: 108(L) x 68.5(H) mm
Weight 0.05Kg
Emission: Comply with FCC Part 15 Class B & CE Mark Approval
Software Support:
Windows 98/ME
Windows 2003 Server
Windows 2008 Server
Windows XP
Vista
Windows 7
Novell Netware 5.x, 6.x
Linux
PXE & RPL Boot ROM
