RS232 / RS422 / RS485 Slave units are connected to PROFIBUS DP. With optional address.
Sæt udstyr med RS232, RS422 og RS485 interface på et Profibus system.

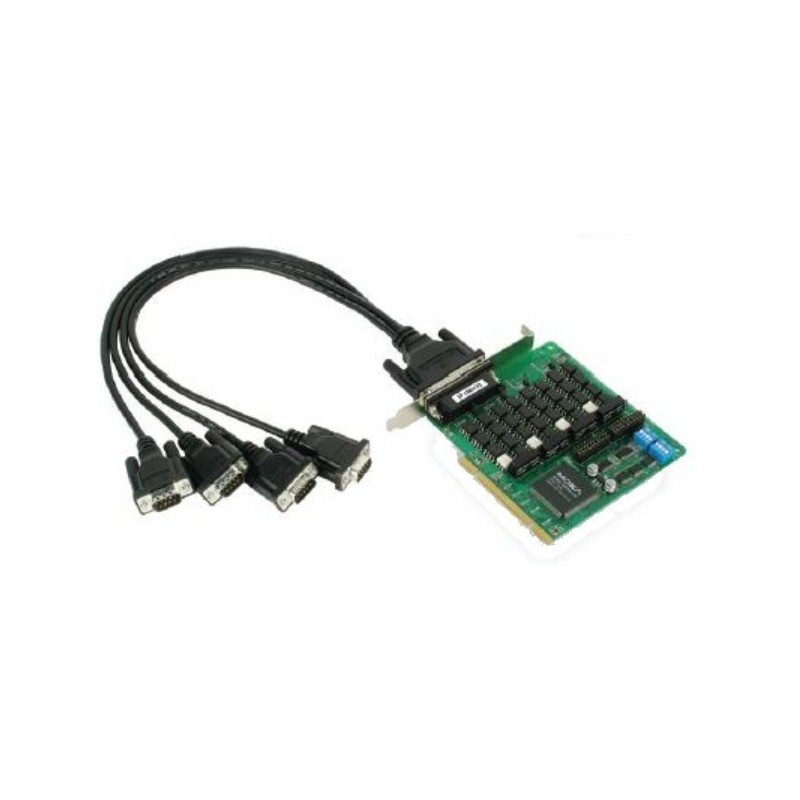

MOXA Serial Card
4 Ports
Universal PCI
2KV Isolation
128-byte FIFO
3.3 / 5V PCI and PCI-X Combatable
Port 1 and 2 Supports RS232 / 422/485
Extended Temperature -40 to + 85 °
Moxa CP-134UI, DB9
Hardware
I/O controller 4x 16C550C or compatible
Connector type Male DB9
Interface
Bus interface 32-bit Universal PCI, for 3.3V and 5.0V expansion Slots
Serial interface RS422 / 485
No. of ports 4
Signals RS422 TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND RS485 Data+/-, GND
RS485 data control Auto (Automatic Data Direction Control) or by RTS
Built-in termination resistor RS422 120 Ohm
RS485 120 Ohm, jumper enable / disable
Performance
Speed 50 - 921.6 Kbps
Max. no. of ports 16 (4 boards)
Configuration
Parity None, even, odd, space, mark
Data bits 5, 6, 7, 8
Stop bits 1, 1.5, 2
IRQ Assigned by BIOS
I/O address Assigned by BIOS
Power and Environment
Power requirement 880mA max.(+5V)
Isolation Protection 16KV ESD protection
2 KV Optical Isolation
Operating Systems supported Vista, XP, Windows
Sæt udstyr med RS232, RS422 og RS485 interface på et Profibus system.
1 channel software-selectable RS-232/485/422 port
Baud rate: 1200 - 230,400 / RS485 921,600
Screw terminals for Data
Screw terminals for DC supply
1 x 10/100 Mbps RJ45 Fast Ethernet port
Supports TCP Server/Client, UDP, Virtual COM and Tunneling modes
Modbus TCP/RTU/ASCII
Configuration via the web server side, the Telnet console and the Windows Utility
Upgradable firmware via Ethernet from a remote PC
Robust metal cladding; industrial EMC protection
Redundant dual DC inputs for non-stop operation
Optional DIN rail mounting
Supply: 9 - 30VDC or 5VDC / 9W
Dimensions: 78 x 65 x 28 mm
Temp: -40 - +70°C
USB to 1 x RS422 / RS485, w/ screw terminal
Max speed up to 921.6 Kbit/s - RS422 / 485 port
Select type of port from DIL switch and jumper
Default set to RS422
Supports Win7, 8/8.1, 10, 11, Server 2008 R2, Server 2012 R2, 2022
(WHQL Certified)
NB: høj bagplade
