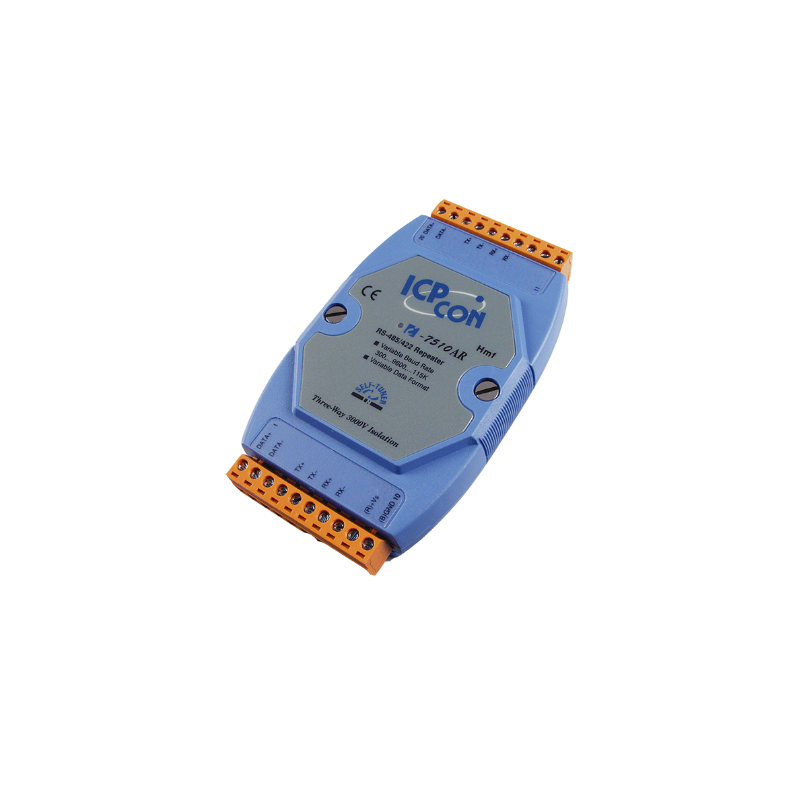

3-way Isolated RS485/422 Repeater and converter

 Automatic RS-485 Direction Control
3-way 3000 VDC Isolation Protection
Transmission Speed of up to 115200 bps
ESD Protection for RS-485 Data Line

$170.70
Excl. VAT
Quantity
On the way in
LÆG I KURV
Product number M485-REP2AR-I
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

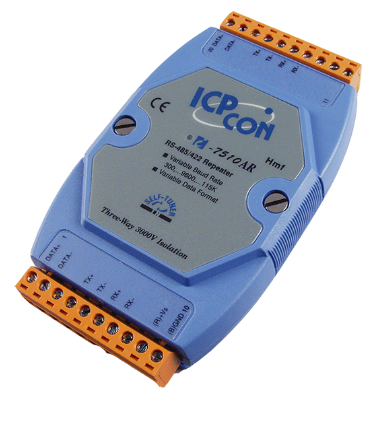

The I-7510AR provides 3-way optical isolation between one piece of RS-422/RS-485 power side equipment and the rest of the system. It can also be used as a repeater to extend the transmission of an existing network. Additionally, an RS-485 system can be expanded beyond the 256 node limitation imposed by the standard. It can also be used to convert a four-wire RS-422 signal into a 2-wire RS-485 signal, and vice versa.

The I-7510AR is exactly the same as the I-7510A, except for the isolation side. The isolation side of the I-7510A is located in the input interface circuit, but the isolation side of the I-7510AR is located in the input and output interface circuit. In other words the I-7510AR is 3-way isolation repeater module.



Andre produkter i samme kategori:

ICPDAS I-7055 is a module with 8 digital inputs, 8 digital outputs via RS485 bus, industrial management tasks
8 digital inputs, 8 digital outputs via RS485 bus, industrial management tasks

8 digital contact inputs
8 digital outputs "Open source" from joint terminal
RS485 interface
DIN bracket
screw terminal

$214.18
Item Number: M485-DI8DO8-I
On the way in
ADD TO CART
Quick view
RS485 Module: 8 Isolated Inputs & Display for Precision Control
RS485 module with 8 isolated digital inputs, with display

8 isolated digital inputs with 16 bit counter
RS485 interface
-25°C ~ +75°C
Display
YOUR shine
Screw terminal

$177.29
Item Number: M485-DI8D-I
Physically in stock
ADD TO CART
Quick view
ICP DAS I-7052 module with 8 optoisulated digital inputs. 6 is balanced and 2 with a common gnd.
8 optoisulated digital inputs. 6 is balanced and 2 with a common ground. 16 bit counter. RS485 bus. 10 - 30VDC.

RS485 Slave module with 8 digital inputs
6 pcs. Balanced
2 pcs. With joint GND.
Sink and Source Inputs
16 Bit Counter
RS485 Bus
Supply voltage: 10 - 30VDC
Dim: 123 x 72 x 35 mm

$196.91
Item Number: M485-DI8-I
Physically in stock
ADD TO CART
Quick view
ICPDAS I-7067 is a module with 7 x relay outputs COM NO. Dry relay contacts for 24VDC / 1A, 120VAC / 0.5A RS485 bus
7 x Relay outputs COM N.O. Dry relay contacts for 24V / 1A, 120VAC / 0.5A RS485 bus, 10 - 30VDC

7 relay outputs (normally open contact)
Glavanisk isolated outputs
Switching time: ON: 5ms
RS485 bus
DIN bracket
10 - 30VDC / 1.5Watt

$155.33
Item Number: M485-REL7-I
Physically in stock
ADD TO CART
Quick view
ICPDAS I-7053-FG is a module with 16 x digital input (DRY Contact). Active at entry to GND. RS485 bus
16 x digital input (DRY Contact) module. Active at contact to GND. RS485 bus. 10 - 30vdc.

RS485 Module with 16 digital inputs
inputs are Dry Contact - High at contact to GND
RS485 The module is slave
supply: 10 - 30vdc
DIN bracket

$156.50
Item Number: M485-DI16-I
On the way in
ADD TO CART
Quick view
Opto-Isolated Digital I/O Module: 4 Inputs, 8 Outputs, RS485
4 opto-isolated digital inputs and 8 digital outputs, open collector, RS485. 10 - 30VDC

8 digital outputs and 4 digital inputs
Open Collector Output
Photocouple Isolation
Digital input channels can be used as 16-bit counters
Configurable Power-on Value settings
Configurable settings for sure value
3750 Vrms insulation voltage
Dual Watchdog
Wide operating temperature range: -25 to + 75 ° C

$186.95
Item Number: M485-DIO4-I
Physically in stock
ADD TO CART
Quick view
The ICP DAS I-7050 is an I / O module with 7 digital inputs (DRY / WET switch) and 8 digital outputs. RS485 bus
I / O module with 7 digital inputs (DRY / WET switch) and 8 digital outputs Open Collector 30V / 30mA, RS485

RS485 I / O Module
7 digital inputs - Contact or volt in
8 digital outputs with connect contact function
Supply: 10 - 30VDC

$152.99
Item Number: M485-DIO7-I
On the way in
ADD TO CART
Quick view

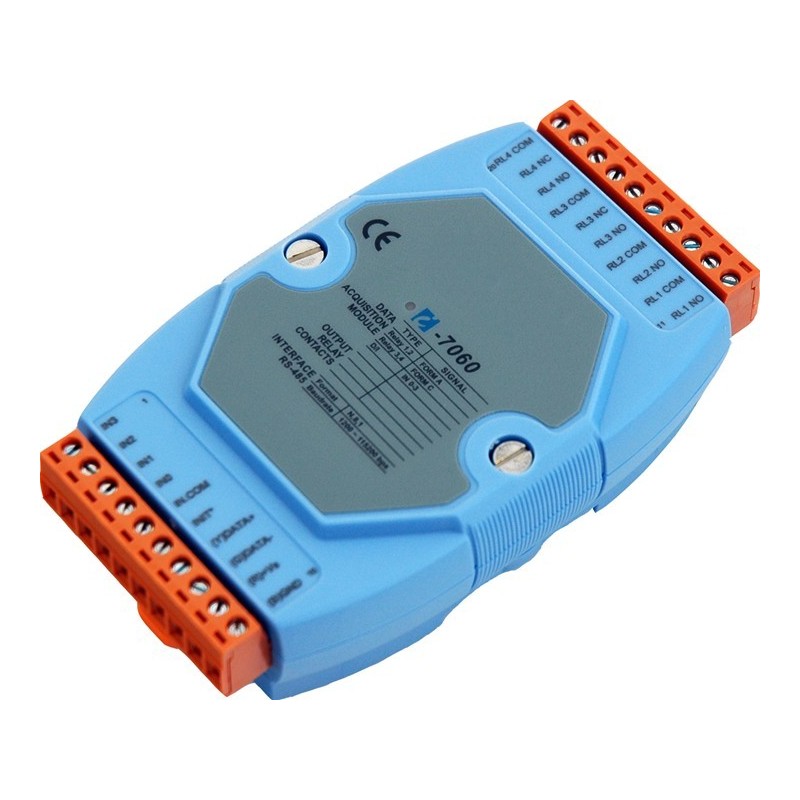

ICP DAS I-7060 is a module with 4 x relay outputs 4 x digital inputs, RS485 bus
