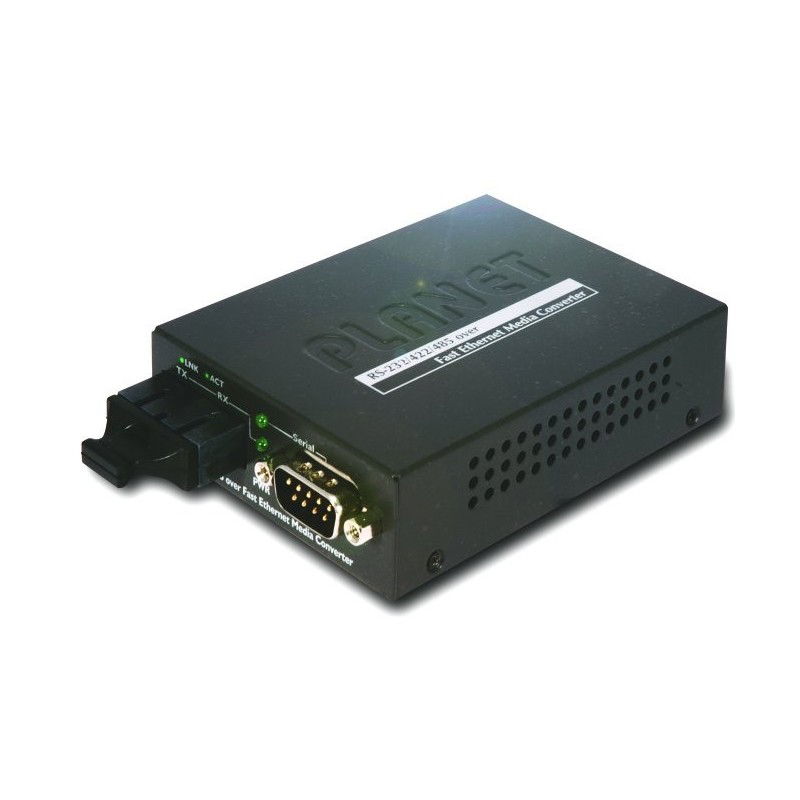

1 port serielportserver via multimode fiber, RS232 / 422/485, up to 2km from fiber switch

Device server til multimode fiber med RS232/422/485 serieport

ETH1SER-UNI2F+
1,188.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

ETH1SER-UNI2F+ til net­værks­for­bin­del­ser via lysleder på op til 2 km. Til lokalnet og/eller internet. Kan opsættes med en ind­byg­get WEB-­ser­ver, telnet og med Windows opsætnings­pro­gram. Ideel til anlæg, hvor dele af netværket bruger fiberkabel. Se vort øvrige udstyr med fiber interface (netværkskort, switche, mediekonvertere m.m.). Typiske anvendelser er i industrimiljøer, hvor elektriske forstyrrelser er kritiske – eller hvor der er brug for netværks- forbindelser over store afstande.

Porte
1 x RS232/422/485 port med hastigheder fra 300 bps til 921 Kbps på DB9-stik Databit: 5/6/7/8, Stopbit: 1/2 Paritet: Lige/Ulige/Ingen Flowkontrol: RTS/CTS, Xon/Xoff
