Ethernet to Can Device Server. CAN to Ethernet Gateway. With 1 x CAN, RS232 and RS485.

1 channel software-selectable RS-232/485/422 port
Baud rate: 1200 - 230,400 / RS485 921,600
1 x 10/100 Mbps RJ45 Fast Ethernet port
Supports TCP Server/Client, UDP, Virtual COM and Tunneling modes
Modbus TCP/RTU/ASCII
Configuration via the web server side, the Telnet console and the Windows Utility
Upgradable firmware via Ethernet from a remote PC
Robust metal cladding; industrial EMC protection
Redundant dual DC inputs for non-stop operation
Optional DIN rail mounting
Supply: 9 - 30VDC or 5VDC / 9W
Dimensions: 78 x 65 x 28 mm
Temp: -40 - +70°C

Wifi CAN converter. CAN CAN bridge. CAN PC
two CAN channels
AP mode and station mode
Compatible with Socket (TCP Server, TCP Client, UDP)
Support: Ethernet, ARP, IP, ICMP, UDP, DHCP, DNS TCP)
DIP switch for terminating
Isolation: 1500VDC
CAN baud rate: 5kbit / s to 1Mbit / s
Wifi: 2.4GHz IEEE802.11a / b / g
Supply voltage: 9 - 30VDC
Consumption: 80mA @ 24VDC
Dimensions: 118 x 94 x 23 mm
Operating temperature: -40 - + 85 ° C

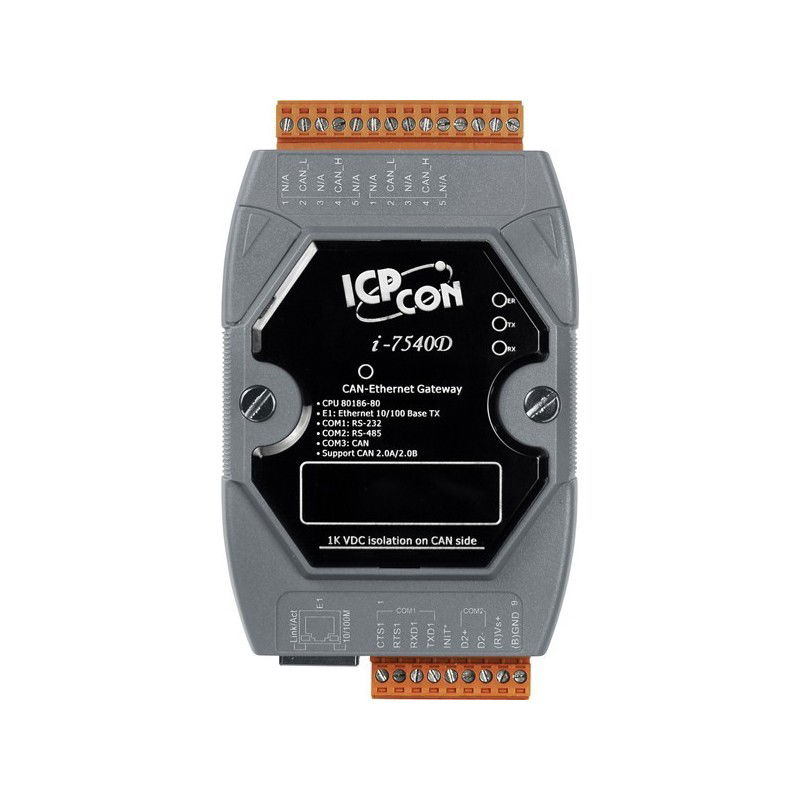

Intelligent Can For Modbus TCP / IP Converter
Supports both CAN specification 2.0A and 2.0B
Maximum transmission speed up to 1M BPS for CAN and 115.2 Kbps for RS-232 RS-485
Maximum transmission distance on CAN over 1000m (Follow the CAN specification)
7-segment LED display for module IP, RS-232 Baud rate, CAN configuration ...
Supports Web Configuration
Supports Maximum 24 Ethernet clients Connection
Modbus TCP / RTU command for reading and writing CAN message
Transparent communication between the CAN devices via Ethernet
30 Specific CAN IDs in Modbus TCP / RTU Mode
DIN mounting

Modbus over the Ethernet or Internet
MODBUS server with 1 x RS232 and 1 x 422/485
Can run Device to Device
0/100 Mbps Ethernet port, auto MDI / MDIX, 10/100 auto, 1500V magnetic insulation only on
RS485 RS232 Modbus ASCII / RTU port, 1 RS422 / 485 Modbus ASCII / RTU port, 16V / 400W TVS isolated, RS485 automatic line control
9 ~ 30VDC power input, IP30 enclosure , DIN rail mounting structure, USB port (Modbus serial port expansion and capture of memory)
