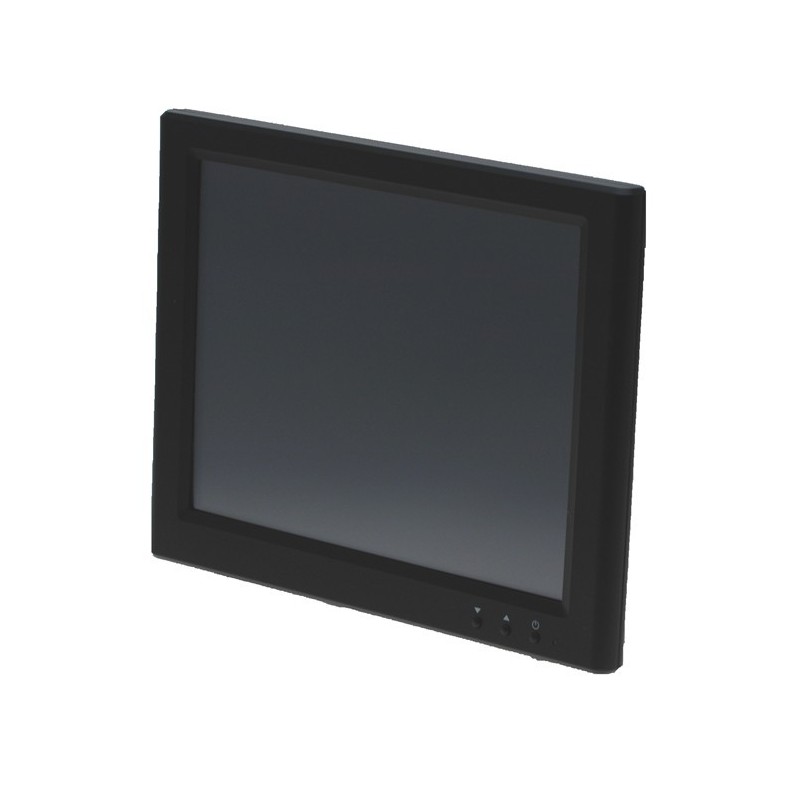

8 "LCD Touch Monitor, with / USB graphics card Built-in supplied by the USB port and with built graphics card. only 1 cable

12.1" 4:3 ratio
800nits High Brightness
10-point Capacitive touch via USB
1024 x 768 Native Resolution
900:1 Contrast with 170 degree viewing angles
HDMI 4K (30Hz) signal input
Input voltage from 12 to 24VDC
Dimensions: 285 x 224 x 34 mm
VESA 75 Mounting
Operating temperature: -30 to 85 °C

10.1 ”LCD screen for 1 x VGA
1 x HDMI
1 x USB (touch)
PCAP multitouch (USB)
Resolution: 1280 x 800 @ 60Hz , 75Hz
Brightness: 350 nits (cd / m2)
OSD function
Contrast: 800: 1
Full IP66 / 69K and vandal proof
Operating temp. 0 - +50 C °
Supply 9-36VDC, 15W
For VESA75 or panel mounting
220 x 300 mm (H x B)

24 "TFT metal monitor with capacitive touch, IP66, IP20
LED backlight
Capacitive touch (PCAP), 4 points
1280 x 1024
Contrast: 700: 1, & nbsp; 1000 nits
Display angle: 160 ° / 140 °
1 x DVI-I (29-pin DVI-D connectors female)
1 x VGA (15-pin D-sub connector female)
1 x RS-232 (DB9 male)
1 x Optional RS232 / 422/485
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
Desktop, Panel mounting
6,100 g, 429 x 387 x 75 mm
-40 to 70 ° C
CISPR 32, FCC Part 15B Class A
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND < Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx -, Rx +, Rx, GND

12.1” Stainless Steel Display
standard 450/500 nits OPTION: 1000nits
Oprtion: Optical Bonding for UV protection
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Option! Resistive Touch, Projected Capacitive Touch, and Glass
Touch Interface USB
Touch on/off Button on the Side Edge for Hygienic Cleaning
VESA mount 75x75, OPTION: Yoke mount
0~50°C / -20~60°C (option)
Power input 9~36Vdc (1xM12 3-pin Connector) 8W/12W (high nits display)
Size 335x365x53mm
