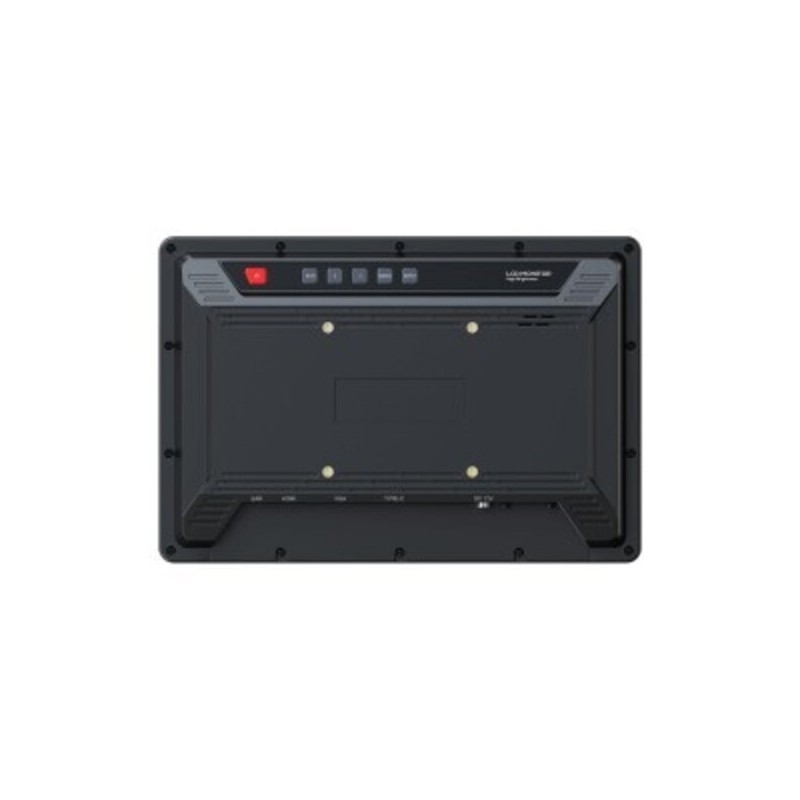

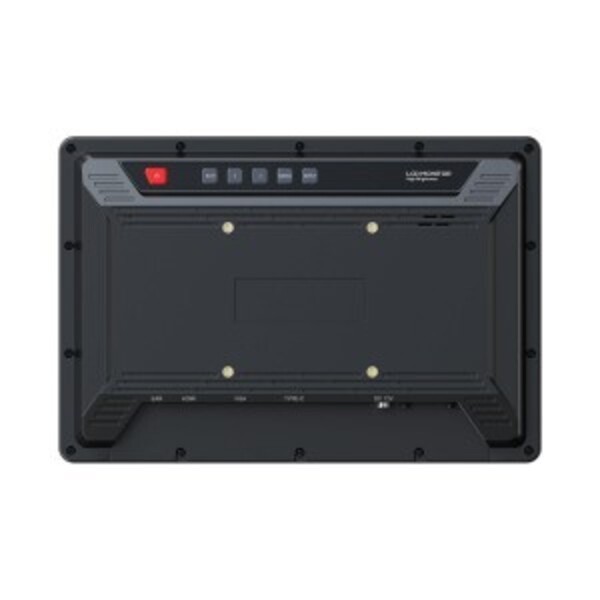

10.1" USB powered, TFT Touch display for Industrial Use HDMI, VGA, 16:10, 1920x1200

10.1” LCD with 1920x1200 resolution

380 Nits

Capacitive touch function for precision

16:10 aspect ratio for optimal viewing

170° viewing angle for better accessibility

Lifetime of LED panel: 50,000 hours

Support for HDMI, VGA and USB Type-C inputs

Built-in speakers with 2-channel 48kHz 24-bit audio

Operating temperature: -20°C to 60°C

IP65 frame for extra protection (optional)

Weighs only 820g for easy installation

Power consumption: <19W at 12V operation

VESA 75 mm

NOTE: Optional desktop stand

2,889.00 kr
Excl. VAT
Quantity
On the way in
LÆG I KURV
Product number MON10.1-TFT-TU
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Desktop stand NOT included - can be purchased separately.

Andre produkter i samme kategori:

7" TFT screen with quad video input
7" TFT color display with built in 4 x RCA Composite input, 10 - 32VDC

7" LCD Color Monitor
4 x Camera Input, RCA
5 x Trigger Wires
Video Format: PAL / NTSC / HD (720p / 1080p).
10 - 32VDC. Max 25W < Br> 600 CD / m²
Good for vehicles
Incl. fittings and remote control
Operating temperature: -20 ~ + 70ºC
Option: VGA or HDMI input

Call +45 56 66 20 20 for price
Item Number: MON7-TFT-4AHD
On the way in
ADD TO CART
Quick view
10.1"TFT panel VGA, HDMI indgang
10.1 "TFT Panel OpenFrame 5 to 12VDC Supply, VGA, HDMI, LVDS, AV, Resolution 1024x600

10.1 "TFT panel
Controls Module
VGA, HDMI
50pin TTL interface
AV Interface
Remote control, push buttons and Controls Cable
DC5-12V 5.5mm Jack Connection
Resolution 1024x600
235 (W) x 132 (H) mm

400.00 kr
Item Number: MON10.1"PANEL-VGA
Physically in stock
ADD TO CART
Quick view
7 "TFT color display with remote control
7" TFT color display with remote control and speakers 12V and 230V, 800 x 480 16:10 Format

7 "LCD Color Monitor
350cd / m2, 400: 1 Contrast
Resolution: 480 x 234
Image Format: 4: 3
12V / 230V
2 x RCA Composite Video Inputs
Remote Control
Car Power Adapter

1,076.00 kr
Item Number: MON7-TFT
On the way in
ADD TO CART
Quick view
15 inch industrial frame 4:3 screen 500Nits LED backlight 1024x768 resolution
15" industrial frame monitor 500Nits LED back light 12VDC, -20˚C~ 70˚C resolution 1024x768, 4:3 format

15" TFT

VGA, DVI-D, HDMI

high brightness 500 nits

LED Backlight

Low power consumption

Wide operating temperature -20˚C~ 70˚C

BL MTBF: 30,000 hours

326.50X253.50X9.8mm

12VDC, 9.6Watt

3,292.00 kr
Item Number: MON15-OPEN-500NITS
On the way in
ADD TO CART
Quick view
10" Industrial Touch Monitor to Panel and VESA Mount
10.1" LCD Touch Screen Alu Front, Projected Capacitive Touch 1280x800 16:10, IP66 Front, DC 9 ~ 36V

10.1" TFT 1280x800 (16:10)
Front panel IP66 Standard / IP69K Option
Aluminum cabinet
VGA, DVI, HDMI and DP Input
Supply voltage: DC 9 ~ 36V
Contrast : 800:1
Brightness: 350 Nits Standard / 1000 Nits Option
Touch Via USB: Projected Capacitive Standard / Resistive Option / No Touch Option
Touch Via RS232: Option
VESA 100 and Panel Mount
Dimensions: 285 x 189 x 48.9mm
Weight: 1.9 kg
Operating temperature: 0 ~ +50°C Standard / -20 ~ +60°C Option

Call +45 56 66 20 20 for price
Item Number: MON10.1-TFT-T
On the way in
ADD TO CART
Quick view
13.3 "1080p Full HD screen with touch, HDMI, VGA, DVI, composite video input, SDI
13.3 "IPS monitor, 10-point capacitive touch, 1920 x 1080, HDMI, DVI-D, VGA, Composite, 7-24VDC, 16: 9

13.3 "IPS HD display with touch and metal casing
1920 × 1080 - 16: 9 format
10-point capacitive touch
Brightness 300 cd / ㎡
Connectors: HDMI, DVI, VGA, BNC
USB (for touch)
1 x Audio (BNC)
1 x Composite Video (BNC)
Supply voltage: 7-24VDC
AC adapter included
Power ≤8W
operating temperature -20 ℃ ~ 60 ℃
Dimensions 333.5 × 220 × 34.5mm (W x H x D)
VESA 75 and 100 meters 1.9kg

3,043.00 kr
Item Number: MON13.3-HD
On the way in
ADD TO CART
Quick view
vandtæt display IP65, IP66, IP68 High nits til sollys udendørs brug
12.1" TFT display 360 Degrees IP66 tight, VGA, HDMI, 304 Steel enclosure option with 1000 nits for sunlight

12.1” Stainless Steel Display
standard 450/500 nits OPTION: 1000nits
Oprtion: Optical Bonding for UV protection
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Option! Resistive Touch, Projected Capacitive Touch, and Glass
Touch Interface USB
Touch on/off Button on the Side Edge for Hygienic Cleaning
VESA mount 75x75, OPTION: Yoke mount
0~50°C / -20~60°C (option)
Power input 9~36Vdc (1xM12 3-pin Connector) 8W/12W (high nits display)
Size 335x365x53mm

Call +45 56 66 20 20 for price
Item Number: MON12-TFT-T-IP66
On the way in
ADD TO CART
Quick view
15" TFT panel and open frame touch high nits
15" Industrial touch monitor open frame or panel mount 300cd/m2, Vesa, touch HDMI, VGA, DVI, A/V

15" 1024x768
4:3
Resistive Touch
Contrast 1500:1
High brightness: 300cd/m2. (model with 1000nits can be supplied)
HDMI, VGA, DVI, A/V inputs (BNC)
Viewing angle: 170/170 (H/V)
Metal housing
VESA & rear mounting methods
12VDC <16Watts
-20℃~60℃

3,300.00 kr
Item Number: MON15-OPEN-P-T
On the way in
ADD TO CART
Quick view
