PoE Tester for units over PoE network
Quick and Easy PoE tester
IEEE 802.3af / at
UTP Cat 5 or above
100 meters max.
Dimensions: 23 x 70.1 x 22 mm | Operating temperature: -10 ~ 60 C
weight: 20g
204.00 kr
Excl. VAT
Quantity
Physically in stock
Product number POE-TESTER
Specifications
Dimensioner | 23 x 70.1 x 22 mm |
---|---|
I/O | 1 x RJ45 |
Kabel | UTP, cat 5 eller derover. maks 100 meter |
PoE | IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
Weight | 20g |

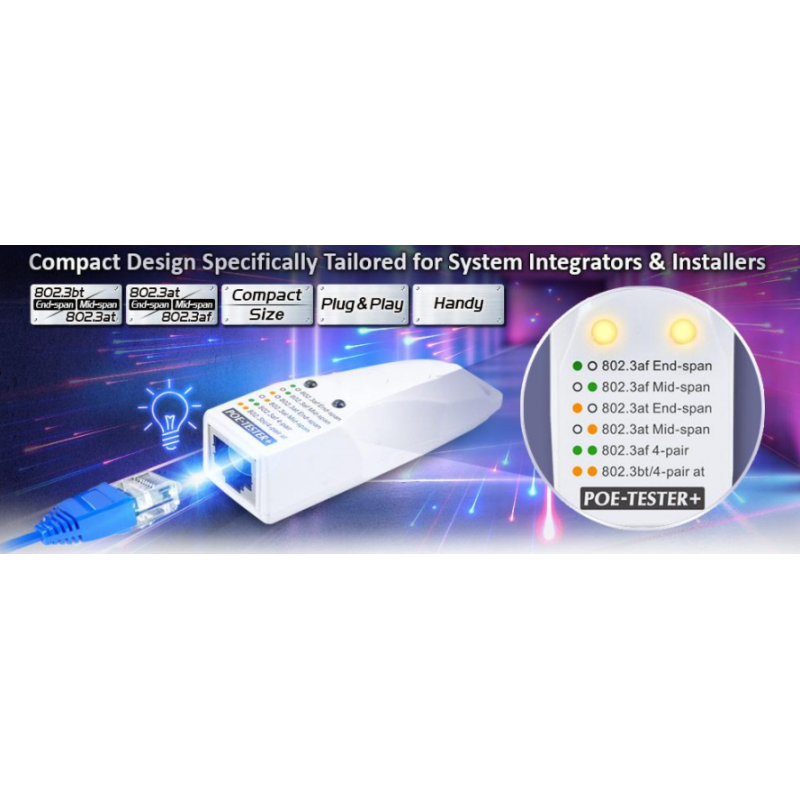

Quick and easy test to RJ-45 for Power Ethernet test on a second. POE-TESTER is a user PoE diagnosis adapter for network installers, corporate MIS and even home users to quickly identify the existence of Power over Ethernet Application network. It is designed to detect whether IEEE 802.3af / at PoE voltage runs over UTP cable and identifies the type of PSE (power source equipment) for troubleshooting.
Connect the POE-TESTER for PSE or RJ-45 socket and the LED lights up when it detects PoE voltage via UTP cable and identifies that the PSE is between voltage end tension or even the past four pairs 60 watt ultra PoE on a second.

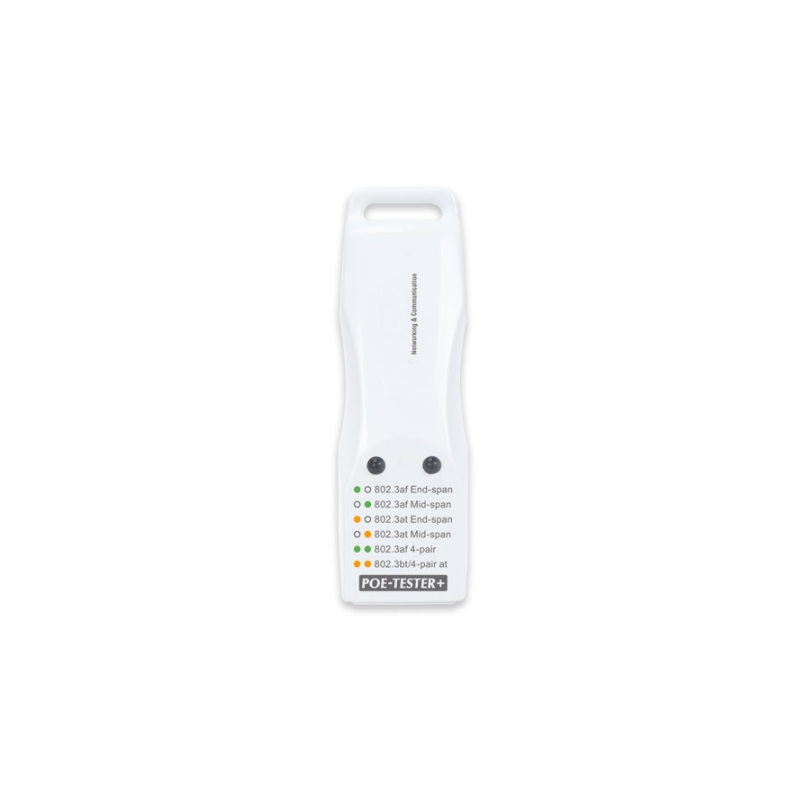

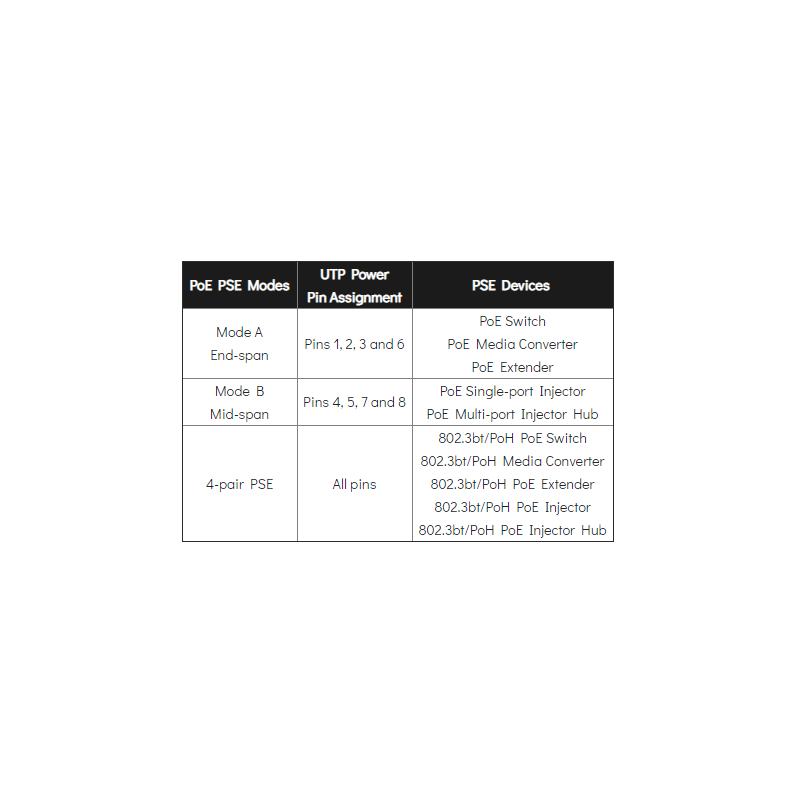

POE-TESTER provide two LEDs for quick and easy identification of the PSE state. A Power over Ethernet system comprises a PSE (Power Sourcing Equipment) and a PD (Powered Device). PSE is a device that supplies power in a PoE setup. There are two types of PSE, Mode A and Mode B. PSE can be either a Mode A, end-span PoE switch or Mode B, mid-span PoE injector. PD is a PoE-enabled terminal of PSE and consumes energy, such as IP network cameras, VoIP phones and wireless access points.
