12VDC 5 Amp (60Watt) power supply, 100-240 VAC, plug: 5.5 / 2.5mm, C14 plug
Power supply 100 - 240VAC to 12 VDC / 5A, switch mode. 2.5mm / 5.5mm Jack
Power cord included.
Not recommended for newer OS! No Windows 10/11 support
Contact us regarding replacement
The chipset is EOL
Atom 1.6 GHz CPU N2600
2 GB RAM DDR3, So-DIMM socket
1 x RS232/422/485 with DB9 connector
1 x RS232/422/485/CAN with DB9 connector
VGA
4 x USB 2.0
2-in/2-out digital
2 x 10/100/1000 RJ45 ethernet
Mini SIM slot
2.5" SSD/HDD slot (hard drive NOT included)
DIN rail mounting
9~32 VDC
Dimensions: 145 x 102 x 50 mm
Temperature: 0 - +50°C
OS support: Windows 7, XP Embedded and Linux

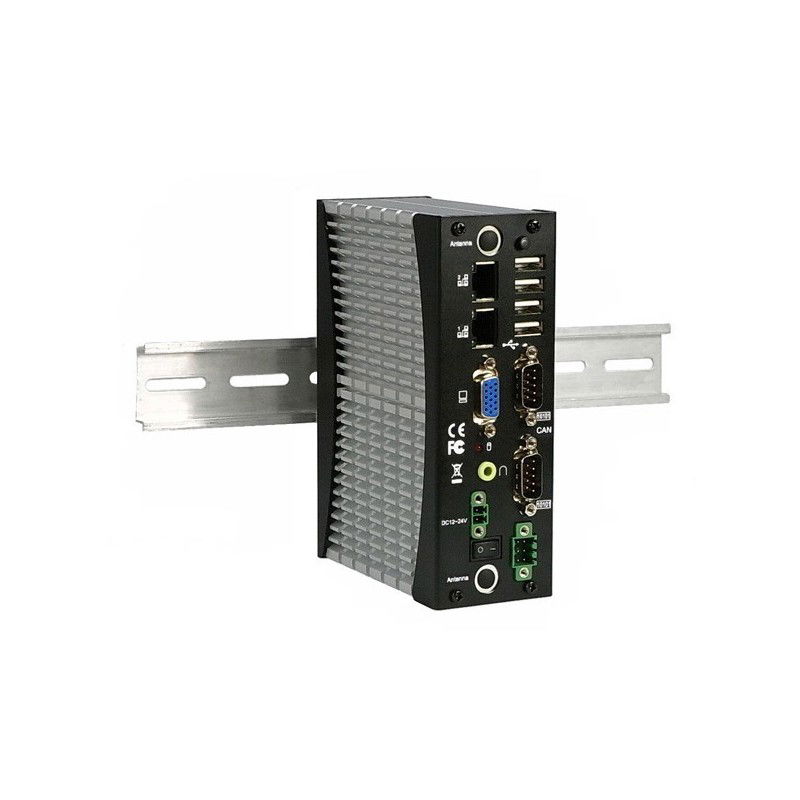

Industrial mini PC
3½” format
Suitable for industrial automation tasks
Can DIN rail be mounted or panel mounted
Other models/specifications can be supplied
We offer to assemble and install software as desired. Contact our sales department.
Power supply 100 - 240VAC to 12 VDC / 5A, switch mode. 2.5mm / 5.5mm Jack
Power cord included.
Design for Industrial Automation, M2M solutions
Onboard Atom Dual Core D2550 1.86 GHz processor
1 x DDR3 SODIMM, max. 4GB
3 x RS422/485 communication with isolation protection
Support 8 GPIO of Phoenix type Terminal Block
2x Giga LAN, 2x USB, 1x VGA, 1x Line in, Line out, Micro I
Fanless, High-efficiency thermal design weight/sealed construction
OS support: Windows7 32bit
1.5kV DC insulation resistance DNVGL-CG-0339, IEC 60945 4th Egdtion, CE/FCC
Core i7-9700E 2.6Ghz
16GB Ram (optional up to 64GB)
DP x 1, VGA x 1, HDMI x 2
1x PCIe 16x to GPU 250W max
2x COM,2x LAN, 10x USB
Windows® 10 , Linux
Embedded 8th Gen Intel® Core™ U i7/i5/i3 CPU (TDP 15W)
1x 2.5" front-accessible SATA HDD bay for quick access and 1x mSATA socket
2x full-size Mini PCIe sockets for module expansion
2x front-accessible SIM card slots for signal redundancy
Optional CMI modules (2x 10 GbE LAN, M12 A-coded, or M12 X-coded)
Optional CFM modules (power ignition sensing, or 4x PoE)
Wide operating temperature -40°C to 70°C
203 mm (W) x 142 mm (D) x 66.8 mm (H)
MIL-STD-810G, EMC CE, FCC, ICES-003 Class A, EN50155 (Only EN50121-3-2), E-mark Safety IEC/EN 62368-1
9~48VDC via 3-pin Terminal Block
Intel® 12/13 th-Gen Core™ 35W/ 65W LGA1700 CPU up to 16 cores/ 24 threads
4x GbE
4x USB3.2 Gen 1 with screw-lock
1x hot-swappable HDD tray
1x M.2 2280 Gen4 x4 NVMe
RAM non-ECC DDR4 3200 SDRAM (one SODIMM slot) MAX. 32GB
2x full-size mPCIe sockets
4-CH isolated DI and 4-CH isolated DO
VGA + DP
TPM Support
Rugged, -25°C to 60°C fanless operation
212 x 165 x 63 mm low-profile design
1x 3-pin pluggable terminal block for 8-48V DC input with optional ignition power contro
