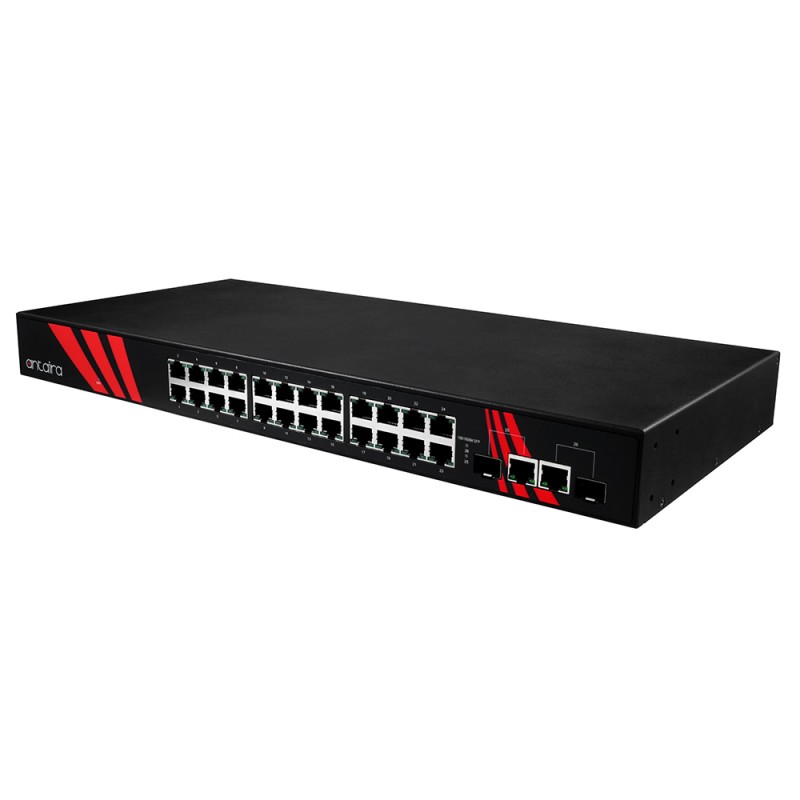

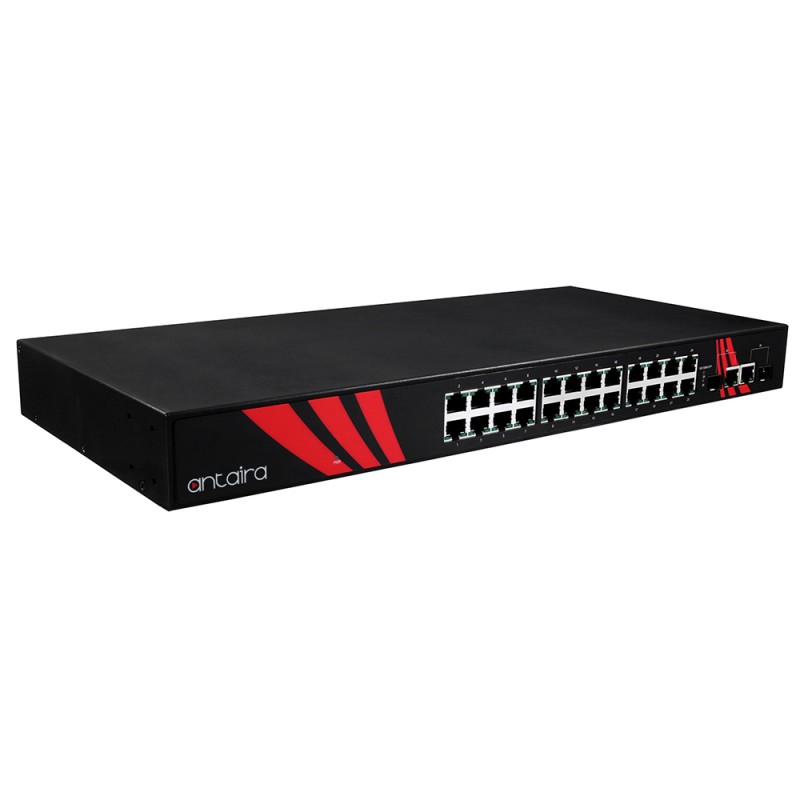

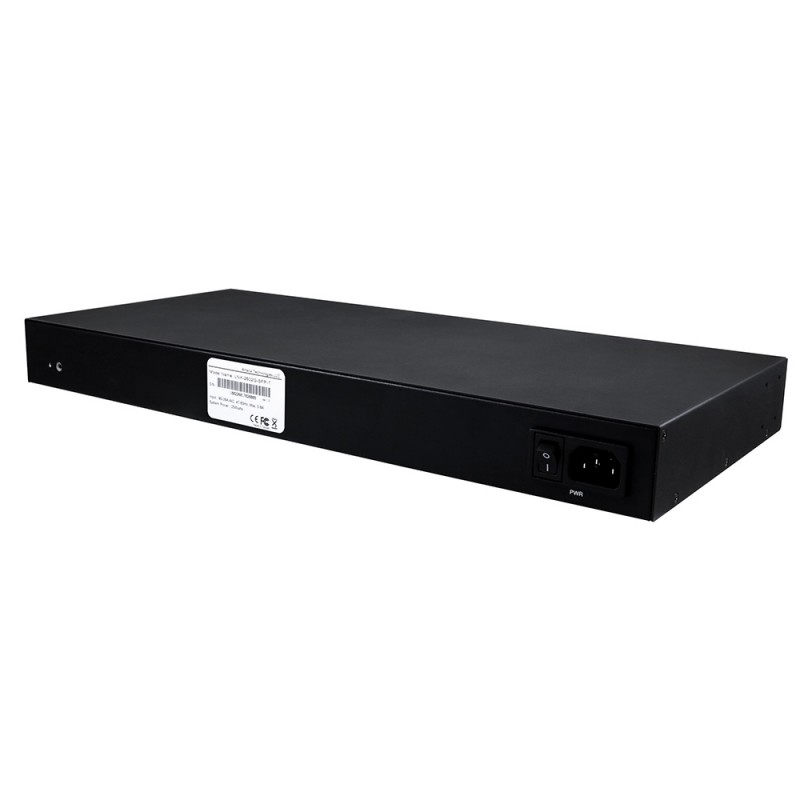

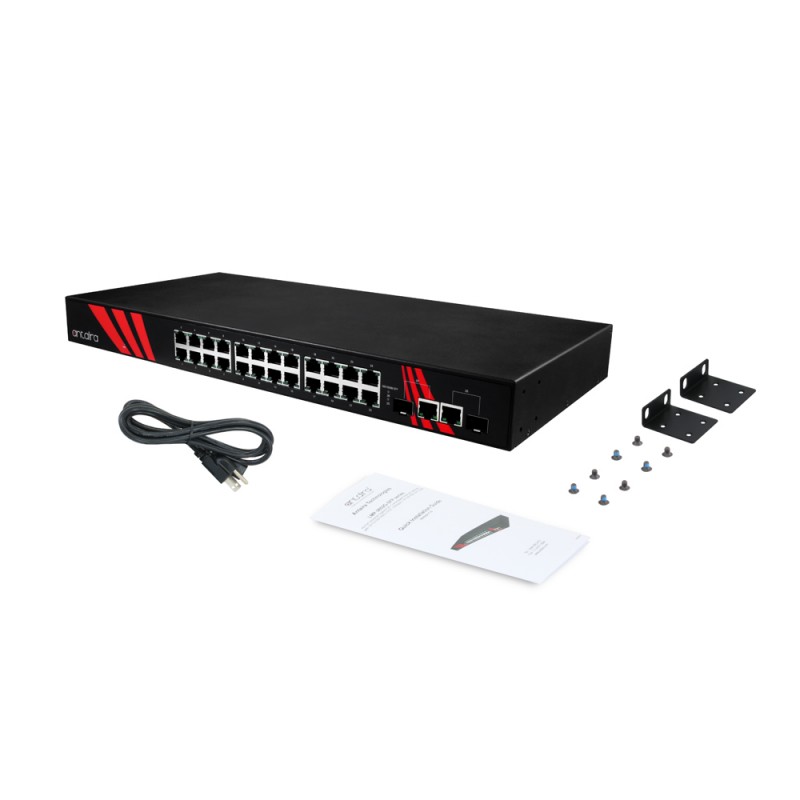

26-port industrial gigabit unmanaged switch, IP40, 1U, 19 "Rackmount

24 x 10/100 / 1000Tx RJ45
2 x Gigabit Combo Ports
2 x 10/100 / 1000Tx RJ45
2 x 100/1000 SFP Slots
Auto MDI / MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input Design: 90 ~ 264VAC
1 x Built-in Relay Output for Power Failure
IP40 Rugged Metal Case Design
1U 19 "Rackmount Design Support
Operating Temperature: -10 ° to 70 ° C

ANR-LNX-2602G-SFP
13,239.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Approval
EMI, EMS, FCC Part 15 Subpart B Class A, CE EN 55022 Class A
Buffer
4Mbps (buffer)
Chok/Vibration
IEC60068-2-27, IEC60068-2-6
Dimensioner
440 x 44 x 200 mm (W x H x D)
Driftstemperatur
STD: -10° to 70° C
I/O
26 x RJ45 10/100/1000Tx, 2 x 100/1000 SFP Slots
Luftfugtighed
5 to 95%, (non-condensing)
Compositions
Metal, IP40 beskyttelse
Montering
1U 19" Rackmount
Netværk
10Base Tx: UTP/STP Cat. 3,5 100Base Tx: UTP/STP Cat. 5 1000Base Tx: UTP/STP Cat.5/5e/6
Protokol
CSMA/CD
Standarder
IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT IEEE 802.3z 1000Base-X Gigabit Fiber
Strømforbrug
24Watt
Strømforsyning
90-264VAC/47-63Hz
