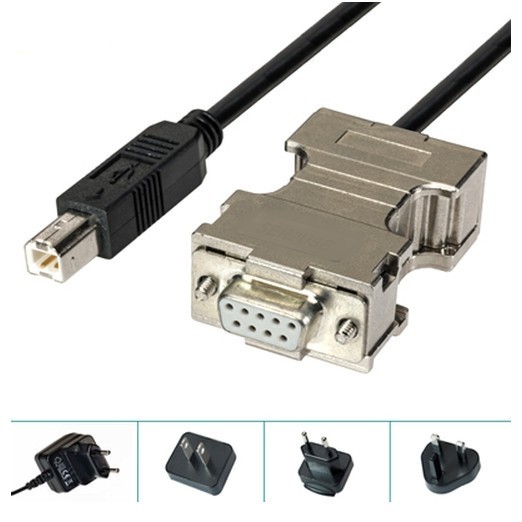

USB printer connects to RS232 port - DB9 female to USB B, 1.8 meter cable. The converter is only for specific USB printers

RS232 for USB printer adapter cable
connect USB printer to PC com port
automatic baud rate
power supply included
DB9 female and USB B
Supply voltage: 5VDC 100mA
GDI printers (without own emulation) are not supported

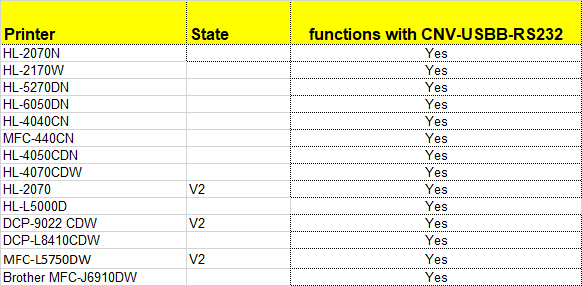

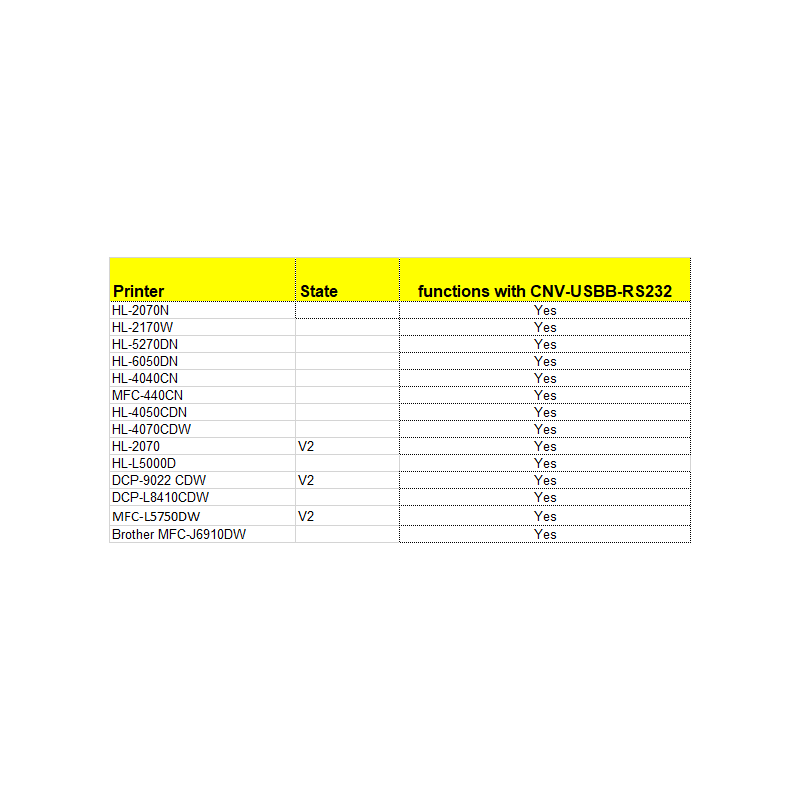

See list of supported printers under Downloads

1,900 kr
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number CNV-USBB-RS232
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

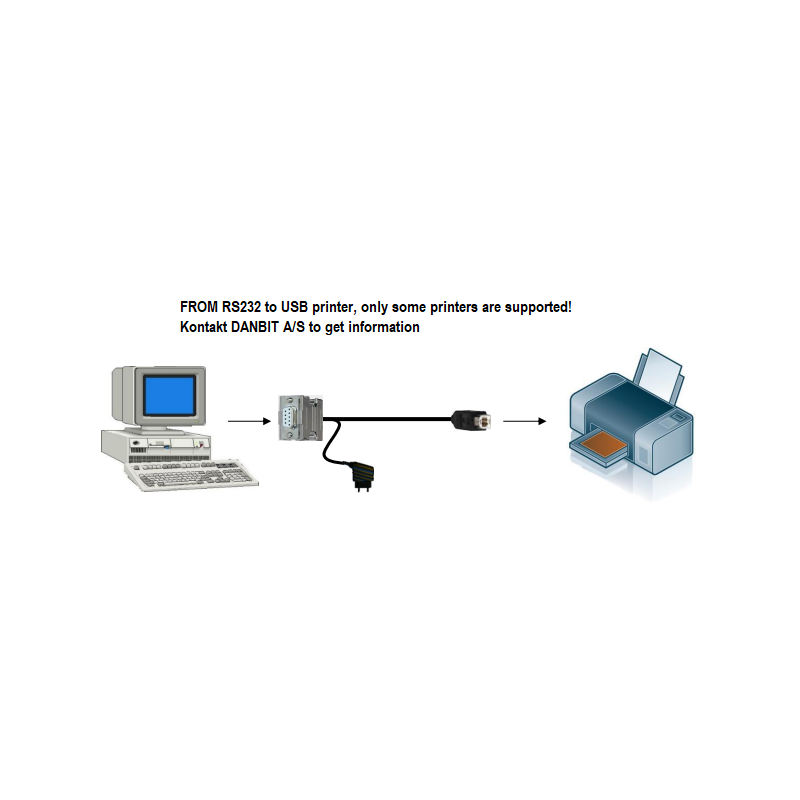

Adapter used to connect printers / multifunction printerers with a PC's COM port (Serial Interface)
for example. On laboratories, control panels, pharmaceutical equipment or products with serial interface for serial printer, where the printer is replaced with a printer only with USB port. The adapter can only be used on the printers specified in the printer list - found during downloads.

Connector:
1 x 9-pole sub-d She
1 x USB-B Han
Power Supply: 110-240V / 50 / 60Hz
output 5volt / 100 mA
Cable length: 1.8m
USB - Interface
USB USB1.0 Low-Speed ​​
USB1.1 Low / Full-speed
USB2.0 Low / Full-speed

Purpose: Only for USB Printer
Speed ​​2400-115200 Baud
Protocol: None, RTS / CTS, Xon / Xof < Br> Parity: None, Odd, Even
Data Bit: 7.8
Stop Bits: 1,2
Class: Printer
Class: Hub

Andre produkter i samme kategori:

USB til 4RS232 inkl. kabelforRS232
USB to 4 x RS232 adapter - USB cable included

Få 4 stk. RS232 porte på PC via USB porten

Forbind 4 x RS232 enheder til USB port
Metal kabinet og med vægmontering
Baudrate op til 115,2 kbit/s
Supporterer ikke hardware licens nøgler

Supporting Win10

1,207 kr
Item Number: CNV-USB-RS232SL-4P
On the way in
ADD TO CART
Quick view
RS232 Com-port on Android tablet or Android phone via USB port
USB 1 x RS232, COM port for Android tablet / phone. Micro USB

Get a COM port on the Android Tablet or Android phone via USB port

Connect 1 x RS232 equipment to Android Tablet / phone
Connect to micro USB port on the Tablet / Phone
Baud rate up to 921.6 kbit / s

455 kr
Item Number: CNV232USB-A
Physically in stock
ADD TO CART
Quick view
USB-C to RS232 Adapter cable 1.5 meters
USB-C male to RS232 converter with DB9 male, 1.5m

USB-C to serial RS232 adapter cable
USB type C male to 9-pin RS-232 male connector with thumb screws
Data transfer speed 1 Mbps+
Supports remote wake-up and power etc
1.5 meters

280 kr
Item Number: CNV-USBC-RS232
Physically in stock
ADD TO CART
Quick view
CAN Bus to USB Adapter - Connects PC to CAN 2.0A/B, 1Mbps
CAN bus to USB adapter. Connects a PC with USB port to CAN Bus. CAN 2.0A and CAN 2.0B up to 1Mbps

CAN bus port on your computer via USB 1.1, 2.0 or 3.0 port
Powered from USB port
LED shows initialization and CAN bus status
Installs as a standard Windows COM port
CAN modes: Standard, Listen, Echo
Controlled using ASCII commands
API provided along with examples
Plug and play installation
CAN bus speed up to 1 Mbps
Supports CAN 2.0A and CAN 2.0B protocols
Drivers provided for Windows and Linux OS
Supports SocketCAN (slcan driver) since kernel 2.6.38+

1,132 kr
Item Number: CNV-USB-CAN
On the way in
ADD TO CART
Quick view
USB to RS232 Converter - Get a COM port on your PC via the USB port
USB to 1 x RS232 adapter - get a COM port on the PC via the USB port. FTDI chip. With threaded bushing for COM cable

RS232 - 08/07 bit
Max. 115.2 kbit / s
FTDI chip - FT232xx.
Does not work with software license dongles
With internal jumper getting + 5VDC on pin 9
1 meter USB cable
Supports Win10 < / p>

455 kr
Item Number: CNV-USB-SER9T
Physically in stock
ADD TO CART
Quick view
USB to RS232 RS422 RS485 converterforSerial and Parallel
USB to RS232 RS422 RS485 converter

Connect RS232/RS422/RS485 equipment to USB port
Baudrate up to 921,6 kbit/s
Select type of port by DIL switch
Supports Win7/8/10, MAC

988 kr
Item Number: CNV-USB-UNI
On the way in
ADD TO CART
Quick view
Internal USB to RS232 Converter Card with Dual Ports & 5V
Internal USB to RS232 converter card with 5V on DB9

Two 16550 High performance UART (RS232) serial channels
Occupies one PCI or PCIe bus slot
Low Profile PCI Form Factor
Includes Low Profile PCI & Regular size PCI two brackets
Both USB A type and USB pin header connector on board to host connection
One RS232 DB9M and one RS232 10pin RJ45 serial ports on board
Includes one 10pin RJ45 – DB9M Bridge cable for 2nd DB9M port
5VDC Power output from each DB9M Port for POS device use application
2 Jumpers Individually enable / disable 5VDC output for each DM9M Port
On Board Molex mini 4Pin Power connector for sufficient DB9M 5V bus power from PC power supply
Supports 32bit/64bit Windows 7, Vista, XP, 2000, ME, 98SE

178 kr
Item Number: CNV-USB-RS232INT
Physically in stock
ADD TO CART
Quick view
USB to 1 x RS232 / RS422 / RS485 adapter. 300 - 921.6kbit. Also for RS232C ports
USB to 1 x RS232 / RS422 / RS485 adapter. 300 - 921.6kbit. Complies with COM signals +/-11Volt. Galvanically isolated

Serial to USB converter with 1 x RS232/422/485 port

Respects +/- 11volt data signals

Galvanically isolated on the RSxxx output

Self-tuner Baud Rate

Automatic direction control

Powered from the USB port

USB connector: Type B

Supports USB 1.1, 2.0 and 3.0

COM port: terminal block

1,311 kr
Item Number: M485-USB-I
Physically in stock
ADD TO CART
Quick view
