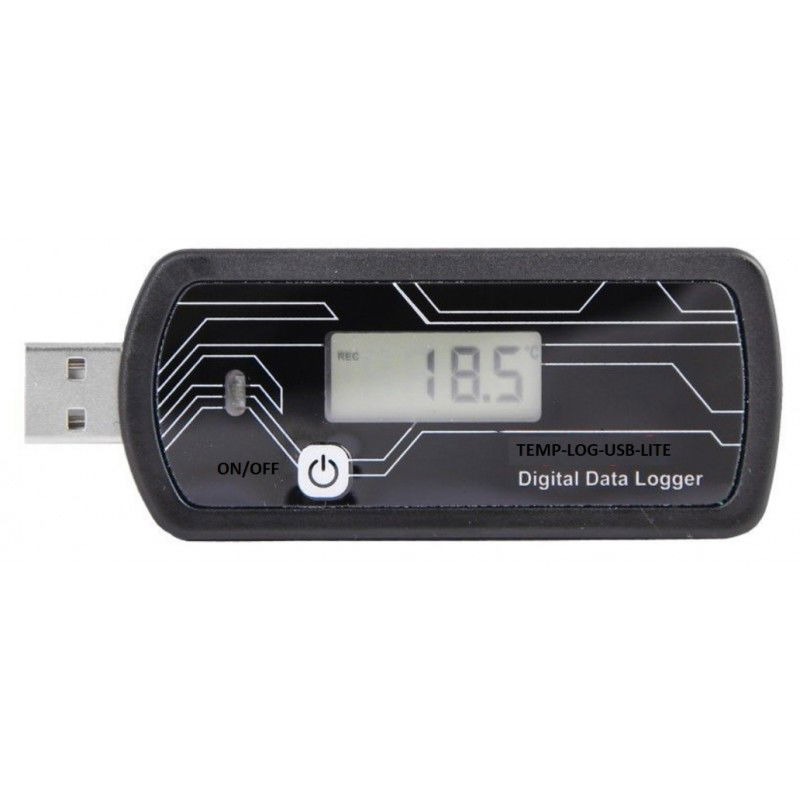

Standalone USB temperature data logger
USB interface
Battery powered, life time 3 to5 years
-40 ° C ~ + 80°C
accuracy ± 0.5°C
up to 32,000 Logs
Sample rate 1min to 24 hours
Weight 35gram

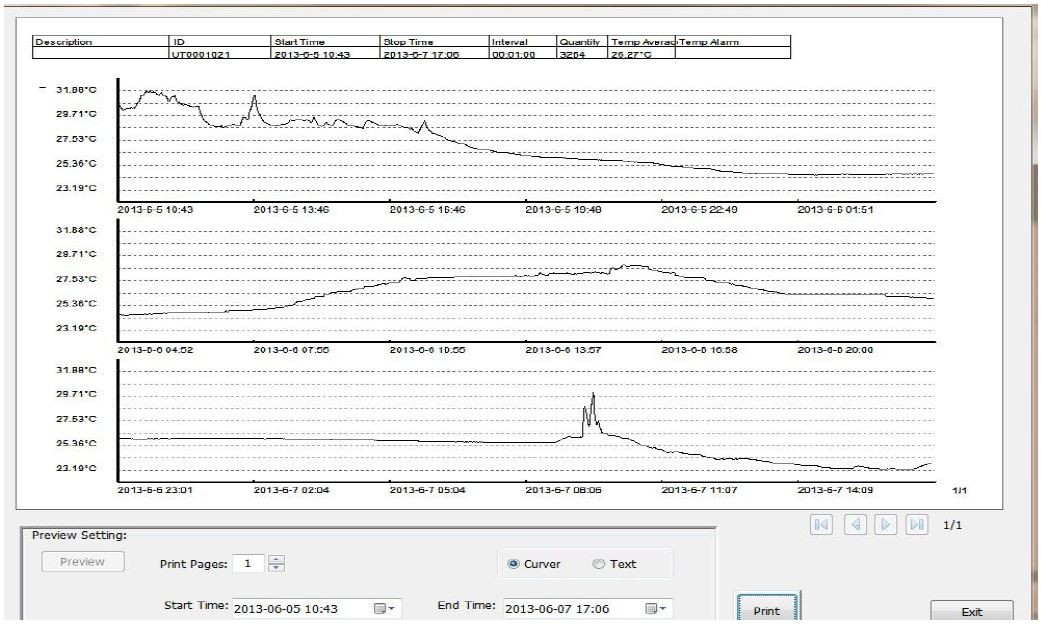

Software for printing graphs included
Software setup for time log on/of or by pressing the button
Plug Play
Suitable for air/ship consignments in pharmaceutical, medical, landbrug, food industry
Batteri | 3 to 5 years depens of use and temperatur |
---|---|
Hukommelse | 32.000 logs |
LED | Bright Red and Green LED Indication |
Nøjagtighed | ±0.5°C |
Temperatur | -40°F ~176°F, -40°C ~80°C |
Weight | 35 gram |

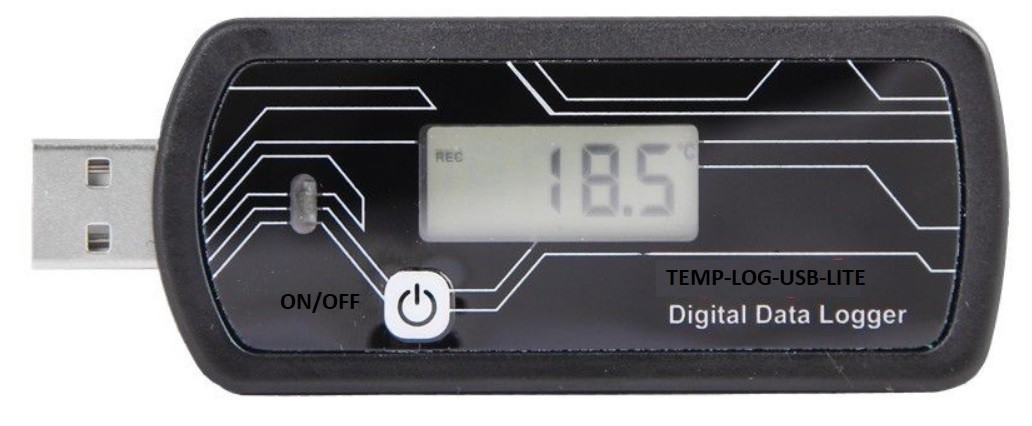

USB temperature logger. Is close to the size of the USB stick. USB data logger is connected directly to the USB port on your computer configuration and downloading of data, eliminating the need for additional cables.
USB connector can be connected directly to the computer to read, save and print data.
USB data logger is compact with high precision, long life, good stability and low cost. With a wide temperature range, it is suitable for a number of common, even extreme temperatures. Robust design against shock, dust and moisture exposure.
4 channel data logger with display
External memory with SD slot
USB port for PC
input: DC to 100Hz
+/- 0.3 Volt to +/- 24 volts
2ms Log -Interval with 10 Microvolt resolution
Log intervals: 2 MS to 60 minutes
Number of log intervals: 23
Daisy-Chain 4 x Log-MCR4V
Battery operation: 4 days to 130 days, dependent on logging
External power supply: Micro-USB adapter (not incl.)
Temperature, humidity, UV. Lux data logger with memory
measurement data for PC via USB port
measurement data for PC via RS232 Port
8,000 measurements per Type in memory with date and time stamp
Luminance: 0 - 130,000lux
UV intensity: 0 - 30mW / cm2
External sensors
Free Cloud Service: TD Webstorage for data collector
LCD Display Displays current measurements
PC Software: Tools and presentation included
Dim: 78 x 55 x 18 mm
Battery type: AA X 1
USB Temperature logs incl. Software
Operating temperature: -35 To + 80 ° C
USB interface for set-up and data Download
2 Programmable / custom alarms
IP67
Windows from XP up to 10 (32 and 64 -Bit).
Multi I / O module for measurement and with USB port
16 Analog inputs, +/- 10V, +/- 5V, +/- 2V, +/- 1V
16 bit resolution
frequency Up to 250kHz Total Samplings-Rate
2 Analog Exit +/- 10 Volt
4 Digital Entrance TTL / CMOS
4 Digital Outputs TTL / CMOS
1 Counter Input, 16 Bit
Voltage Variety from USB The port
Buy DAQ Software: NEXTVIEW
Dim: 167 x 113 x 30 mm
16-bit analog-til-digital konverter - høj nøjagtighed
Med temperaturkompensation
4 Megabyte hukommelse til log-data
USB og RS232, automatisk baudrate op til 115.2kbit
Programmerbare inputområder (0-2 VDC til 0-20 VDC)
Batteridrift - 10 års batterilevetid
Tilkøbes: Software til konfiguration, download, plotning, analyse og alarmrapportering (medfølger ikke)
Konfigurerbare alarmkontroller / overspændingskontrol
Målehastighed fra 20 millisekunder (1 kanal) til 12 timer
Robust aluminiumskabinet
Lakeret printkort til beskyttelse mod fugt, korrosion
16-bit analogue-to-digital converter
With temperature compensation
4 Megabyte memory to log data
USB and RS232, automatic baud rate up to 115.2kbit
Programmable input ranges (0-2 VDC to 0-20 VDC)
Battery operation - 10 year battery
Acc: Software for configuring, downloading, graphing, analysis and alarm reporting (not included)
Configurable alarm controls / overvoltage control
Measurement speed from 20 milliseconds (1 channel) to 12 hours
Robust aluminum housing
coated printed circuit board for protection against moisture, corrosion
16-bit 4-20mA to-digital converter
With temperature compensation
4 Megabyte memory to log data
USB and RS232, automatic baud rate up to 115.2kbit
Input ranges (4-20mA, version with 0-50mA)
Battery operation - 10 year battery
Tilkøbes: Software for configuring, downloading, graphing, analysis and alarm reporting (not included)
Configurable alarm controls / overvoltage control
Measurement speed from 20 milliseconds (1 channel) to 12 hours
Robust aluminum housing
Coated printed circuit board for protection against moisture, corrosion
