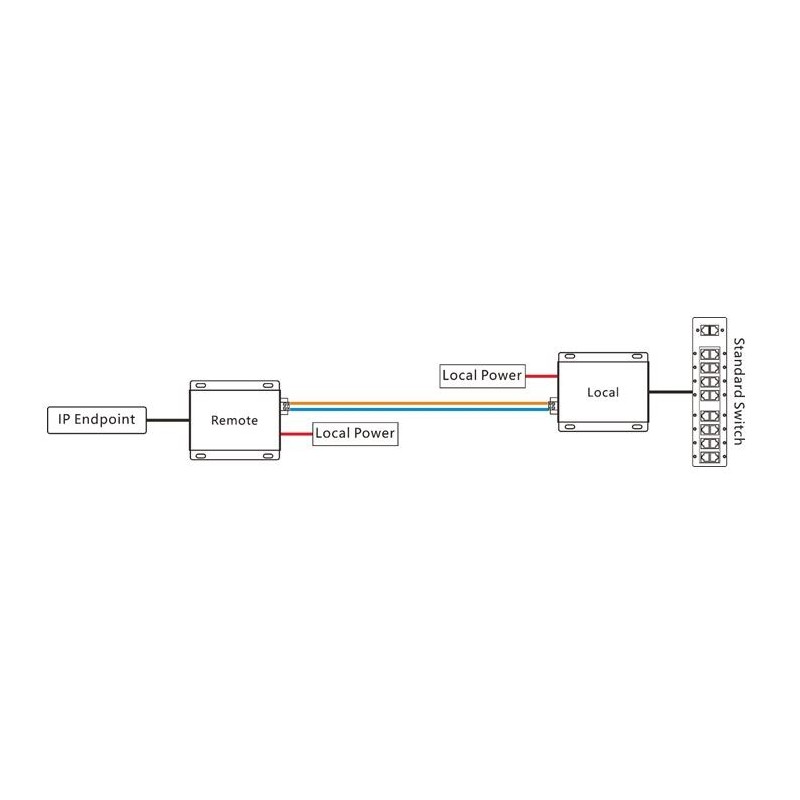

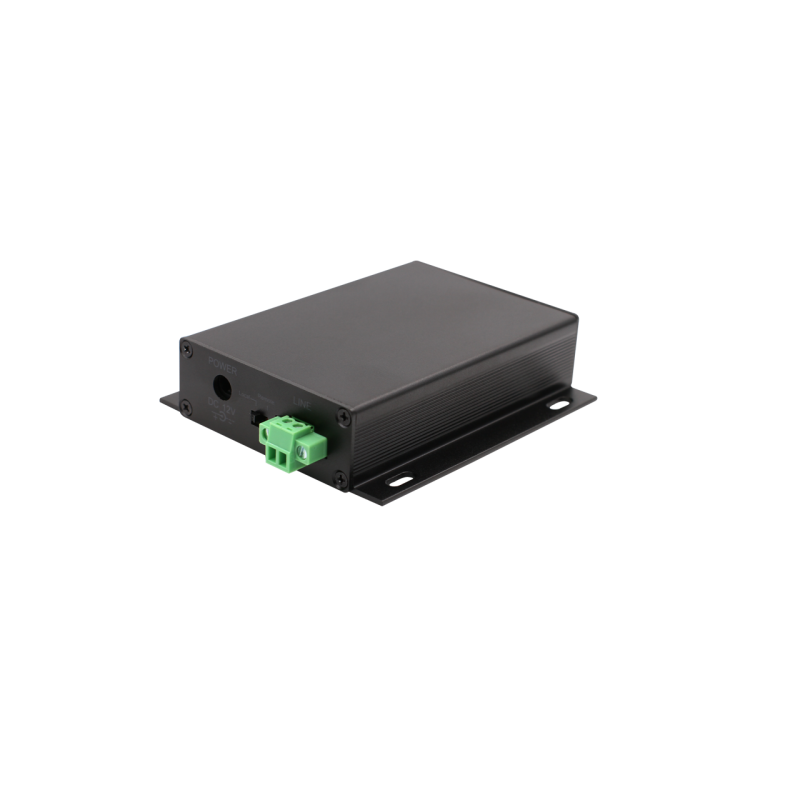

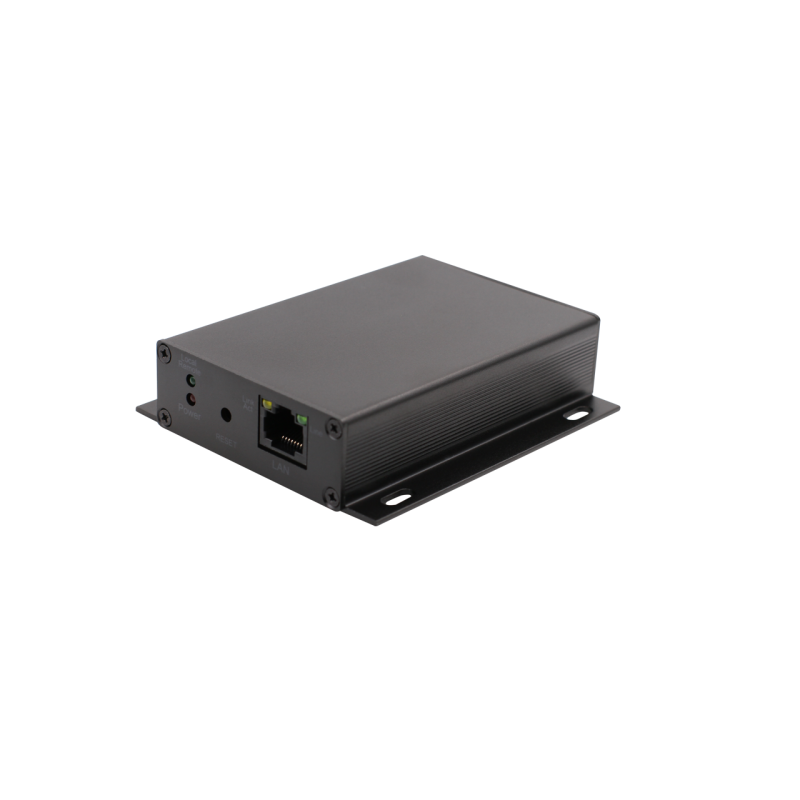

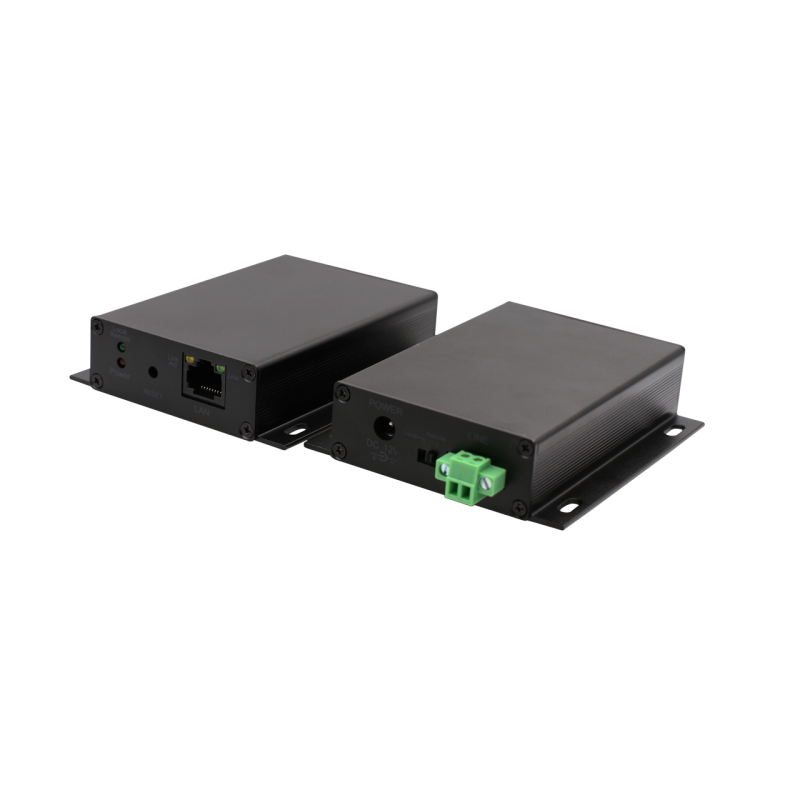

Long Reach Ethernet, VDSL point to point over 2-wire cable, up to 3km, up to 148Mbps

REMAINING STOCK

Ethernet over telephone cable 1 x twisted pair cable

VDSL module with 8 port switch and SFP slot

Up to 100Mbps at 300 meters

Up to 1km - automatic speed adjustment

Break the 100 meter limit with a VDSL connection

Transparent data connection

8 port VDSL2 switch with 2 shared RJ45/SFP ports

Purchase ETH-VDSL2ROUTER to create a link

Use 2 pcs. Eth-VDSL2 + for an Ethernet connection (Bridge)

up to 1.4 km Ethernet connection with 2 pcs. VDSL devices
Poe over 2-wire connection
1 x LAN 10/100 / 1000Base-T RJ45 Auto-MDI / MDI-X Port
1 x VDSL2 RJ11 She
Splitter for analogously Telephone connection included
Power supply: 54V / 0.74A included
POE + (30W) for eg. Access Point, IP camera.
Prepared for your mounting, wall mounting
Your fittings are purchased

Use VDSL connection over 2-wire cable, where Wifi is an unstable connection

Up to 1.4 km over e.g. old telephone cable with 2 VDSL modules

Use 2 pcs. ETH-VDSL2+4+ or ETH-VDSL2+A and ETH-VDSL2+4+

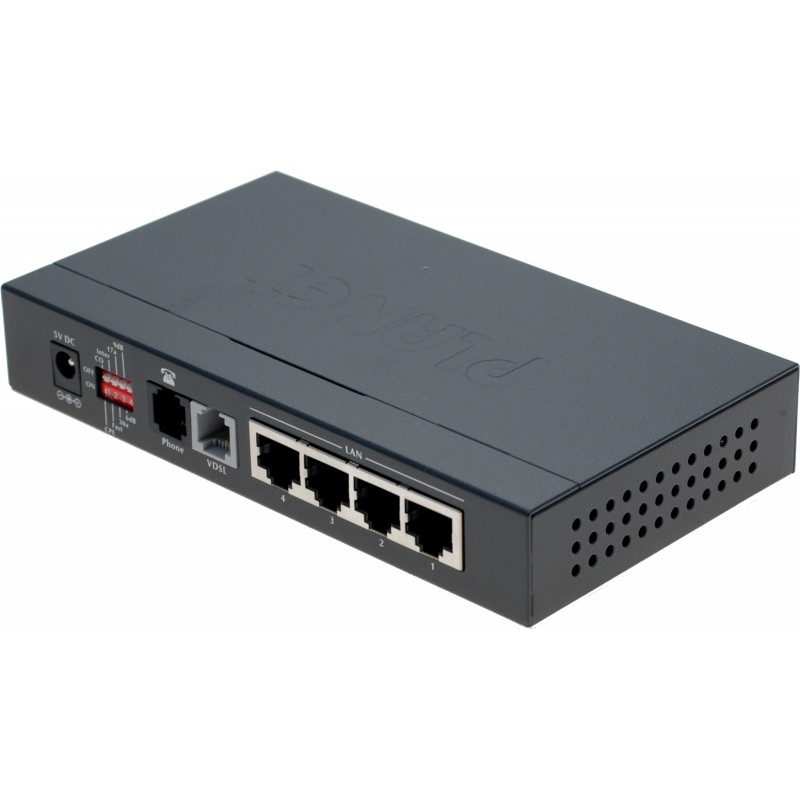

Ethernet over 2-wire connection with VDSL

Ideal solution when the network distance is over the 100 meter limit

Ideal solution when a Wifi link is an unstable connection

Provides a transparent data connection

Supply: 5VDC, 2A power supply included

DIP switch: VDSL connection, one must be set to CPE and the other to CO.

Prepared for DIN mounting, wall mounting. DIN brackets are available separately.

SOLD INDIVIDUALLY! Order 2 pieces for a set.

Dimensions: 155 x 86 x 26 mm

Use VDSL connection over 2-wire cable, where Wifi is an unstable connection
Provides a network connection without affecting data
Up to 1.4 km Ethernet bridge over e.g. 2-wire laid down telephone cable
Speed depends on cable and length - up to 90Mbps
Automatically adjusts speed to highest speed
Can also communicate with ETH-VDSL2+4+ (with 4 port switch)
1 x LAN 10/100 BASE-T RJ45 auto-MDI/MDI-X port
1 x RJ11 female (pin 3 and 4)
Supply: 5VDC, 2A power supply included
DIP switch: VDSL connection, one must be set to CPE and the other to CO.
Prepared for DIN mounting, wall mounting. Your bracket is purchased separately
SOLD SINGLELY! Order 2 pieces for a set.

REMAINING STOCK

VDSL2 router with 4 x RJ45 and Wifi

Network connection up to 1.4 km over 2-wire telephone cables

Point to point connection

2 pcs. ETH-VDSL2ROUTER for one connection

2x SFP module for VDSL2Sold as a pair of 2 SFP modules, 1x receiver & 1x transmitter
Mounted in contacts with SFP slot
RJ45 connector (for 2 wires)
Up to 2 km, depending on the cable quality
Temperature: -20°C to 75°C
Power consumption of 3W from SFP port

Network Extender of RJ45 UTP patch cable
PoE transmitted in the cable from the PSE to the PD
1 x 10 / 100Mbit BASE-TX RJ45
Data rate: 94 - 30Mbps auto-optimization
Auto -negotiation / auto-MDI / MDI-X
PoE Standard: IEEE 802.3at / PoE of
Output: 48-56VDC max. 38 Watt
1 x RJ45 to VDSL + PoE
PoE pin: Pin 1/3/5/7 (+ ) 2/4/6/8 (-)
Distance: 100m m / PoE +, 500m w / PoE, without PoE 1000m
Powered by the 48-56VDC min. 2Amp

Transparent Ethernet connection up to 1200 meters
Medium range from 11 - 80 Mbps up to 1200 meters
Long range from 14 - 89 Mbps up to 700 meters
Range depends on cable quality etc.
Note: 2 pcs. to make a connection.
1 x RJ45 for LAN
1 x RJ45 for Link (RJ11 can also fit in the female connector
DIP switch to select Master or Slave mode
Dimensions: 97 x 70 x 26 mm
Cabinet: Metal
Weight: 189g
Supply voltage: 5VDC/2A
Temperature: 0 - +50°C
