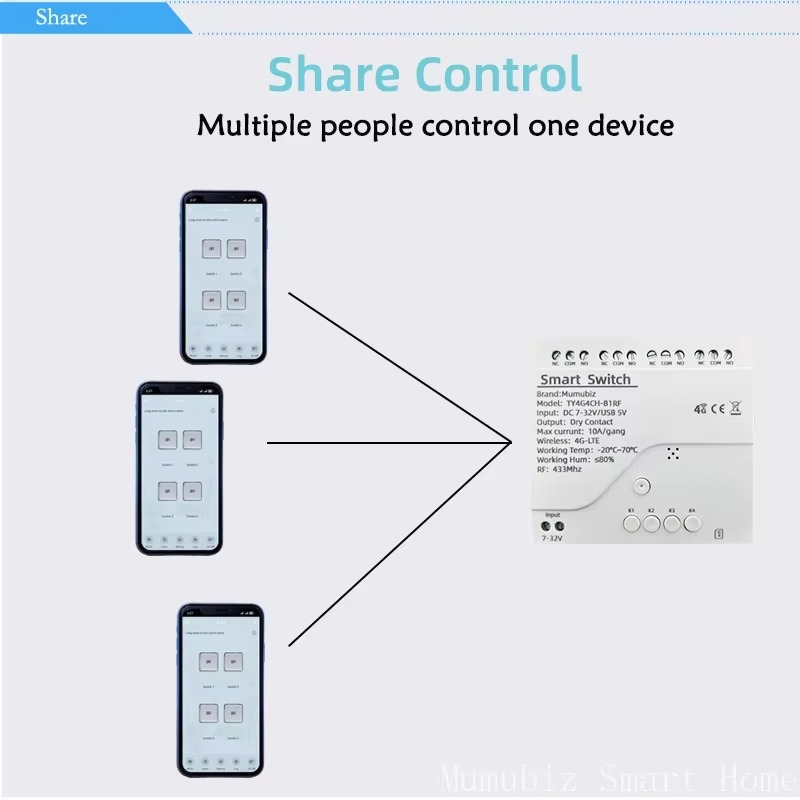

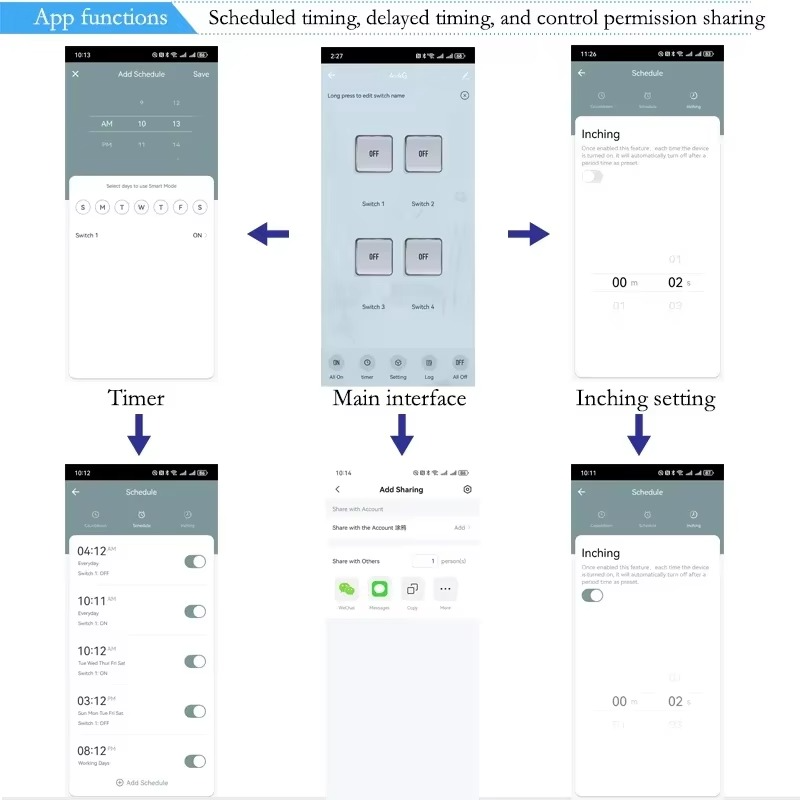

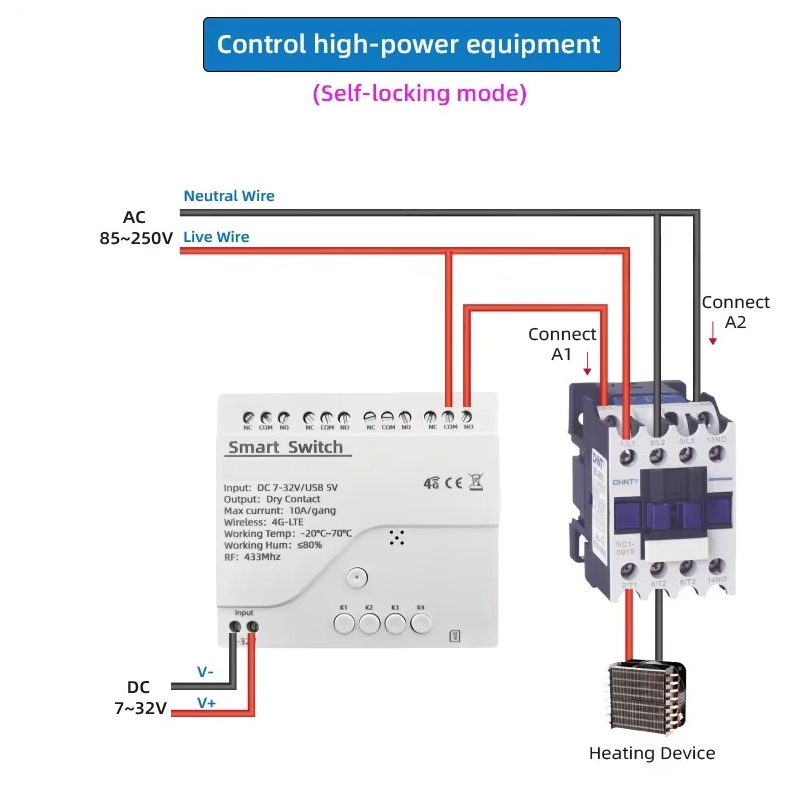

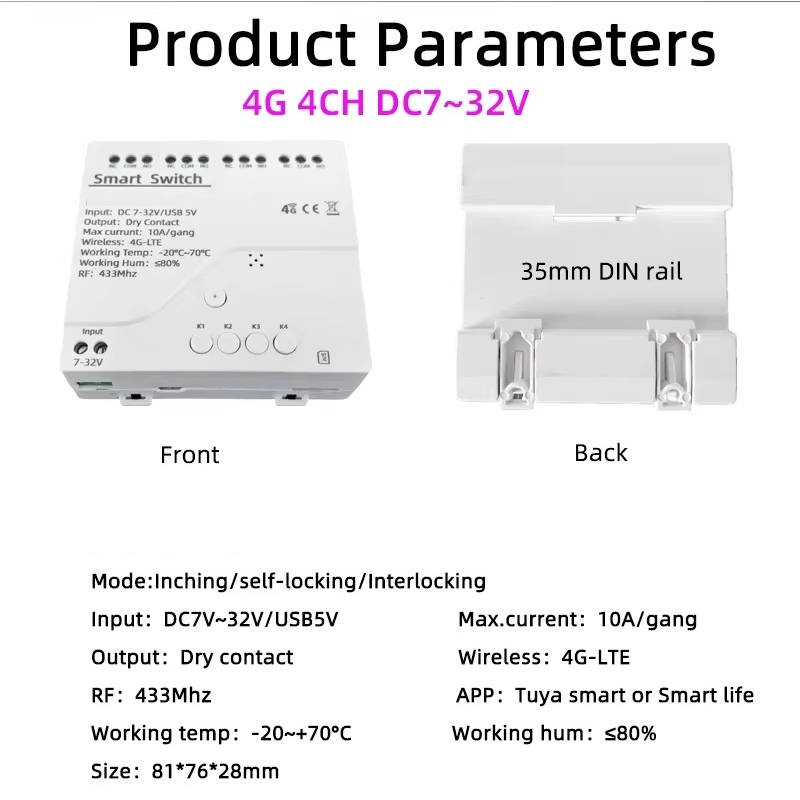

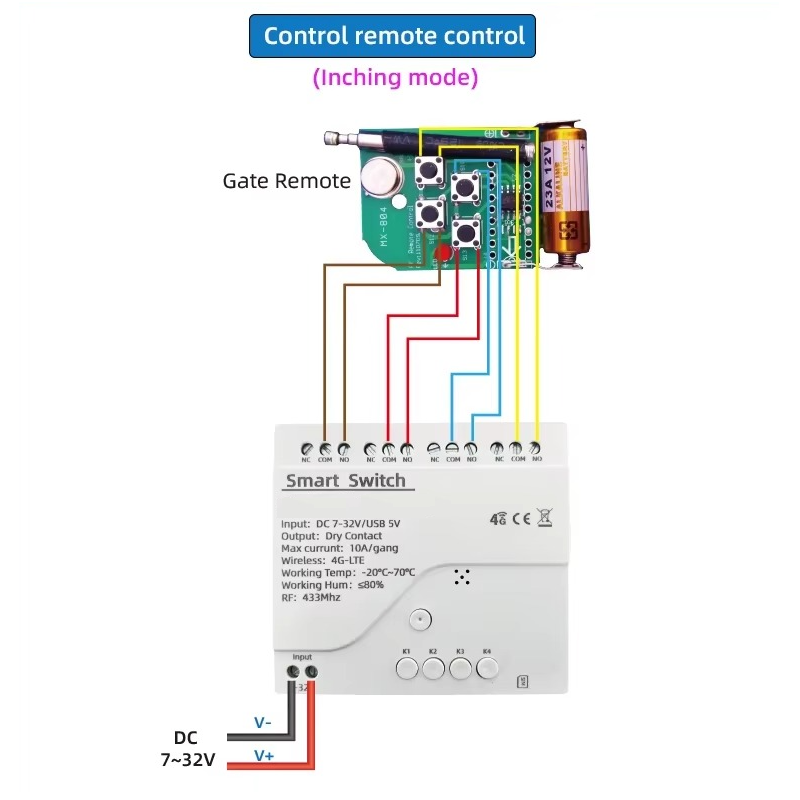

4G LTE Smart 4x Relay 10A, Switch Tuya App Control

16 digitale indgange med isolation, fælles stel. med PoE

16 digital inputs with isolation
Inputs with common frame GND)
DRY input is High at 0VDC on the input.
Built-in 2 port Ethernet switch.
Several devices sit on the same network cable - daisy chain
I/O Pair connection - input is mirrored in the other's output

6 isolerede indgange med fælles stel og 6 relæudgange

Network module with digital I / O Korenix JETI / O 6550
Channels: 14/8
Digital inputs: 14 pcs., Logic 0: 0 - 4 V, Logic 1: 5 - 30V
Digital outputs: & nbsp; 8 pcs. Open collector, 5 - 40 V 250mA
Isolation: Optical 2500 VRMS for analog and digital inputs and outputs for the power supply
Magnetic 1500 V from the network interface for the power supply
10/100 Mbit m / RJ45 their connector
Operating temperature: - 25 ° C - 70 ° C
Supports Modbus / TCP, OPC server, SNMP. Software included for configuration
For DIN rail mounting
Supply: 10 - 30 VDC via terminal block, Max 1.92 W

Modbus TCP Slave Module LAN or Internet
6 x Relay, End Contact 250VAC / 5A, 30VDC / 5A
Avoid inductive load
6 x Digital input. High is 10 - 50V
supply via PoE or 12 - 48VDC
is with I / O Pair Connection - Input is mirrored to exit.
with important "Sale Setting" which sets relays as desired
watchdog which sets relays in "Safe Setting" in error detection
Dim: 123 x 72 x 35 mm
built-in your bracket

16 x digital input over Ethernet / MQTT
input voltage: Up to + 50VDC
Built-in Web server
Modbus TCP / UDP and MQTT protocols
2 Ports Ethernet switch (LAN Bypass ) To Daisy-Chain
Double watchdog (programmable)
I/O-Pair connection (push and poll)
support web configuration and firmware update via Ethernet
16 x input channels for Wet switch and DRY switch
Wet is active at voltage in
Dry is active at closing contact
LED display To display I / O status
Dim: 127 x 99 x 33 mm
Supply voltage: 10 - 48VDC / 3W

8 x Digital input over Ethernet / MQTT
8 x Digital output over Ethernet / MQTT
Input voltage: up to +50VDC
Built-in Web Server
Modbus TCP/UDP and MQTT protocols
2 port Ethernet switch (LAN Bypass) for Daisy-Chain
Double watchdog (programmable
I/O-pair connection (Push and Poll)
Supports web configuration and firmware update via Ethernet
8 x input channels for Wet contact and Dry contact
Wet is active when voltage is applied
Dry is active at closing contact
LED display to show I/O status
Dimensions: 127 x 99 x 33 mm
Supply voltage: 10 - 48VDC / 3W

8 Potential-free relay outputs - 230Vac / 16 A, 24VDC / 10 A
Relay outputs are individually via HTTPS, SNMP or Command
Startup delay from 0 to 9999 seconds. Adjusted individually
Inrush Delay is set to 1 second
Programmable on / off sequence
Activating relays can be controlled from sensor or inputs
8 channel watchdog via ICMP / TCP Ping
8 signal entrances From NO and NC units, door contacts, etc.
Entrance to sensors Temperature, humidity and air pressure
Messages via e-mail, Sylog and SNMP Trap MQTT
Depending on thresholds for sensor measurement and signal input
LED display for overall power, IP address, sensor data and error reports
Android app and iOS app
DIN bracket
