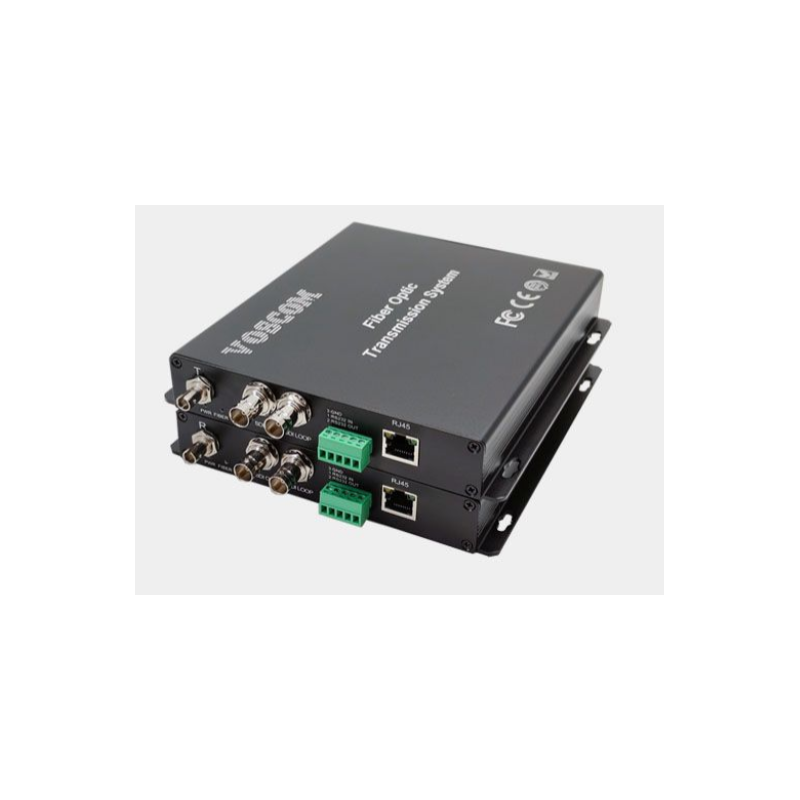

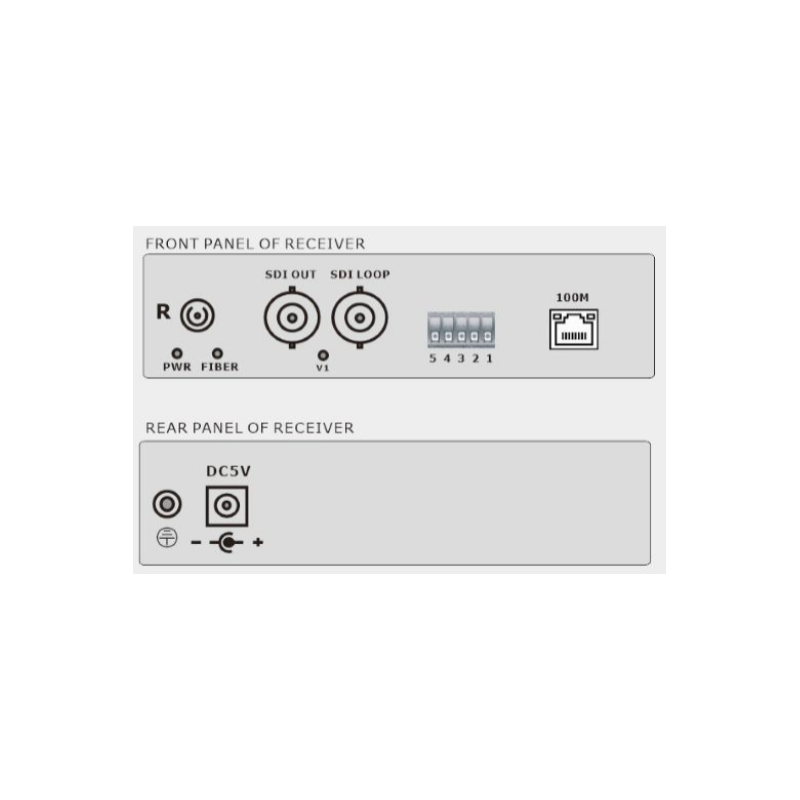

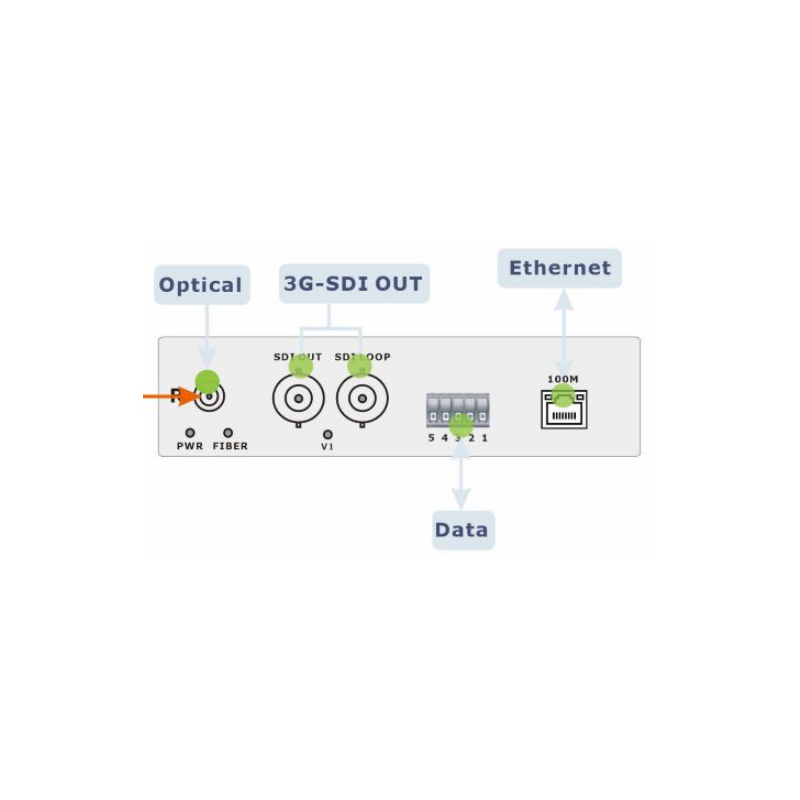

3G-SDI extender over simplex fiber, Ethernet, Serial

Composite Video, BNC, over Single Mode 9/125my fiber cable
Set consists of transmitter and receiver module
Only single fiber (simplex) is used for digital transmission
Feel free to use normal duplex fiber cable, where one fiber is not used
Up to 10km between transmitter and receiver
Stand-alone or rack mounting

1 pc. 4 channel HDMI transmitter

4 pcs. HDMI-MULTI-R4 receivers

Up to 70 meters to receivers

Resolution up to 1080p@60Hz.

HDMI distribution up to 70M.

No external power is required for the RX unit.

Built-in HDMI loop out port on TX unit for an additional HDMI display.

Can be stacked to another TX for 1 in 8/12 out.

Supports RS232, CEC, EDID.

Supports RS232 control.

Professional wireless HDMI 1.3 link, very high quality, very high performance
Max. distance up to 120 meters, depending on conditions
HDMI HD and 3G SDI input and output
No delay and no compression
Audio formats include Dolby True HD, DTS master, etc.
AES-128 encryption with air-interface HD video data stream
Can transfer HDMI from point to point
Transmitter and receiver are paired for optimal performance from the factory
Within the same coverage area, 4 sets can work simultaneously
Signal power indicators
Metal housing, compact design
Note: take home only on order.
Orders placed cannot be cancelled.
No right of return.

Transmits uncompressed HD video and audio over CAT6a / 7 cable up to 100 meters
Can be powered monitors or receivers with hdbaset with PSE
PSE is the equipment that sends PoE out on RJ45 port
Power from mini-USB with no PSE connected
Map HDMI cable, eliminating the need for extra cables
Resolution up to UHD (3840 x 2160), Deep Color and HD Audio formats
4K @ 60Hz 4: 2 : 0
4K @ 30Hz 4: 4: 4
HDCP compliant and Blu-ray ready
Plug and Play no software installation
Compact size.
Easy to install
REQUIRE THE BEST QUALITY CABLE! No support if the cord is from Danbit

Receives HDMI video signal via Cat.6A cable up to 100 meters
Resolution: 4K @ 60Hz 4: 2: 0)
Resolution: 4K @ 30Hz 4: 4: 4
Full HD (1920 x 1080)
User hdbaset technology
PoE (POH) - only a power supply of the receiver unit.
HDCP compliant and ready for Blu-ray
Supports IR remote
automatic power saving function (can selectable)
Plug and Play, no software installation
Powered by 48VDC
Dimensions: 140 x 85 x 34 mm
REQUIRE THE BEST QUALITY CABLE! No support if the cord is not from Danbit

4 x HDMI inputs to 4 x HDMI outputs
Viewing the screens 4 are summarized on a screen
display screen 1 distributed over 4 skærme
Can used with DVI adapters

HDMI Video Receiver with PoE
Transmitter Module is purchased: HDMI-Multi-HD-T
Video Wall with a maximum of 64 units
H.264 Video Encoder / Decoder, IR transfer
Delay of approximately 1 second from transmitter to receiver
HDMI 1.4a
Connection over IP - Use switch with IGMP Snooping
Max. 64 Groups
Range Up to 100m - Point to Switch or to Transmitter
Cables Cat 6a. Good quality
Edid Emulation - possibly not on all screens, then buy it from Danbit
1 x RJ45, 1 x DB-9, 1 x HDMI exits
Supply IEEE 802.3AF / to POE + or 5V DC, 2a (not included)
Requires quality switch When used over IP
Dim: 130 x 82 x 30 mm

HDMI video transmitter PoE
Suitable for video wall
With HDMI Loop Out
Delay of approx. 1 second from transmitter to receiver
HDMI 1.4a - H.264
By IP multicast use switch with IGMP Snooping
Range up to 100m
Cables Kat. 5th / 6
EDID Emulation
IR Transfer
1 x RJ45, 1 x DB-9, 1 x HDMI Input, 1 x HDMI Output
Supply IEEE 802.3af / at PoE +; 5V DC, 2A (not supplied)
As receiver, use HDMI-MULTI-HD-M
