16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,
Supports a 32-bit 5 V PCI bus
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output

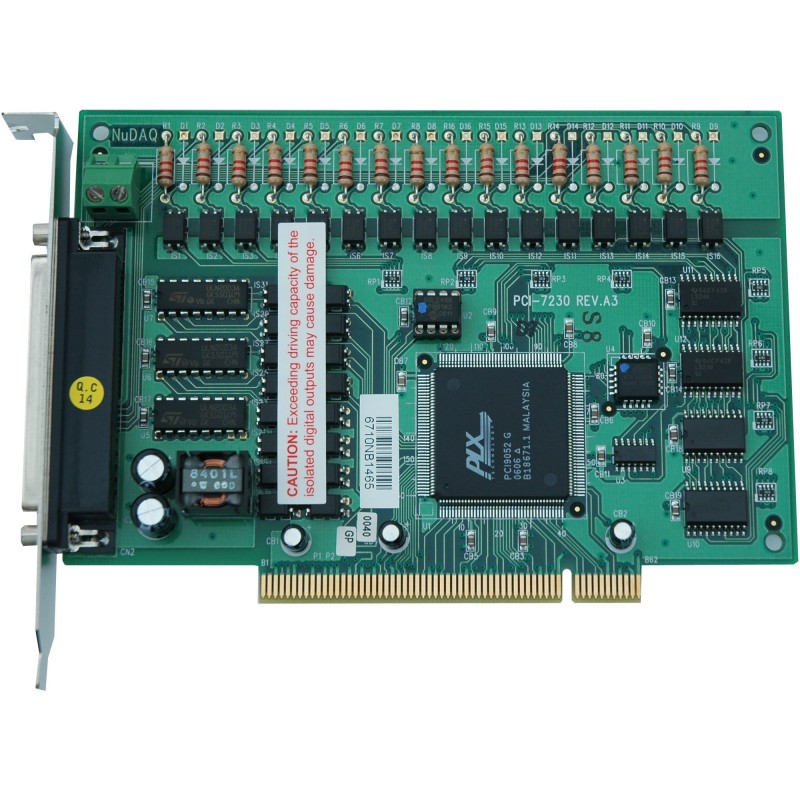

OPTO16I16PCI (ADLINK"s PCI-7230) is a 32-CH isolated input and/or output cards which provide a 2,500 V optical isolation protection. The wide input range of the OPTO16I16PCI makes it easy to sense the status of external devices. The non-polarity characteristic is suitable for a wide variety of industry applications. The OPTO16I16PCI device also feature a wide output range from 5 to 35 V, which is suitable for relay driving and industrial automation applications. The OPTO16I16PCI also provide two interrupt sources on digital input chanenels.
Plintkort med skruvplintar
DB37 hane / hanekabel på 1,8 m ingår.
För DIN-skena montering
103 x 85 x 50 mm (B x L)
Support a 32-bit 3.3 V or 5 V PCI bus (LPCI-7200S)
32-CH TTL digital inputs and 32-CH TTL digital outputs
Up to 12 MB/s transfer rate
Bus mastering DMA for both digital inputs and outputs
On-board programmable timer pacer clock
Supports hanedshaking digital I/O transfer mode
Multiple programmable interrupt sources
Compact, low-profile PCI size PCB
16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,
Supports a 32-bit 5 V PCI bus - LOW PROFILE CARD
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output
PCI 10 kanal 16 - bitars räkna kort
Supports a 32-bit 5 V PCI bus
On-board four 82C54 programmable timer/counter chips
10-CH independent 16-bit down counters
1-CH 32-bit cascaded timer
Four programmable clock sources for each timer/counter
Programmable de-bounce filter for external clock & external interrupt inputs
8-CH TTL DI & 8-CH TTL DO
8 av de digitala utgångarna kan dra upp till 500 mA per. kanal
32-CH optical-isolated digital input
32-CH optical-isolated digital output
Isolation Voltage: 3750 Vrms (Using external power)
Card ID: Jumper setting for multi-board identification
Open Collector: 8-chanenel - 500mA, Current Sinking, NPN
Open Collector: 24-chanenel - 100mA, Current Sinking, NPN
