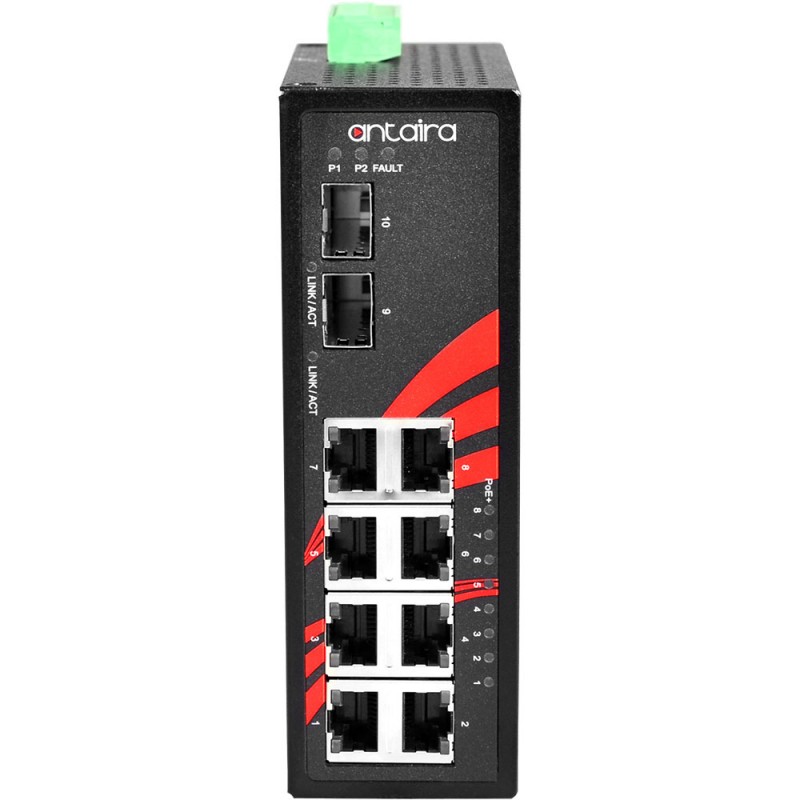

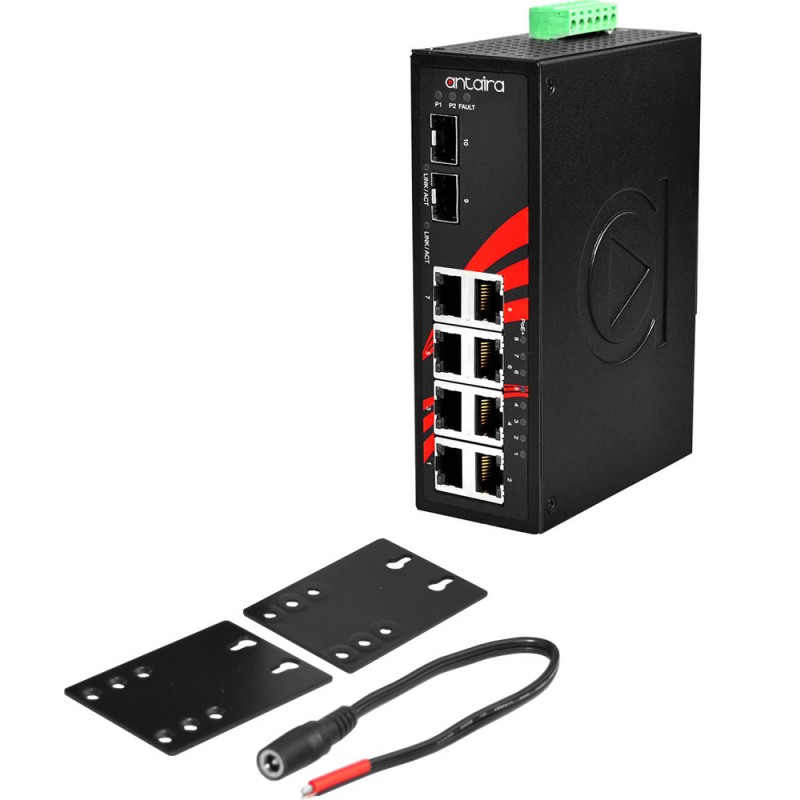

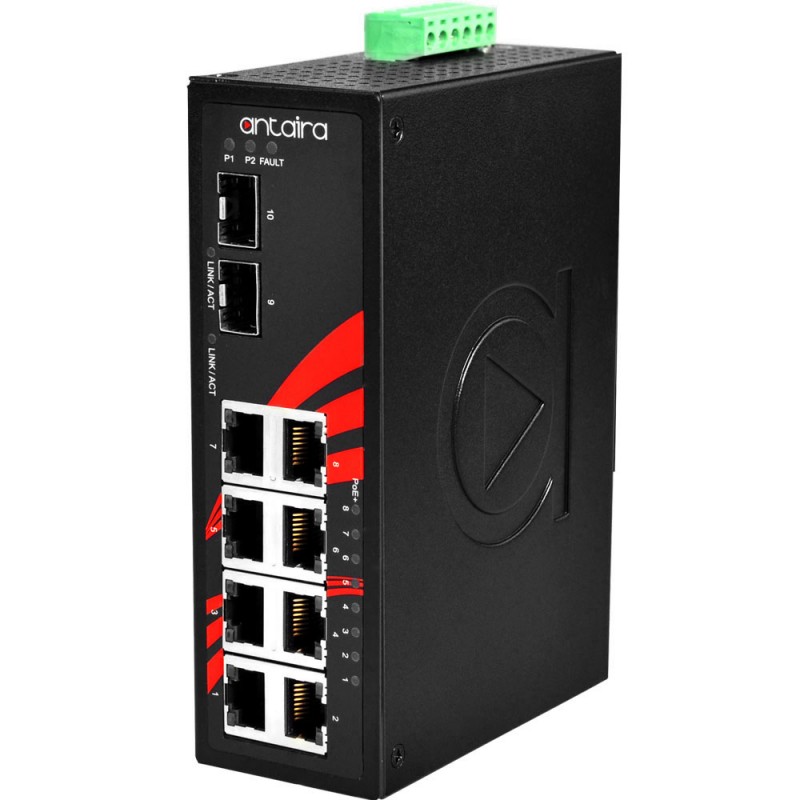

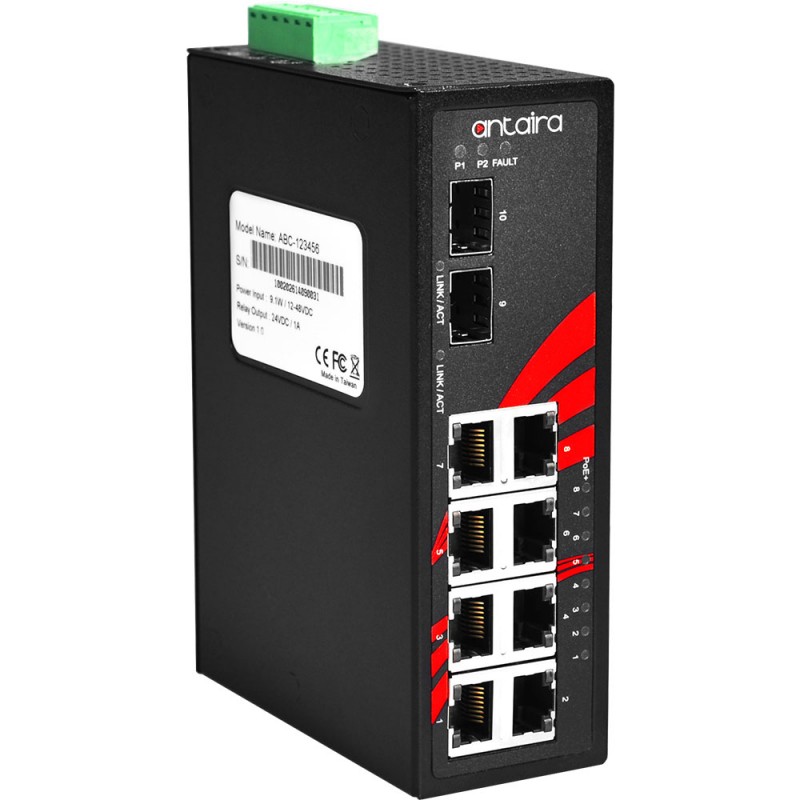

10-Ports industriel PoE+ unmanaged switch med 2 SFP porte og 8 RJ45 porte.

8 x 10/100/1000Tx RJ45 IEEE 802.3at PoE+
2 x 100/1000 SFP porte
Auto MDI/MDI-X Funktion
Store-and-Forward Switching Architecture
20Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
UL Class I, Division 2 Certified
Strømforsyning: 48~55VDC
Indbygget relæ Output for Power Failure
IP30 Rugged Metal Case Design

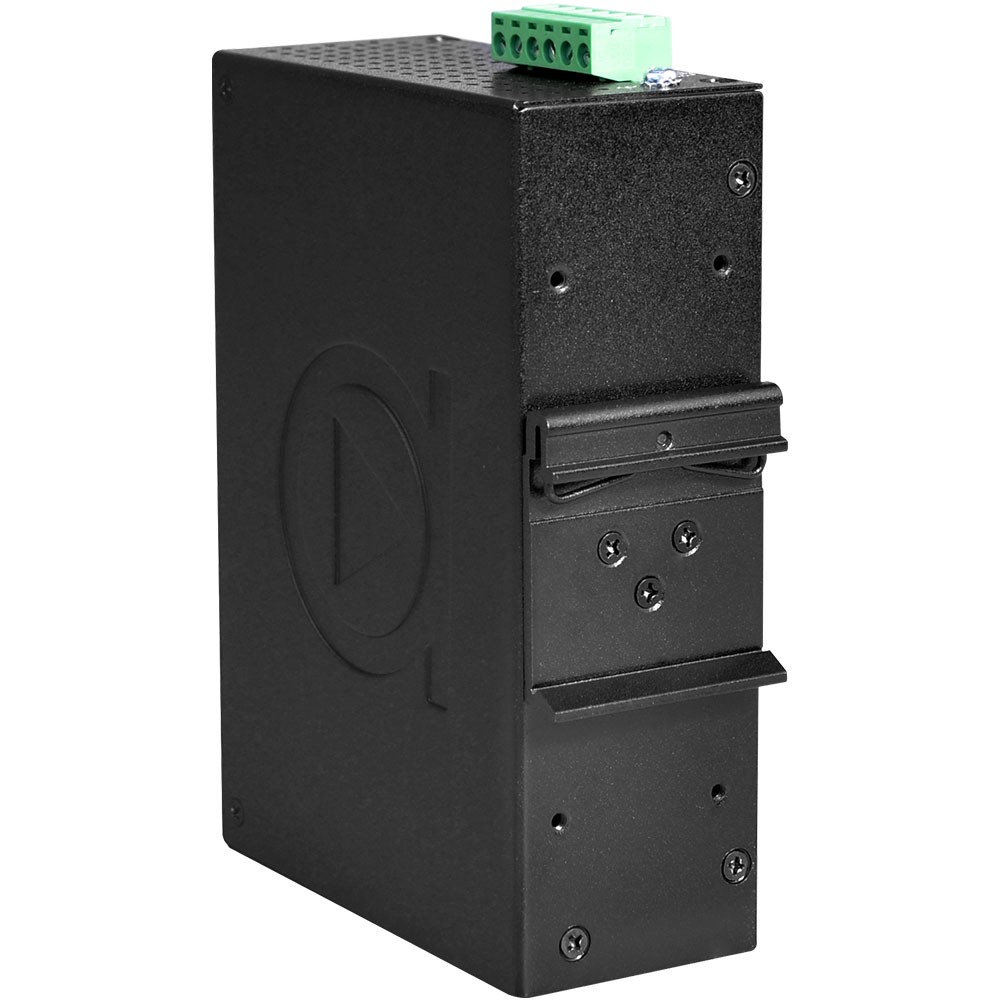

DIN-Skinne og Væg montering
Driftstemperatur STD: -10° to 70° C​

ANR-LNP-1002G-SFP
6.068,00  DKK
Ekskl. moms
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål
Certifications
FCC, CE, UL 61010-1, UL 61010-2-201, UL Class 1 Division 2, ISA 12.12.01
Dimensioner
46 x 99 x 142 mm (W*D*H)
Driftstemperatur
STD: -10° to 70°C
Ethernet
8 x RJ45 Ports w/10/100/1000Tx (PSE 30W/Port)
Fiber
2 x 100/1000 SFP Slot
Luftfugtighed
5 to 95%, (non-condensing)
Materiale
Metal, IP30 protection
Montering
DIN-skinne og væg montering
Netværk
10Base Tx: 2-pair UTP/STP Cat. 3,4,5 100Base Tx: 2-pair UTP/STP Cat. 5 1000Base Tx: 2-pair UTP/STP Cat. 5/5E
Protokol
CSMA/CD
Standarder
IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3ab 1000BaseTx IEEE 802.3z Gigabit Fiber IEEE 802.3at PoE+
Strømforbrug
210 Watts @ 48V 250 Watts @ 51-55V (Full Load w/ PoE)
Strømforsyning
48~55VDC, Redundant Input
