CPU Intel® 14th/13th/12th Core™ LGA1700 Socket (Max. 35W)

RAM 1 x 262-pin DDR5 SO-DIMM 4800/5600MHz SDRAM MAX.32GB

Intel® H610E, Integrated Intel® UHD Graphics 730/770

1 x 2.5GbE ports 2 x GbE ports, (1 x Intel® i226LM, 1 x Intel® i219LM,1 x Intel® i210AT)

Watchdog Timer

TPM: dTPM 2.0

2xCOM ( 1x RS232, 1x RS232/422/485)

8x USB ( 2 x USB-A 3.2 Gen2 (10Gbps) 2 x USB-A 3.2 Gen1 (5Gbps) 2 x USB-A 2.0 2 x Internal USB-A 2.0)

1 x M.2 E-key 2230 slot (PCIe 3.0 x1 + USB2.0 + CNVi)

1 x mPCIe (PCIe 3.0 x1 + USB 2.0, Full size) w/ 1 x nano SIM card slot

1 x DisplayPort 1.4 (DP++), up to 4096x2304@60Hz

1 x VGA, up to 1920x1200@60Hz

1 x M.2 M-key 2242/2280 slot (PCIe 4.0 x4 + SATA)

Wall-mount (standard), DIN-rail (optional w/ CTOS bracket)

-20 ~ 60°C, ambient w/ air flow

CE, FCC Class A

Dimensions (W x D x H) 55 x 164 x 210mm

DC 12~24V via 2-pin terminal block, max. 80W

OS SUpport: Windows 10 / Windows 11 / Ubuntu

Intel® Core™ i7-1255U (Alder Lake, 10 cores / 12 threads, 1.7GHz up to 4.7GHz)

Intel® Iris® Xe Graphics – supports 4× HDMI 2.0 (4K output)

DDR4 SO-DIMM – up to 64GB RAM

1× M.2 NVMe SSD

1× SATA3.0

Network:

1× Intel® i225 (2.5GbE)

1× Intel® i219 (1GbE)

PXE boot supported

Serial ports: 6× RS232 (COM)

4× USB3.2

4× USB2.0

Audio: 1× Mic-in, 1× Line-out

Expansions: 1× M.2 slot for Wi-Fi (Intel® CNVi), 1× external antenna

Case: aluminum, passive cooling, silver color

Dimensions: 255×220×60 mm, weight 1.6 kg

Operating temperature: -20°C to +60°C (requires special RAM and SSD)

Power supply: DC 19V

OS Support: Windows 10/11 and Linux 64-bit

Can be configured with desired RAM, SSD and operating system, contact us

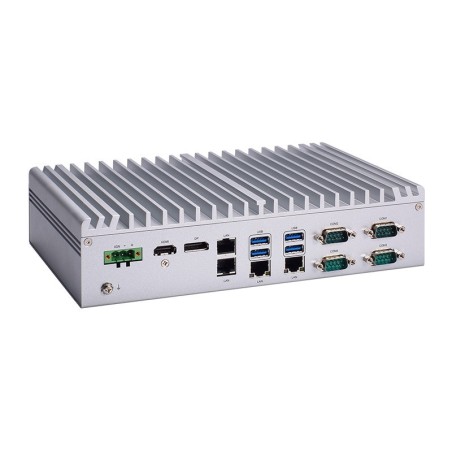

Intel® Core™ Ultra processor (Meteor Lake-H)

2 versions:

Intel® Core™ Ultra 7 processor 155H (16 cores, 28W TDP)

Intel® Core™ Ultra 5 processor 125H (14 cores, 28W TDP) Standard model

Equipped with multiple compute units, CPU, GPU (Intel® Arc™ GPU, applicable to H-series) and NPU (Intel® AI Boost), the system delivers high performance and efficient AI acceleration in a single platform.

Supports DDR5-5600 SO-DIMM memory, up to a maximum of 96 GB.

4 x USB 3.2 Gen.2 (Type-A)

2 x USB 2.0 (Type-A)

1 × USB Type-C (DisplayPort/USB 10Gbps support)

1 x USB (DisplayPort/USB 10Gbs with 30W power delivery support)

1 × HDMI 1.4b

3 × DisplayPort (of which 2 via USB Type-C).

3 x 2.5 GbE LAN ports with TSN (Time-Sensitive Networking)

1 x 1GbE port.

2 x 2.5" swappable HDD/SSD bays

1 x full-size PCI Express Mini Card (USB + PCIe signal)

1 x M.2 Key E 2230 slot for Wi-Fi (USB 2.0 + PCIe signal)

1 x M.2 Key M 2280 slot for NVMe storage (PCIe x4 signal only)

Operating temperature range from –40°C to +60°C (requires special RAM and SSD)

Supply voltage 9 to 60 V DC. Phoenix-type VDC power input connector

Supports Intel® 14th/13th/12th-Gen Core™ 24C/ 32T 35W/ 65W LGA1700 CPU

1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette for installing an NVIDIA® graphics card up to 130W TDP (Max. graphics card dimension is 188 mm(L) x 131 mm(W), dual slot allocation)

Support NVIDIA® RTX series GPU card up to 130W TDP

5 x 2.5GbE and 1xGbE with on special request PoE+ (ports 3~6)

1 x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screwlock

4 x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors

2 x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors7 x USB 3.2

2 x USB 2.0

2 x RS232/422/485 (COM1/2), 2 x RS232 (COM3/4)

1 x Mini PCIex, 1 x Full-size mini PCI Express socket

M.2 2280 M key socket (Gen4x4) supporting NVMe SSD

Accommodates two 2.5" SATA HDD/ SSD with RAID 0/ 1 support*

1 x VGA 1920x 1200, 1 x DVI-D 1920x1200, 1 x Display port 4096x2304

MezIO™ interface for add-on expansion

-25°C to 60°C wide temperature rugged operation

CE/FCC Class A, according to EN 55032 & EN 55035

240 mm (W) x 225 mm (D) x 110.5 mm (H)

Model 0: No PCI/PCIe expansion

Model 1: 1 x PCI/PCIe slot

Model 2: 2 x PCI/PCIe slots - supports GPU cards up to 130W

CPU: Intel® Core™ i9/i7/i5/i3 (14th/13th/12th generation, LGA1700, max. 65W TDP)

RAM 2x DDR5 SO-DIMM, ECC/non-ECC, up to 5600 MHz, max. 64 GB

2x 2.5" SATA

3x mSATA sockets

1x M.2 Key M for NVMe SSD

2x GbE LAN (upgradable to 2x 10 GbE LAN upon order)

Up to 2x PCI/PCIe slots

1x M.2 + 2x Full-size Mini PCIe

Support for CMI and CFM modules (including for I/O expansion, ignition control, and PoE+)

2x DisplayPort

1x VGA

Up to 8x USB (USB 3.2 Gen2 and USB 2.0)

4x COM (RS-232/422/485)

9–48 VDC input, with ignition control

Operating temperature: -40 °C to 70 °C

Certifications: Military: MIL-STD-810G, Transportation: EN50155 (EN 50121-3-2), Safety: UL, cUL, CB, IEC/EN 62368-1

Supports Intel® OpenVINO™

Intel® ESDQ Certified: Edge Insights for AMR Software Stack

The system is assembled according to your needs. Contact us for advice and pricing.

Intel 14th, 13th, 12th Gen i9/i7/i5/i3

1 x RS232, 1 x RS232/422/485

2 x USB-A 3.2 Gen2, 2 x USB-A 3.2 Gen1, 2 x USB 2.0

1 x 2.5Gb, 2 x Gb (+4 x Gb PoE with expansion)

1 x DisplayPort 1.4, 1 x VGA Video Output

16 x Digital Inputs, 16 x Digital Outputs (Expansion can be purchased)

M.2 2242/2280 M-Key Slot

1x mPCIe slot and 1x nano SIM card slot

Shock resistance: 30G non-operation

Strømindgang: DC 12~24V

Operating temp: -20°C to 60°C, Humidity: 10-95%

Dimensions: 55 x 164 x 210 mm, Weight: 2.5kg

Supports Windows 10, Windows 11, Ubuntu

Intel® Celeron® J6412, Quad-core, clock speed 2.00 GHz, up to 2.60GHz, TDP 10W
processor IP67 Full Fanless Solution
Memory: 4GB RAM Max. Capacity 32GB
Storage: 128GB SSD
1 x HDMI
2 x USB
2 x Ethernet Intel I225-V GBE LAN Chip (RJ45, 10/100/1000 Mbps)
Security support TPM 2.0 onboard IC
Built-In WiFi, Bluetooth
-10℃~+55℃
Power 12V DC
Without OS: wupport Windows 10/11

14/13/12th Gen Intel® Core™ Series 65W max
2x DDR5 4800 MHz SO-DIMM Socket, 64GB max
1x DP, 1x HDMI, 1x VGA
1x MXM 3.1 Type A/B for GPU module
1x 2.5GbE and 1x 1GbE LAN,
1x 20Gbps USB3.2 Gen2 x2, Type C Connector
3x 10Gbps USB3.2 Type A, 4x 5Gbps USB3.2 Type A
4x M.2 NVMe SSD or SATA SSD
Operating temperature -40°C to 70°C
Power Input 9-48 VDC
Dimension 260 x 200 x 85 mm
Support OS: Windows®11, Windows®10, Ubuntu Desktop 22.04 LTS

Rugged embedded PC for industrial edge AI, machine vision, and deep learning

Supports 12th/13th/14th Gen Intel® Core™ processors (up to 65 W)

Supports up to 96 GB DDR5 memory

Dual or single full-length GPU expansion option with combined 500 W power budget

4× hot-swappable 2.5" SATA bays + multiple M.2 slots

Supports RAID 0 / 1 / 5 / 10

4× 2.5GbE LAN (optional 10GbE), 6x USB 3.2 Gen1x1 , 2x RS-232/422/485

Modular design for scalable I/O with expansion modules (CMI/CFM)

Temperature operation: –40 °C to 70 °C (depending on CPU config)

Power input: 9 - 48VDC

Os support: Windows 10/11, Ubuntu 22.04 LTS

Certified to MIL-STD-810H and other industrial standards for shock, vibration, and safety

Intel® Celeron® J6412 CPU Elkhart Lake (2.0GHz/2.6GHz)
1 x SDRAM DDR4 3200 MHz (max. 32G)
4 x Gigabit LAN, 1 x Intel I210AT GbE controller, 3 x Intel I226-V 2.5GbE controllers
2 x USB 2.0
2 x USB 3.1
1 x HDMI up to 4096x2160 @ 24 Hz
1 x DP up to 4096 x 2160 @ 60 Hz
SIM slot for 3G/4G
Supports M.2 SSD
M.2 Wi-Fi
1 x MPCIe (PCIe/USB 2.0 signal supported)
1 x E-Key m.2 2230 slot (PCIe/USB2.0 signal supported)
1 x m.2 2242 SSD slot (SATA signal supported
165 x 125 x 45mm (W x HXD)
DC 12-24V, 2-pin phoenix connector
Windows 10, Ubuntu 20.04

Intel Gen. 13/12 LGA 1700 35W Processor Core/Pentium/Celeron
Intel R680E
TPM 2.0
Max. 64GB RAM
Quad display: 1xVGA (1920x1200), 3xDP 4096x2160), (3xHDMI 4096x2160 on special inquiry)
9 x USB3.2 (Gen.2)
6 x RS232/422/485
2 x 2.5GbE Intel i226-IT
4 x GbE Intel i350-AM4 or 4 x GbE POE+ (Expansion modul on request)
Audio line in/out
8 x Isolated DI and 8 Isolated DO (2 x 9-pin Terminal block)
2x 2.5" Sata III
2 x M.2
2 x SIM socket
-40°C ~ 70°C
240x200x88mm
9-48V DC Input with Ignition Control
CE/FCC Class A
OS Support: Windows 10 IoT, Windows 11 (IoT/Professional), Linux

1.91 GHz Intel Atom E3845 CPU
Wall mount/VESA mount
1x 204-Pin SO-DIMM DDR3L-1066/1333Mhz, MAX. 8GB
2 x RS232/422/485 (M12)
2 x USB 2.0 (M12)
2 x 10/100/1000 Mbps Ethernet Intel i210-IT (M12)
1 x VGA
1 x 2.5” HDD drive bay (max. up 9.5 mm height)
1 x mSATA (enabled in BIOS setting)
1 x CFast™
-30°C to +60°C
210 x 366.83 x 83 mm (8.27” x 14.44” x 3.27")
9 to 36 VDC power input (M12)
OS Support: Win 10 IoT, WE8S, WES7, Linux

i7 Haswell i7 4578U 3.0GHz, Dual Core, 4 Threads 4MB Cache
2 x SO-DIMM DDR3L, Max. 16GB
TPD 28W
Intel Irus Graphics 5100
2 x Intel Gbit RJ45, Wake on Lan, PXE
6 x RS232/422/485 (2 is BIOS select RS422/485)
8 x USB (4xUSB3.0, 4x USB2.0)
SIM card slot
GPIO
HDMI, VGA (dual display support)
1x MSATA3.0, 1x mini PCIe
-20 ~ +75 Centigrade (requires special RAM)
OS Support: windows 7, 8, Windows 10, Linux
212,5x149,5x52mm
12Vdc

Fanless design (embedded heat pipe cooling solution)

12/13 generation CoreTM i9/i7/i5/i3 processor (Alder Lake-S/Raptor Lake-S)

Up to 60W GPU MXM module expansion

802.3af (15.4W)/802.3at(25.5W) Gigabit PoE ports

DP x2 + HDMI x 1 and DVI x 1 (supports 4 independent displays)

On/off delay control / configurable ignition current control

Supports TPM 2.0 and Time-Sensitive Networking (TSN)

Two mPCIe for optional WiFi/3G/4G/GPS or I/O expansion supported

Front-accessible I/O

1 x M.2 B for storage or 5G/LTE +1 x M.2 E-key for WiFi/BT

1 x M.2 M for NVMe SSD

285x230x 90 mm (9.84" x11.50" x 3.54"), fanless 285x230x110 mm (9.84" x11.50" x 4.33"), w/ FAN

DC 9~36V input

CE, FCC Class A, E-mark

optional extras

Intel Celeron® J6413, Quad Core 1.8 GHz processor
1x 260-pin DDR4 SODIMM. Max. up to 32 GB
Dual independent screen with 2x screen port
1x 2.5 GbE, 1x GbE supports (Wake-on-LAN and PXE)
1x 2.5" SATA HDD bay, 1x mSATA
1x M.2 (B-KEY, 2242/3042/3052, supports 4G/LTE)
1x full-size mini-PCIe for communication or expansion modules
2x RS-232/422/485
3x USB 3.2 Gen2, 1x USB 2.0
M.2
SIM socket
watchdog
9 to 36VDC Wide Range Power Input supporting AT/ATX mode
Wide operating temperature -20°C to 50°C
TPM 2.0 supported
With 1x Universal expansion slot
142 (W) x 101.2 (D) x 41.5 (H) mm
UL listed

Supports 10th Gen Intel® Core™ Desktop processors
AI solution for Transportation
Max. 128GB RAM
2x Gbit Lan M12
4x USB
2x SIM Slot
2x 2.5" SSD , RAID 0/1/5
1Xmicro SSD
1x HDMI
1x DVI-D
1 x RS-485, 1 x RS232/485 Isolated
M12 connectores
Up to 10x GbE ports (8x with PoE capability)
10G LAN (need to be ordered special)
Supports Intel® Movidus Vision Acceleration M.2 modules
Supports Wi-Fi 6 CNVi, dual WWAN channels
1x USB Type-C with graphics output for quick setting and diagnostics
EN50155 (2021) / EN45545-2 certified

CPU support gen.6/7 Intel® Xeon® E3/ 6th & 7th generation Core™ i7/ i5/ i3 processor in LGA1151 socket
Fanless design
4 x 802.3af Gigabit PoE ports by M12 connectors
Support RTC battery service window
2 x mPCIe slots for optional Wi-Fi/ BT/ 3G/ 4G/ GPS modules
1 x M.2 (NGFF) M-Key(2242) socket for storage module
1 x SIM card sockets
Dimensions (W x D x H) 225 x 292 x 90 mm
Wide temperature range from -40°C to 70°C
Wide range DC power input (9~36V)
EN-50155 certified

CPU Xeon, i9,i7,i5,i3 Gen.10
2x LAN
6x USB 3.2
2x USB 2.0
2x COM
1x PS/2
1x HDMI 4096x2160 at 30Hz
2x DisplayPort 4096x2304@60Hz (according to CPU specifications)
1 x VGA
3 x full-size Mini-PCIe connectors
2 x SIM slots
4 x CMI interface: different I/O moduls see picture
1 x CFM IGN Interface need to be ordere separately
2 x PCI/PCIe slots
Vibration/Shock MIL-STD-810G
CE, UKCA, FCC, ICES-003 Class A, EN50121-3-2 (Rail), IEC/EN 62368-1
REQUEST about additional information with details

CPU: Intel N3520

1 x SO-DIMM DDR3L Slot, Support 4GB/8GB DDR3L 1333

Supports PXE (network boot)

Audio: 1 x Audio, 1 x SPK

1 x VGA

1 x HDMI

4 x USB 2.0

2 x USB 3.0

2 x RJ45 Intel Giga Lan

2 x RS232/422/485 (BIOS Select)

1 x MSATA to MSATA SSD

1 x Sata3.0 for SSD/HDD

Sim Socket, 1 x micro SIM slot with PUSH function (on the side)

Fanless

TPM

175*125*37mm,

wall bracket

Net 0.5 kg, gross 1.5 kg

12V DC

OS Support: Windows 7/Windows 8/Windows 10/ Windows 11/ Linux

Intel® 12th Gen Alder Lake-S Core™ i9/i7/i5/i3 CPU's (max 65 W TDP)
2 x DDR5 SO-DIMM Up to 64GB RAM
HDMI / DP / DVI-I
2x 1GbE LAN
4x RS-232/422/485
2x 2.5" SATA HDD/SSD Bay
1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
Option: I/O Module Expansion
Option: Power Ignition Sensing & PoE Function
DC input 9 - 48VDC, 3-pin Terminal Block
Wide Operating Temperature -40°C to 70°C
Railway approved
Certification: CB, IEC, EN 50155 (EN 50121-3-2 Only)

Intel® 13th/12th-Gen Core™ 35W/ 65W LGA1700 CPU
SODIMM MAX. 32GB DDR4 3200
2x 2.5GbE
4x USB3.2 Gen 1 with screw-lock
1x M.2 2280
Gen4 x4 NVMe
1x 3.5"/2.5" SATA HDD/SSD storage
4-CH isolated DI and 4-CH isolated DO
TPM 2.0
VGA + DP dual display outputs
-25°C to 60°C fanless operation (Need special RAM and SSD)
Compact 212 x 165 x 80 mm
Can be wall and DIN mounted needs to be ordered special
1x3-PIN terminal 8~35Vdc remote ON/OFF

Intel Celeron J6412 Quad Core 2.0GHz

1x DDR4L 3200MHz Max up to 32GB

3x GbE LAN Intel® 225-V

2x RS-232/422/485

1x M.2 SATA, 1x 2.5" SATA

1 x DP, 1 x HDMI

WiFi/Bluetooth/4G/5G (add on)

DC input 9V~36V

Working tempeture -20°C ~70°C

Windows 10 / 11, Linux

Fanless
Core i5 LOW POWER
Chipset QS77
AMI BIOS ACPI support
1x SO-DIMM RAM DDR3L max 8GB
TDP 15W
Grafik HD4400 1920x1080 HD
2x HDMI
2 x RJ45 Intel Gbit Lan PXE support
6 x RS232
4 x USB2.0
4 x USB3.0
1 x M-SATA
1 x mini PCIE half for Wifi/3G/4G
1 x SATA til 2½"HDD/SSD
0~+70 Centigrade (32°F~140°F)
12Vdc
234x150x50mm
Aluminum
OPTION: Wifi
OPTION: SIM SLOT
OS Support: WIN 7, WIN 8, WIN10, Linux
CE, ROHS

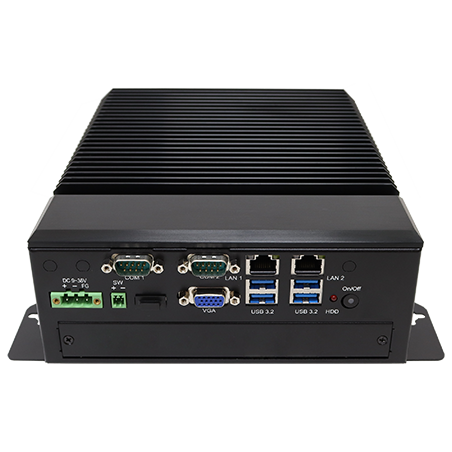

Built-in fanless PC with a focus on vision solutions

9th generation Intel Core i7/i5/i3 processors

Q370 Chipset

Supports DDR4 (2666MHz) SO-DIMM up to 64GB

2 x RJ45 Gbit, (Pepared for Wifi, not included standard)

1x RS232/422/485 DB9, (COM1 , Default RS232), 1 x RS232 DB9 (COM2)

2 x 2½" SATA3 HDD/SSD

VGA, HDMI

1x GPU extension max 75Wattx

Supports comprehensive GPU card (75W) expansion

Wall bracket / DIN bracket

Flexible expandability through I/O module design

Power input 9~36DC

Dimensions 222x190x77 (depending on model/version)

Other models are available with PCIex expansion and PCI expansion

IP67 waterproof GPU computer with NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200
Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
Patented waterproof 2U 19" chassis for rack or wall-mount*
Guaranteed non-throttling GPU performance up to 62°C ambient
Up to eight 802.3at Gigabit PoE+ ports via M12 X-coded connectors
VGA, USB 2.0 and COM ports via M12 A-coded connectors
8~48V wide-range DC input with built-in ignition power control
MIL-STD-810G and EN 50155 certified
*R.O.C Patent No. I697759, *CN Patent Pending
