Siemens 6AV7862-2BE00-0AA0

DEMO MODEL - minor impact damage in the aluminum frame (corners)

19" HMI monitor with LED backlight 24V DC
Panel mounting
Widescreen display
Resolution: 1366 x 768
2 x USB 2.0
1 x VGA
1 x Display port (DP)
1 x USB touch interface
IP65 (front)
LED backlight
Touch: analog resistive
Mounting: VESA 100 x 100
Supply voltage: 24V DC
Operating temperature: 0 - 45 degrees
Dimensions: 473 x 297 mm
Mounting plate dimensions: 455 x 279 mm

2 x BNC input
1 x VGA input
1 x S-Video input
2 x BNC output
1 x HDMI
Resolution 1920 x 1080
Contrast 1000: 1
Brightness 250 cd / m2
Designed for 24-hour continuous monitoring of the monitoring system
Industrial quality of metal enclosure
PIP & PBP function
3DNR with noise suppression
Remote ID addressing of remote control
Anti-burn function with automatic image movement
12Vdc supply

19 "LCD metal monitor, IP66 front, IP20 back side
1280 x 1024
300 nits
2000: 1, 5: 4
LED backlight
Response time: 20ms
view angle: 178 ° / 178 °
1 x RS-232 (DB9 male)
1 x DVI-D (29-pin DVI-D female)
1 x VGA (15-pin D-sub femlae )
1 x RS232 / 422/485 (software selectable terminal block)
Capacitive touch (PCAP), 4 Points
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
- 15 to 55 ° C (5 to 131 ° F)
429 x 387 x 75 mm
Weight: 7,800 g
RoHS, CRoHS, WEEE
Optional: RS-232: TxD, RxD, RTS , CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx-, Rx +, Rx-, GND

19 "LCD metal monitor, IP54 & nbsp; front,
1280 x 1024
300 nits, 2000: 1, 5: 4
LED backlight
Response time: 20ms
viewing angle : 178 ° / 178 °
1 x RS-232 (DB9 male)
1 x DVI-D (29-pin DVI-D female)
1 x VGA (15-pin D-sub female)
1 x RS232 / 422/485 (software selectable terminal block)
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55 ° C (5 to 131 ° F)
429 x 387 x 75 mm
Weight: 7,800 g
RoHS, CRoHS, WEEE
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx- , Rx +, Rx, GND & nbsp;

19 "TFT metal monitor LED backlight, IP66
1280 x 1024
350 nits, 1000: 1, 5: 4
Response time: 5ms
viewing angle: 170 ° / 160 °
3 x BNC
2 x DVI-I (29-pin DVI-D female)
1 x VGA (15-pin D-sub femlae)
1 x RS232 / 422/485 (software selectable terminal blocks)
100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55 ° C (5 to 131 ° F)
weight: 9,700 g
483 x 444 x 82 mm
Panel mounting
RoHS, CRoHS, WEEE
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx- , Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx-, Rx +, Rx-, GND

22" LCD skærm med LED baggrundslys
HDMI
VGA
Responstid: 5 ms
192x1080
energiforbrug: 32 kWt
Strømforbrug: 22W
Format: 16:9
Plug and play

24 "LCD screen with LED backlight
DVI
VGA
Response time: 5 ms
192x1080
energy consumption: 32 kWt
Power consumption: 22W
Format: 16: 9
Pivot rotation
1 x VGA cable included
Power supply: AC 120/230 V
OS support: Windows 8.1
Plug and play

LCD Screen / TFT Active Matrix
16: 9
1 x VGA
1 x HDMI
1 x Display Port
1 x Audio In / Out
Full HD (1080p ) 1920 x 1080
Pixel Pitch 0.277 mm
250 cd / m²
30000000: 1 (dynamic)
Color support 16.7 million colors
Response time 3 ms (gray to gray)
Vertical refresh rate 56 - 76 Hz
Horizontal refresh rate 30 - 83 kHz
Horizontal viewing angle 170
Vertical viewing angle 160
Backlight technology: LED backlight
Flicker Free technology.

27 "4K UHD TFT LCD Flat Panel
Metal Cabinet With Aluminum Frame
1 x USB-A input & nbsp;
1 x HDMI A (HDMI2.0) input
1 x HDMI2 input & nbsp;
1 x Display port input
1 x PC input & nbsp;
1 x VGA input (D-Sub 15 pin)
1 x DVI-D input
1 x PC Audio input (3.5 phone jack)
1 x RS232 input (D-SUB 9pin)
1 x earphone audio output
Nits: 250 cd / m²
Resolution: max 3840 x 2160
16: 9 format
LED backlight
PIP / PBP function
Built-in 2 x 2W speaker
Mount: VESA75 / 100
Touch (optional)
Supply: DC 12V / 5A

23.8 "4K UHD TFT LCD Flat Panel
Metal Cabinet With Aluminum Frame
1 x USB-A input & nbsp;
1 x HDMI A (HDMI2.0) input
1 x HDMI2 input & nbsp;
1 x Display port input
1 x PC input & nbsp;
1 x VGA input (D-Sub 15 pin)
1 x DVI-D input
1 x PC Audio input (3.5 phone jack)
1 x RS232 input (D-SUB 9pin)
1 x earphone audio output
Nits: 310 cd / m²
Resolution: max 3840 x 2160
16: 9 format
LED backlight
PIP / PBP functio
Built-in 2 x 2W speaker
Mount: VESA75 / 100
Supply: DC 12V / 5A

Optional touch

17 "IP66 all around the LCD panel monitor
LED baggrudslys x | 1 | 1 x HDMI jack
12VDC
temperature 0 ° C ~ 50 ° C
automatic brightness function ( day / night)
Option - acquisitions: available with touch - choose between resistive, capacitive, infrared
Option - acquisitions: available with protected glass - with UV protection

19" LED Screen
ECDIS Color Screen
IP66 Front
IP54 Back
1 x VGA
1 x Jack Audio
1 x 9-36V DC Power Supply
Widescreen
Anit-shock and vibration design
LED background lighting
Mounting: VESA 200/400
Optional: Built-in switch
VERSA 200/400

17" TFT monitor with LED back light
ECDIS color display
IP66 Front
IP54 Back
Optional: built-in touch (Resistive, capacitive, infrared touch)
1 x VGA
1 x Jack plug
1 x 9-36V DC power supply
Wide screen
Anit shock and vibration design
LED backlight
Mounting: VESA 75

19 "TFT monitor with LED back light
ECDIS color display
IP66 Front
IP54 Backside
1 x VGA
1 x Jack

1 x 9-36V DC power supply < br> Wide Screen
Anit-shock and Vibration Design
Mounting: VESA 100
Optional: Built-in Touch

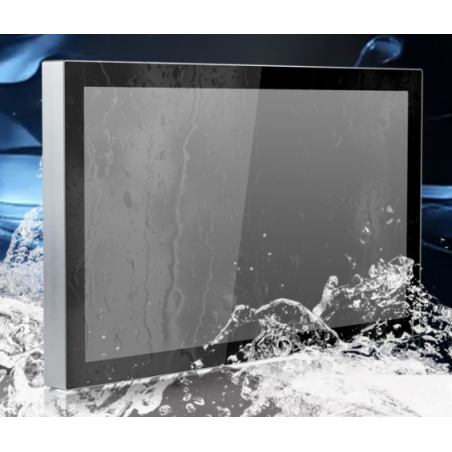

17" IP66/IK69 360° industrial touch monitor
5:4 format - 1280 x 1024
400 nits
Aluminum alloy panel
IP66 (water resistant)
Multi-touch (projected capacitive touch)
LED backlight
1 x HDMI input
1 x USB (touch)
Supply voltage: 12-24VDC 25Watt
Temperature -20 - + 70°C
VESA 100 mounting
Dimensions: 393 x 325 x 40 mm
Weight: 4.5 kg

19" LCD monitor
Resolution: 1280 x 1024
5:4 format
IP65 front
250 nits
USB resistive Touch
1 x DP
1 x VGA
1 x HDMI
1 x USB to Touch
1 x Audio Input
for Panel mounting OPTION: wall/rack or desktop mounting
Dimensions: 482 x 55 x 380mm (with frame)
Cutout dimensions: 407.1 x 334.6mm
24V DC screw type
Weight: 6kg

Screen Size: 23 "
Screen resolution: 1920 x 1080 - 16: 9 format
TFT technology: AD-PLS
Touch Screen: No
Supported Colors: 16.7 million colors
the image brightness: 250 cd / m2
Contrast Ratio: 1000: 1
LCD with LED backlight
Pixel pitch: 0.2655 mm | Response time: 5 ms

19 "TFT IP66 Monitor With Steel Cabinet
Resolution 1280 x 1024 - 5: 4 Format
350 Nits (kan leveres med 1000Nits, (Contact our sales depatment)
1 x VGA M12, 12-pin Cable With Waterproof connector
1 x Waterproof HDMI With waterproof connector
1 x OSD on backside
1 x M12 for USB touch with waterproof connector
1 x Power input 9-36V DC, with touch on / off button
VESA 75 x 75 YOKE mounting Option: Available with capacitive touch with USB interface

17 "waterproof IP66 all around closely monitor steel cabinet
Projected Capacitive Touch (USB)
Resolution 1280 x 1024 to 5: 4 format
350 Nits
1 x VGA M12, 12-pin cable with waterproof jacket
1 x waterproof HDMI with waterproof jacket
1 x buttons on the back
1 x M12 USB touch with waterproof jacket
1 x Power input 9-36V DC, with on / off button on the side
VESA 75 x 75 mounting
Option acquisitions: available with capacitive touch with USB interface
Option acquisitions: available with 316 stainless steel cabinet

19 "LCD TFT, readable in strong sunlight
High brightness
SXGA 1280 x 1024 - 5: 4 format
LED backlight
VGA + DVI
VESA 75/100
1600 nits
