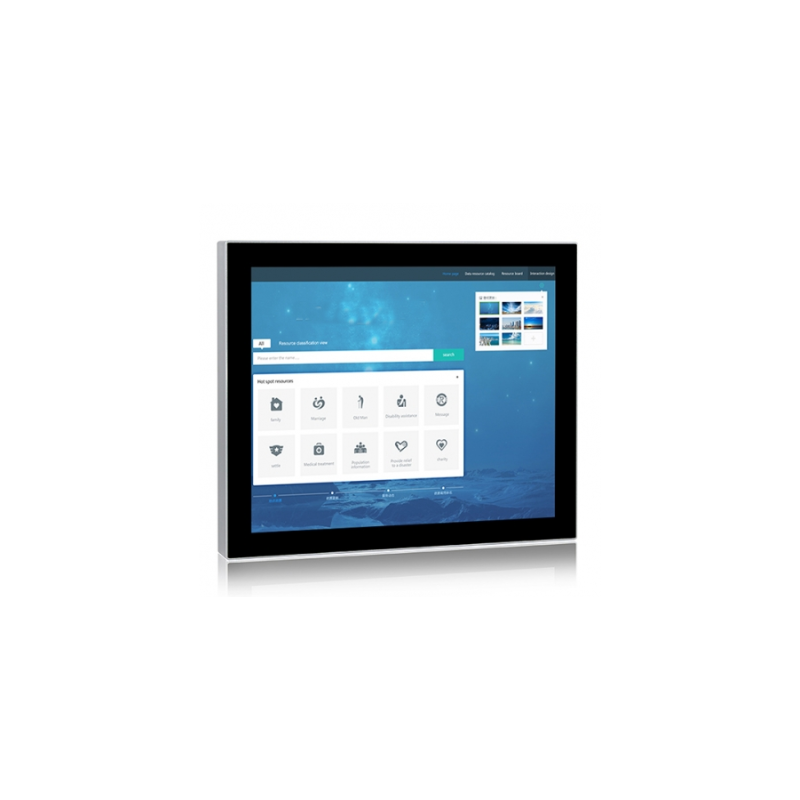

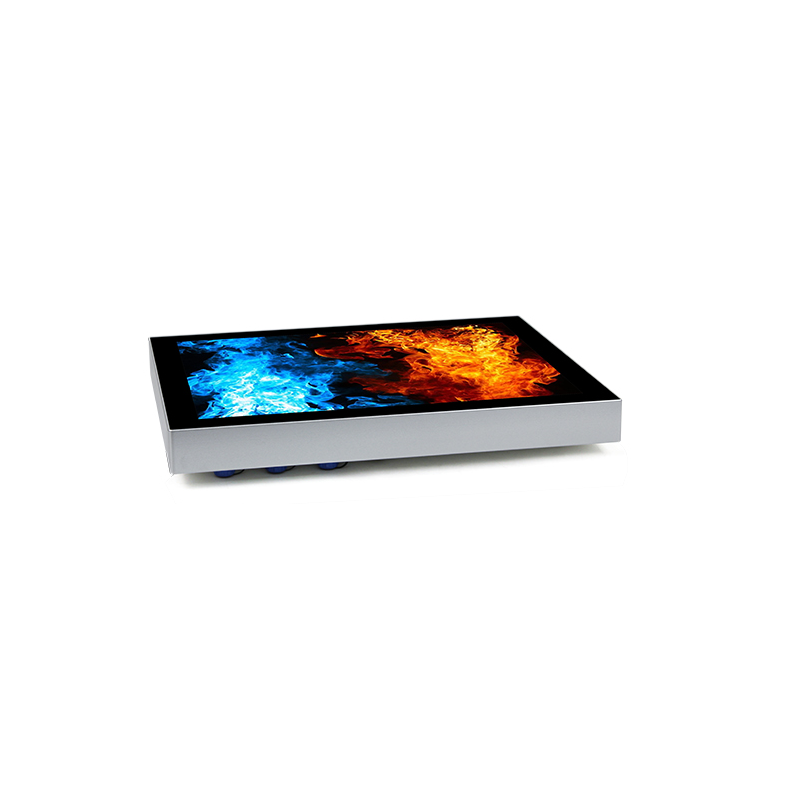

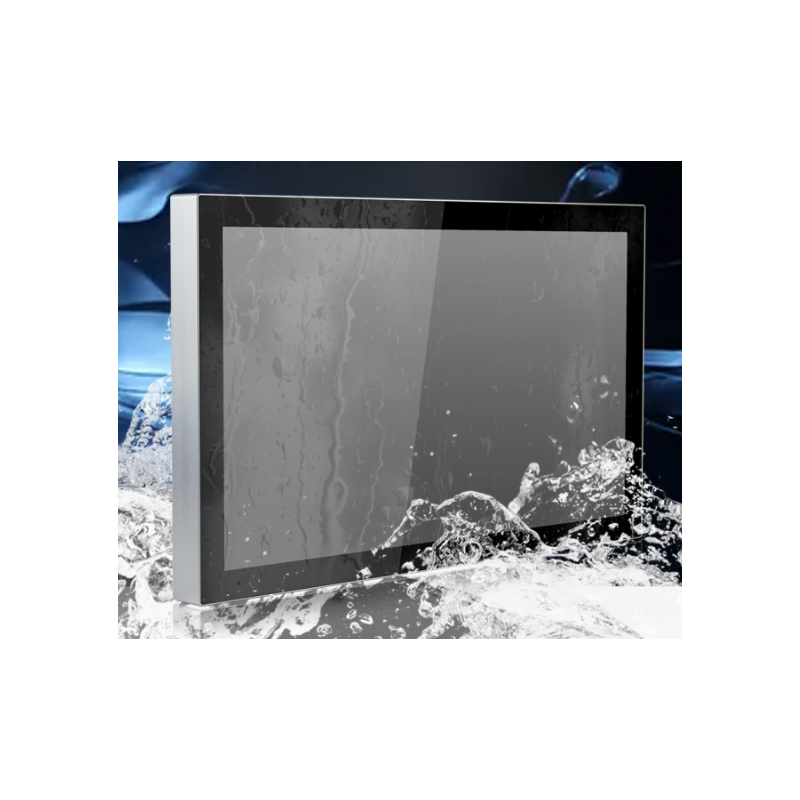

17" IP66/IK69 fully sealed Industrial monitor, 1280 x 1024, 400nits, HDMI, Multi-PCAP touch, 5:4 format

Industrial grade Display in steel cabinet with IP67 connections
15" TFT LCD screen 1024 X 768 - 4:3 format
300 nits and with vandal-proof glass
Housing: Robust IP65 sealed in stainless steel
For VESA 75 wall mounting
Operating temperature: 0° to 50°
IP65 sealed on all 6 sides.
All I/O ports and connectors (protective caps) are military IP-67 waterproof
USB Resistive Touch
9 - 36VDC supply voltage
Optional extra purchase: 1000nits high bright, -30°C to +65°C, Composite

17" LCD Monitor
Resolution: 1280 x 1024
4:3 Format
IP65-Front
250 Nits
USB Resistive Touch
1 x DP
1 X VGA
1 x HDMI
1 x USB to Touch
Panel / Wall / Rack / Desktop Mounting (Accessories)
Dimensions: 410 x 58 x 338.3 mm
Supply voltage: 24VDC or 230VAC (option)
Weight: 4.45kg without packaging, 6.71kg packed

21.5 "Stainless Steel Screen
IP66 Near Standard 250 Nits (Available with 1000nits On Ordering)
M12 Connector VGA / HDMI
Speaker IP65 2W
M12 Connecotrs
Projcted Capacitive Touch
OSD on back
Vesa Mount 100x100mm (Option Yoke Mounting)
DC 9 ~ 36V
571x362x55mm

10.1" TFT 1280x800 (16:10)
Front panel IP66 Standard / IP69K Option
Aluminum cabinet
VGA, DVI, HDMI and DP Input
Supply voltage: DC 9 ~ 36V
Contrast : 800:1
Brightness: 350 Nits Standard / 1000 Nits Option
Touch Via USB: Projected Capacitive Standard / Resistive Option / No Touch Option
Touch Via RS232: Option
VESA 100 and Panel Mount
Dimensions: 285 x 189 x 48.9mm
Weight: 1.9 kg
Operating temperature: 0 ~ +50°C Standard / -20 ~ +60°C Option

10.4 "Marine TFT LCD MONITOR
Full IP67
Resolution 1024 x 768 - 4: 3 Format
1 x VGA
1 x DC Power
1 x S-Video
1 x Composite
1 x J2: Signal Pins (D38999 / 24WD35PN) For military connector
5-wire resistive touch screen
Power input: 12-36V DC Input
For VESA and panel mounting

12 "TFT 4: 3 LCD Resistive Touch
50,000 Hrs LED Backlight Lite
Resolution Up to 1024 x 768
1x VGA, 1X DVI-D, 1x DisplayPort
500 nits Brightness
Designed with aluminum Die-cast Front Frame
IP65 Compatible front panel
Option: Projected Capacitive Touch
9 ~ 48VDC Via 3-pin Terminal Block
Panel, Vesa Mount

12.1” Stainless Steel Display
standard 450/500 nits OPTION: 1000nits
Oprtion: Optical Bonding for UV protection
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Option! Resistive Touch, Projected Capacitive Touch, and Glass
Touch Interface USB
Touch on/off Button on the Side Edge for Hygienic Cleaning
VESA mount 75x75, OPTION: Yoke mount
0~50°C / -20~60°C (option)
Power input 9~36Vdc (1xM12 3-pin Connector) 8W/12W (high nits display)
Size 335x365x53mm

17 "TFT monitor - stainless steel cabinet
full IP67
Touch
1280 x 1024 - 5:4 format
Brightness 300 cd/m²
VGA, DB15HD
VESA75
450 x 378 x 62 mm (H x W x D)
Weight: 7.5 kg
Supply voltage: 12VDC
230V AC / 12V DC / 1.5A PSU incl.
Special cables with IP67 sealed connectors are included.
