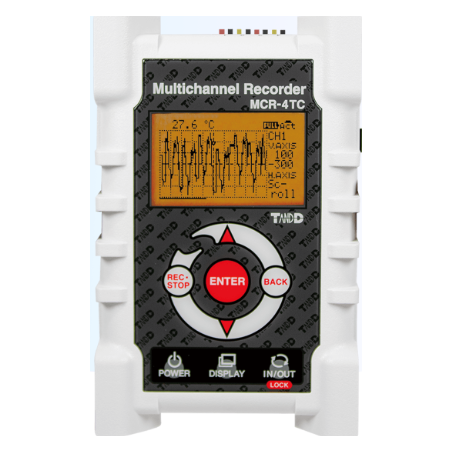

Temperature logger with 4 channels

For Thermocouple sensors

K: -270 - + 1370°C

J: -210 - +1200°C

Temperature: -270 - +400°C

S: -50 - +1760°C

R:: -50 - +1760°C

Internal memory for 960,000 loggings

Expand memory with SD card

LCD Display

Log interval: 100mSec to 60min

Accuracy, excluding sensor: +/-0.5°C - 1.5°C

USB 2.0 interface

Battery operation: 2 x AA batteries (60 days)

USB 5VDC operation

Dimensions: 120 x 75 x 32 mm

Weight: 140g

Operating temperature range: 0 - +50°C

Measurement data via mobile network
for Nano SIM card
protocols: HTTP, HTTPS, FTP, SNTP, SMS
collector measurement data from wireless T&D loggers
can serve up to 20 T&D loggers
Free T&D WebStorage Service - Cloud Based
Notifications with SMS by measurement limit
Setup with Bluetooth or USB
Battery operation Supplement. Powered from 9 - 38VDC
Gradual data collection from units of measurement Up to 150meter
SS relay output and digital input
target: 96 x 66 x 39 mm
Weight: 135g

Temperature, humidity, UV. Lux data logger with memory
measurement data for PC via USB port
measurement data for PC via RS232 Port
8,000 measurements per Type in memory with date and time stamp
Luminance: 0 - 130,000lux
UV intensity: 0 - 30mW / cm2
External sensors
Free Cloud Service: TD Webstorage for data collector
LCD Display Displays current measurements
PC Software: Tools and presentation included
Dim: 78 x 55 x 18 mm
Battery type: AA X 1

1 channel temperature data logger - wireless with Low Energy Bluetooth 4.1
Measuring range -199°C to +600°C with pt100 / pt1000
Measuring range -199°C to +1760°C with Termo Coupler Feel
Operating Temperature: -40°C & to + 80°C
IP30 - not waterproof
(-25 to 80°C during wireless communication)
Accuracy is average. ± 0.3°C
Measuring Range: 15 Choices from 1 Sec to 60 Minutes
Option between Endless or Memory is Full
Memory: 16,000 Measurements with Date and Timestamp.
LCD Display, Displays Measurements, Warning, Battery Life, etc.
With Lithium Battery
Dimensions H: 62mm × W: 47mm × D: 19mm
Battery Life: Approx. 1 month to 1.5 years
Purchase temperature sensor

1 channel temperature data logger - wireless with Low Energy Bluetooth 4.1
Measuring range -60°C to + 155°C - only temperature sensor
Operating temperature: -40°C to + 80°C - measurement unit + sensor
(-25 to 80°C during wireless communication)
Accuracy is average. ± 0.3°C
Measuring Range: 15 Choices from 1 Sec to 60 Minutes
Option between Endless or Memory is Full
Memory: 16,000 Measurements with Date and Timestamp.
LCD Display, Displays Measurements, warning, battery life, etc.
With Lithium Battery
Dimensions H: 62mm × W: 47mm × D: 19mm
IP67 w/sensor in place.
Sensor is IP68 proof
Battery life: approx. 1 month to 1.5 years

1 channel temperature data logger - wireless with Low Energy Bluetooth 4.1
Measuring range -40 ° C to + 80 ° C
Operating Temperature: -40 ° C to + 80 ° C
(-25 to 80 ° C during wireless communication)
Accuracy Average. ± 0.5 ° C
Measuring range: 15 choices from 1 sec to 60 minutes
Choice between endless or memory is full
Memory: 16,000 measurements with date and time.
LCD display, displays measurements, Warning, Battery Life, etc.
With Lithium Battery
Dimensions H: 62mm × W: 47mm × D: 19mm
IP67 Close
Battery Life: Approx. 1 month to 1.5 years

Power supply for LOG-WL500GSM
100 - 230vac for 6VDC
Cable length: 1.8m
Connector: Power Jack 3.5 / 1.3mm

Accessories: Plastic bracket with screw holes for data logger LOG-WLXX with large battery

Wireless Temperature Logger with memory
Sending measurement data to the data collector (base station) at 870MHz
Distance between the data logger and data collector up to 150 meters
Data Logger is not on-line
8,000 measurements per type of the memory with date and time stamp
Luminance: 0 - 130.000Lux
UV intensity: 0 - 30mW / cm ²
External sensors
Free Cloud service: TD WebStorage for Data collector
LCD display shows current measurements
PC software: tools and presentation included
Data Logger setup with Data collector Optical
Dimensions: 78 x 55 x 18 mm
Fixed antenna: 60 mm
Battery type: AA x 1

Wireless Temperature and moisture præsicions logger with memory
Sending measurement data to Data Collector (Base Station) at 870MHz
Distance between Data Logger and Data collector up to 150 meters
Battery operation up to 10 months at an upload per day
Data Logger is not on-line
2 x 8,000 measurements in memory with the date and timestamp
Accuracy of measurement: max. + / - 0.3 ° C range depending
Removable external sensor. Close O-ring
Free Cloud service: TD WebStorage for Data Collector
LCD display shows current measurements
PC software: tools and presentation included
Data Logger setup with Data Collector Optical
Dimensions: 62 x 47 x 19 mm
Fixed antenna: 24 mm
Battery type: LS14250 x 1

Wireless Temperature Logger with memory
Bluetooth APP - T&D Thermo
Sending measurement data to Data Collector (Base Station) at 870MHz
Distance between Data Logger and Data collector up to 150 meters
Battery operation up to 10 months at an upload per day
Data Logger is not on-line
16,000 readings in memory with date and time stamp
Accuracy: +/- 0.5°C
Free Cloud service: TD WebStorage for Data collector
LCD display shows current measurements
PC software : tools and presentation included
Data Logger setup with Data collector Optical
Dimensions: 62 x 47 x 19 mm
Fixed antenna: 24 mm
Battery type: LS14250 x 1

Temperature and moisture feel to log-wl5xx

Battery for log-wlxxx series
in normal battery change Log-data not

Verify that e.g. goods transport has had the desired temperature
Suitable for quality documentation
Super robust design - for harsh environments
Place the data logger next to the item and let it document the transport
EN12830 approved for food
Memory for 16,000 measurements with date and time
Measuring interval: from 1 second to 1 hour
Log data is transmitted optically to the Data Collector
Find Data Collector under Accessories
No physical connection - thus IP67
Free presentation software, tools and Cloud
LCD display and LED alarm when the limit is exceeded
Measuring range: -40 - +80°C +/-0.5°C accuracy
Battery operating time: 2 - 4 years
Dimensions and weight: 62 x 47 x 19 mm, 45 grams
Battery: 1 x LS14250

Base unit with display and optical communication
Jig for programming T&D data loggers
Jig for collecting stored log data from T&D data loggers
USB connection to PC
Free software for PC
Battery operation - Operating time approx. 100 days
OPTIONAL: AC adapter is acquired 6VDC, 3.5 / 1.5 mm plug
Dim: 125 x 58 x 26 mm
Weight: 90 g

Dataopsamler med display og USB
Kun til T&D BLÅ SERIE Dataloggere

Wireless data logger for humidity, temperature and CO2 measurement
Additional purchase Data collector for retrieving measurement data.
Data collector can be connected to T&D Cloud or PC
Operating time on battery alone is 2 days.
Additional power supply: LOG-DC5V
Wireless transfer of data to Data Collector

Impulse and voltage logger with cable shoe cable
cannot be included in TD white series

Wireless Temperature Logger with memory
Bluetooth T&D APP
For Pt100 and Pt1000 3-wire
Temperature: -199 - + 600°C, +/-0.3°C + 0.3%
Sends measurement data to Data Collector (Base Station) on 870MHz
Distance between Datalogger and Data Collector up to 150 meters
Battery operation up to 10 months with one upload per day
Data loggers are not on-line
16,000 measurements in memory with date and time stamp
Removable external terminal block. Close with O-ring
Free Cloud service: TD WebStorage for Data Collector
LCD display shows current measurements
PC software: tools and presentation included
Data logger setup with Data Collector Optical
Dimensions: 62 x 47 x 19 mm
Fixed antenna: 24 mm
Battery type: LS14250 x 1

Wireless Temperature Logger with memory
Med Bluetooth. T&D THermo APP
Sending measurement data to Data Collector (Base Station) at 870MHz
Distance between Data Logger and Data collector up to 150 meters
Battery operation up to 10 months at an upload per day
16,000 measurements in memory with the date and time stamp
Accuracy of measurement: 0.05mA + 3% at a measuring range from 10 to 40 ° C
Removable external terminal block. Close O-ring
Free Cloud service: TD WebStorage for Data Collector
LCD display shows current measurements
PC software: tools and presentation included
Data Logger setup with Data Collector Optical
Dimensions: 62 x 47 x 19 mm
Battery type: LS14250 x 1
